31625 (524) - Toro 24" Snow Thrower (SN: 006000001 - 006999999) (1976) ENGINE ASSEMBLY (MODEL NO. 31625) Parts Diagram

24" Snow Thrower

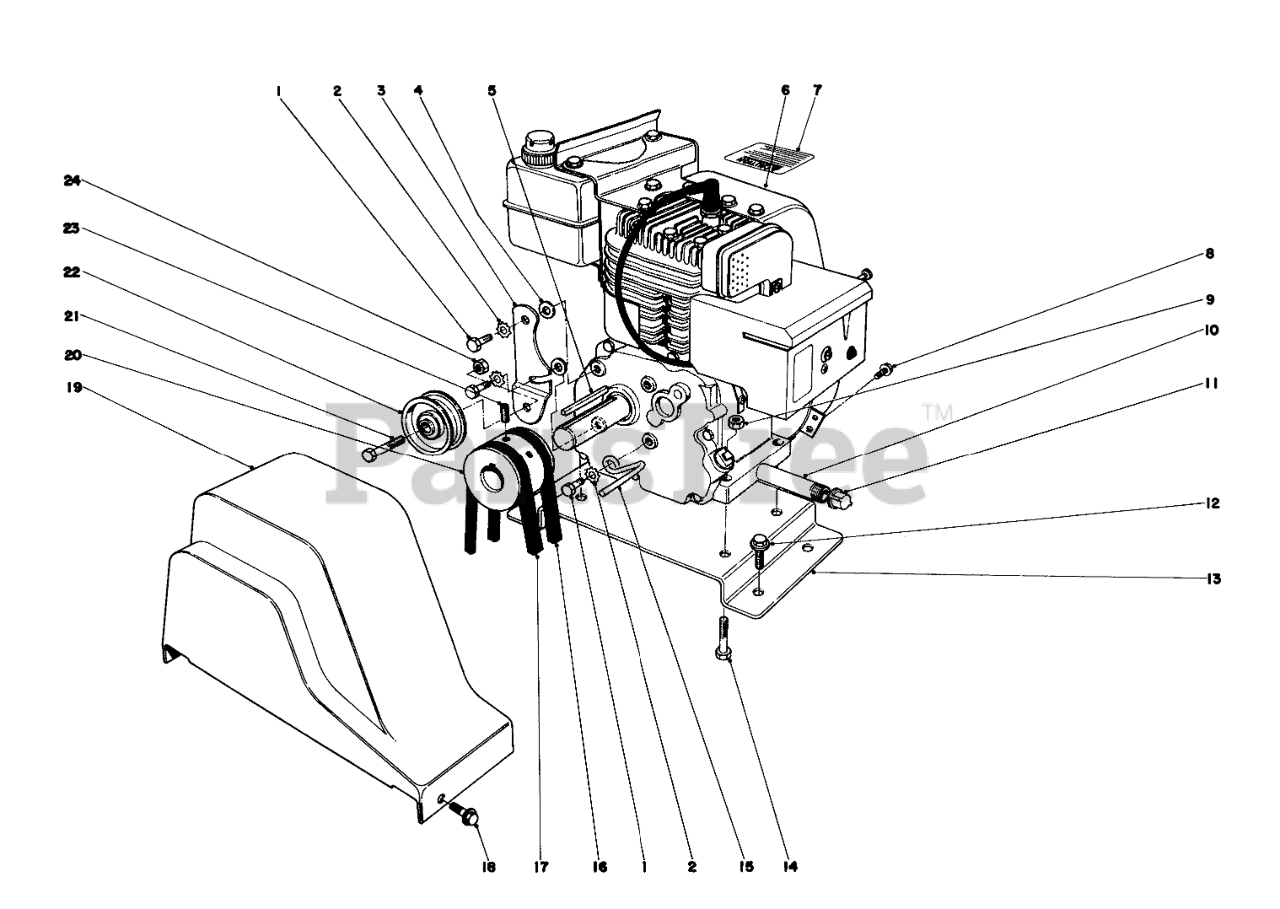

ENGINE ASSEMBLY (MODEL NO. 31625) Parts Diagram

  • Title

1

Toro 3210-2

SCREW-HH

$1.49

$

In Stock, only 2 left!

0

2

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 7

0

3

Toro 20-1800

ENGINE IDLER ARM

$

$

Not available

4

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

5

Toro 5-0930

KEY

$14.99

$

Usually ships in 3-6 days

0

6

Toro 221496

Engine

$

$

Not available

7

Toro 22-9990

Decal Instruction

$

$

Currently unavailable

8

Toro 12-3270

SCREW

$3.49

$

In Stock, only 2 left!

0

9

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

10

Toro 289-34

NIPPLE-PIPE

$34.99

$

Usually ships in 3-6 days

0

11

Toro 288-2

CAP-PIPE

$16.99

$

In Stock, only 1 left!

0

12

Toro 32144-15

SCREW-HHFTF

$9.49

$

Usually ships in 3-6 days

0

13

Toro 25-5990

ENG MTG PLATE R

$

$

Not available

14

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 17-5530

BELT RETAINER

$

$

Not available

16

Toro 20-1820

V-BELT

$22.99

$

In Stock, only 2 left!

0

17

Toro 17-0850

V-Belt
(Superseded to 26-9670)

$25.99

$

In Stock, only 1 left!

0

18

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 12

0

19

Toro 20-1830

BELT GUARD

$

$

Not available

20

Toro 214100

Pulley

$

$

Currently unavailable

21

Toro 323-29

SCREW-HH

$0.99

$

In Stock, Qty 7

0

22

Toro 3-4244

PULLEY-IDLER

$27.99

$

In Stock, only 3 left!

0

23

Toro 3246-14

Screw-Set
(Superseded to 3246-3)

$12.99

$

Usually ships in 3-6 days

0

24

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 20+

0

Toro 23-3790

Starter Kit
(Superseded to 38036)

Note: Optional equipment

$

$

Not available
