31625 (524) - Toro 24" Snow Thrower (SN: 006000001 - 006999999) (1976) Engine, Tecumseh Model No. Hs50-67074a (continued) (5 H.p. Snowthrower Model No. 31625) Parts Diagram

24" Snow Thrower

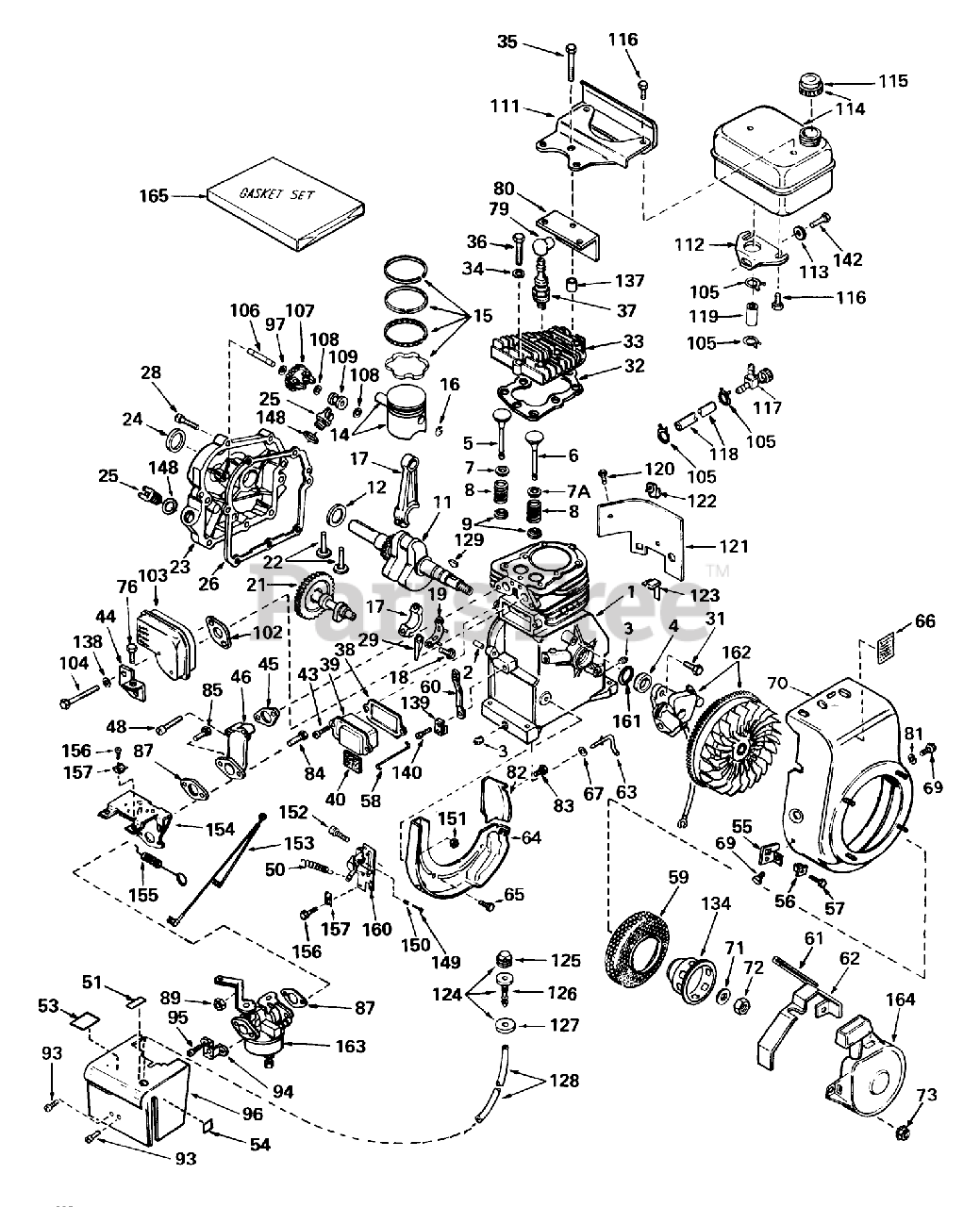

Engine, Tecumseh Model No. Hs50-67074a (continued) (5 H.p. Snowthrower Model No. 31625) Parts Diagram

  • Title

1

Toro 33674

Cylinder Assy. (Incl. Nos.2, 34)

$

$

Currently unavailable

2

Toro 26727

Pin-Dowel

$

$

Currently unavailable

3

Toro 27642

Plug-Drain, Oil (SQH 1/4-18)

$

$

Currently unavailable

4

Toro 32600

Seal-Oil

$

$

Currently unavailable

5

Toro 32644

Valve, Intake (Standard) (Incl. Nos. 7, 9 10)

$

$

Currently unavailable

5

Toro 32645

Valve, Intake (1/32" Oversize) (Incl. Nos. 7, 9 10)

$

$

Currently unavailable

6

Toro 29313B

Valve, Exhaust (Standard) (Incl. Nos. 8, 9 10)

$

$

Currently unavailable

6

Toro 29315B

Valve, Exhaust (1/32" Oversize) (Incl. Nos. 8, 9 10)

$

$

Currently unavailable

7

Toro 31671

Cap-Upper Valve Spring

$

$

Currently unavailable

7A

Toro 33678

Cap, Upper Valve Spg (Exhaust)

$

$

Currently unavailable

8

Toro 31672

Spring-Valve

$

$

Currently unavailable

9

Toro 31673

Cap-Valve, Spring
(Superseded to 742357)

$

$

Not available

11

Toro 33675

Crankshaft Assy.
(Superseded to 742418)

$

$

Not available

12

Toro 32323

Washer-Thrust

$

$

Currently unavailable

14

Toro 33562

Piston Pin Assembly (Incl. 2 of No. 14)(Std.)

$

$

Currently unavailable

14

Toro 33563

Piston Pin Assembly (Incl. 2 of No. 14)(.010 Oversize)

$

$

Currently unavailable

14

Toro 33564

Piston Pin Assembly (Incl. 2 of No. 14)(.020 Oversize)

$

$

Currently unavailable

15

Toro 33567

Ring Set-Piston Std.

$

$

Currently unavailable

15

Toro 33568

Ring Set-Piston .010 oversize

$

$

Currently unavailable

15

Toro 33569

Ring Set-Piston .020 oversize

$

$

Currently unavailable

16

Toro 20381

Ring-Retaining, Piston Pin

$

$

Currently unavailable

17

Toro 33661

Rod Assy., Connecting (Incl. Nos. 18 19)

$

$

Currently unavailable

18

Toro 32610

Connecting Rod Bolt

$

$

Currently unavailable

19

Toro 32609

Plate Lock

$

$

Currently unavailable

21

Toro 33158

Camshaft

$

$

Currently unavailable

22

Toro 27241

Lifter-Valve

$

$

Currently unavailable

23

Toro 32700A

Cover, Cylinder (Incl. Nos. 24, 25, 106 148)

$

$

Currently unavailable

24

Toro 27897

Seal-Oil

$

$

Currently unavailable

25

Toro 27625

Plug-Fill, Oil
(Superseded to 741498)

$

$

Not available

26

Toro 27677

Gasket-Cylinder Cover

Note: Not illustrated

$

$

Currently unavailable

28

Toro 30564

Screw

$

$

Currently unavailable

29

Toro 32654

Dipper-Oil

$

$

Currently unavailable

31

Toro 650489

Screw

$

$

Currently unavailable

32

Toro 33554

Oil Fill Tube

Note: Not illustrated

$

$

Currently unavailable

33

Toro 33016

Head Cylinder

$

$

Currently unavailable

34

Toro 26073

Washer

$

$

Currently unavailable

35

Toro 650694

Screw Hex Hd. Cap

$

$

Currently unavailable

36

Toro 6021

Screw

$

$

Currently unavailable

37

Toro 33636

Plug, Spark (J17LM or equiv.)

$

$

Currently unavailable

38

Toro 31619

Gasket Breather

Note: Not illustrated

$

$

Currently unavailable

39

Toro 31337

Breather Assembly (Incl. Nos. 52 84)

$

$

Currently unavailable

40

Toro 31410

Element-Breather

$

$

Currently unavailable

43

Toro 650128

Screw

$

$

Currently unavailable

44

Toro 33333

Bracket-Cover, Carburetor
(Superseded to 740348)

$

$

Not available

45

Toro 33673

Gasket-Intake

Note: Not illustrated

$

$

Currently unavailable

46

Toro 33691

Pipe-Intake

$

$

Currently unavailable

48

Toro 650664

Screw (1/4-20 x 1-19/32)

$

$

Currently unavailable

50

Toro 31426

Spring-Extension

$

$

Currently unavailable

51

Toro 34144

Decal-Primer

$

$

Currently unavailable

53

Toro 34129

Decal, Warning

$

$

Currently unavailable

54

Toro 34130

Decal, "Choke"

$

$

Currently unavailable

55

Toro 34126

Bracket

$

$

Currently unavailable

56

Toro 28545

Grommet

$

$

Currently unavailable

57

Toro 650643

Screw

$

$

Currently unavailable

58

Toro 32698

Link-Governor to Throttle

$

$

Currently unavailable

59

Toro 33668

Screen-Starter

$

$

Currently unavailable

60

Toro 32871

Lever, Governor

$

$

Currently unavailable

61

Toro 32576

Seal, Snowguard

$

$

Currently unavailable

62

Toro 34127

Guard-Starter

$

$

Currently unavailable

63

Toro 31334

Rod-Governor
(Superseded to 742339)

$

$

Not available

64

Toro 33342

Baffle-Blower Housing
(Superseded to 704713)

Note: In original production the speed control assembly is riveted to the blower housing baffle. Replacement speed control assembly includes screws and nuts for mounting. Replacement baffle has threaded holes.

$

$

Not available

65

Toro 650561

Screw (1/4-20x19/32)

$

$

Currently unavailable

66

Toro 31681

Decal, Instruction

$

$

Currently unavailable

67

Toro 28277

Washer-Flat

$

$

Currently unavailable

69

Toro 29212

Screw

$

$

Currently unavailable

70

Toro 33663A

Housing, Blower

$

$

Currently unavailable

71

Toro 650763

Washer-Spring

$

$

Currently unavailable

72

Toro 650607

Hex Nut

$

$

Currently unavailable

73

Toro 29752

Nut and Lock Washer (1/4-28)

$

$

Currently unavailable

76

Toro 650735

Screw (10-24 x 3/8)

$

$

Currently unavailable

79

Toro 610118

Cover-Spark Plug

$

$

Currently unavailable

80

Toro 33344

Baffle-Heat

$

$

Currently unavailable

81

Toro 650168

Washer

$

$

Currently unavailable

82

Toro 33341

Baffle-Extension

$

$

Currently unavailable

83

Toro 650701

Screw-Hex Washer Hd.

$

$

Currently unavailable

84

Toro 6202

DISCONTINUED
(Superseded to 83-3410)

$

$

Not available

85

Toro 650601

Screw-Fil. Hd.

$

$

Currently unavailable

87

Toro 26756

Gasket

Note: Not illustrated

$

$

Currently unavailable

89

Toro 29752

Nut and Lock Washer (1/4-28)

$

$

Currently unavailable

93

Toro 650257

Screw (8-32 X 5/16)

$

$

Currently unavailable

94

Toro 32398

Bracket-Choke

$

$

Currently unavailable

95

Toro 28820

Screw (10-32 x 1/2)

$

$

Currently unavailable

96

Toro 34134

Cover, Carburetor

$

$

Currently unavailable

97

Toro 30590A

Washer-Flat

$

$

Currently unavailable

102

Toro 33670

Gasket-Exhaust

Note: Not illustrated

$

$

Currently unavailable

103

Toro 33697

Muffler

$

$

Currently unavailable

104

Toro 650327

Screw-Fil. Hd.

$

$

Currently unavailable

105

Toro 26460

Clamp-Line, Fuel

$

$

Currently unavailable

106

Toro 30574

Shaft-Governor

$

$

Currently unavailable

107

Toro 30591

Governor Gear ASM

$

$

Currently unavailable

108

Toro 29193

Ring-Retaining

$

$

Currently unavailable

109

Toro 30588A

Spool-Governor

$

$

Currently unavailable

111

Toro 28371A

Bracket, Fuel tank

$

$

Currently unavailable

112

Toro 32762

Bracket, Fuel Tank Lower

$

$

Currently unavailable

113

Toro 650675

Washer

$

$

Currently unavailable

114

Toro 33120

53023/VAR.10/16HP O

$3.23

$

Usually ships in 3-6 days

0

115

Toro 30998B

Cap, Fuel

$

$

Currently unavailable

116

Toro 650665

Screw (1/4-15x7/8)

$

$

Currently unavailable

117

Toro 32961

Valve-Shut Off

$

$

Currently unavailable

118

Toro 30705

Line-Fuel

$

$

Currently unavailable

119

Toro 29774

Line-Fuel (8.62)

$

$

Currently unavailable

120

Toro 650128

Screw

$

$

Currently unavailable

121

Toro 29745

Extension-Blower

$

$

Currently unavailable

122

Toro 27275

51004 GIL ROTARY TI

$3.23

$

Usually ships in 3-6 days

0

123

Toro 29443

Clip-Wire

$

$

Currently unavailable

124

Toro 32182

Primer Assy. (Incl. Nos. 89, 90 91)

$

$

Currently unavailable

125

Toro 32183

Bulb, Primer

$3.23

$

Usually ships in 3-6 days

0

126

Toro 32184

Body, Primer

$

$

Currently unavailable

127

Toro 32312

Retainer, Primer Bulb

$

$

Currently unavailable

128

Toro 32180A

Line, Primer

$

$

Currently unavailable

129

Toro 27247

Key Flywheel

$

$

Currently unavailable

134

Toro 33667

Cup, Starter
(Superseded to 740552)

$

$

Not available

137

Toro 28212

pacer

$

$

Currently unavailable

138

Toro 16644

Washer

$

$

Currently unavailable

139

Toro 31335

Clamp-Lever, Governor

$

$

Currently unavailable

140

Toro 650548

Screw

$

$

Currently unavailable

142

Toro 650738

Screw (1/4-20 X 5/8)

$

$

Currently unavailable

148

Toro 29673

Gasket

Note: Indicates items included in Gasket Set No. 33683.

$

$

Currently unavailable

149

Toro 650549

Screw

$

$

Currently unavailable

150

Toro 31342

Spring-Compression

$

$

Currently unavailable

151

Toro 30322

Nut-Lock

Note: In original production the speed control assembly is riveted to the blower housing baffle. Replacement speed control assembly includes screws and nuts for mounting. Replacement baffle has threaded holes.

$

$

Currently unavailable

152

Toro 30091

Screw, Hex Slotted Hd.

Note: In original production the speed control assembly is riveted to the blower housing baffle. Replacement speed control assembly includes screws and nuts for mounting. Replacement baffle has threaded holes.

$

$

Currently unavailable

153

Toro 34124

Wire, Ground

$

$

Currently unavailable

154

Toro 34123

Bracket, Speed Control

$

$

Currently unavailable

155

Toro 34125

51011/13 TILL.O/P'7

$3.23

$

Usually ships in 3-6 days

0

156

Toro 28942

Screw (10-32 x 3/8)

$

$

Currently unavailable

157

Toro 27793

Conduit

$

$

Currently unavailable

160

Toro 33879

Bracket Assy., Control (Incl. Nos. 149, 150, 151 152)

Note: In original production the speed control assembly is riveted to the blower housing baffle. Replacement speed control assembly includes screws and nuts for mounting. Replacement baffle has threaded holes.

$

$

Currently unavailable

161

Toro 33876

Gasket Stator

$

$

Currently unavailable

162

Toro 610944

Magneto (The complete magneto is not available as an assembly.The magneto number is shown for reference purposes only. Order component parts individually as shown in parts list.)

$

$

Currently unavailable

163

Toro 631916

Carburetor (Incl. 1 of No. 87)

$

$

Currently unavailable

164

Toro 590473

Starter Assy., Rewind

$

$

Currently unavailable

165

Toro 33683

Gasket Set

$

$

Currently unavailable

Toro 754201

Short Block

Note: Not illustrated

$

$

Currently unavailable
