31626 (526) - Toro 26" Snow Thrower (SN: 001000001 - 001999999) (1971) CARBURETOR ASSEMBLY MODEL NO. 630992B Parts Diagram

26" Snow Thrower

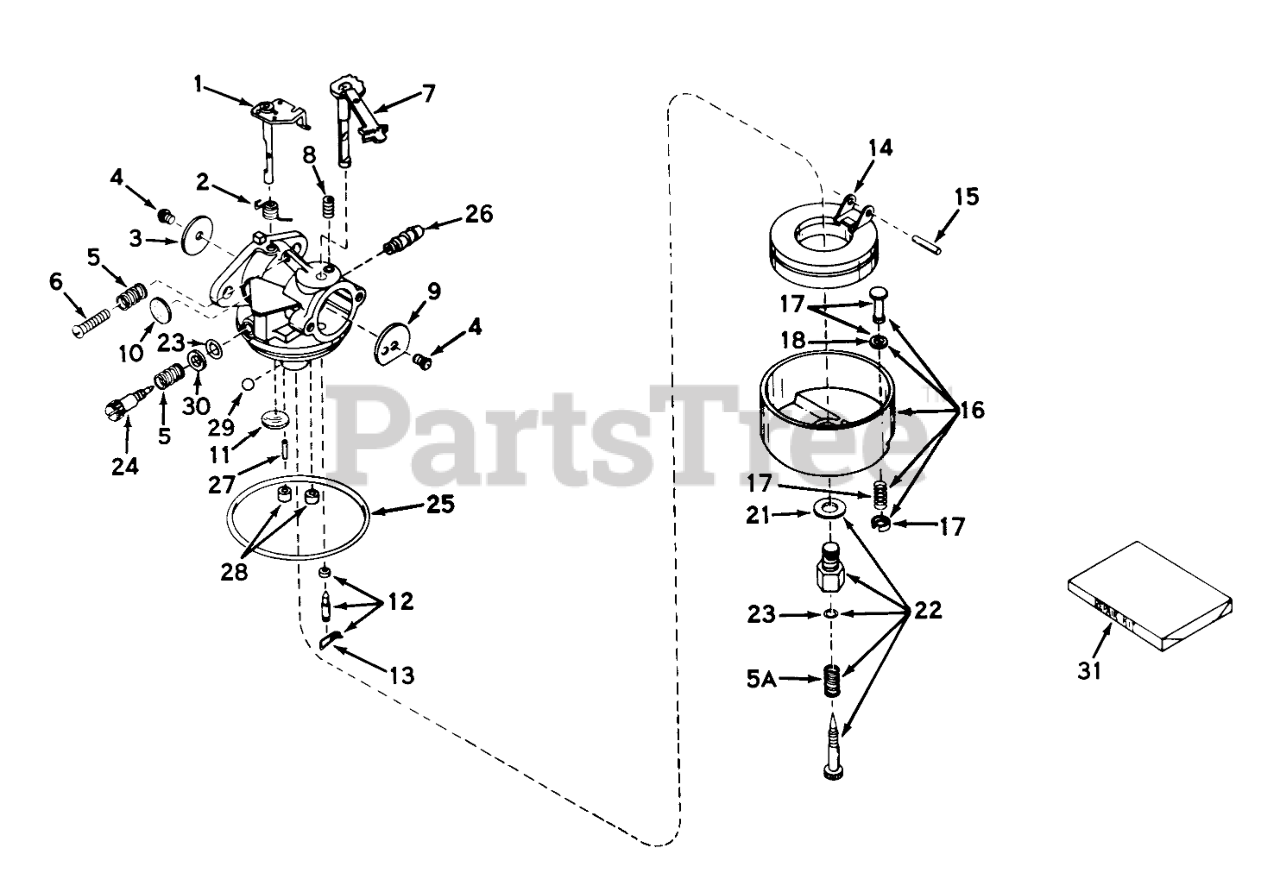

CARBURETOR ASSEMBLY MODEL NO. 630992B Parts Diagram

  • Title

1

Toro 1834

Shaft & Lever Assy., Throttle

$

$

Currently unavailable

2

Toro 30731

Spring, Throttle Return

$

$

Currently unavailable

3

Toro 31036

Shutter, Throttle

$

$

Currently unavailable

4

Toro 50506

Screw, Round Head

$

$

Currently unavailable

5

Toro 30766

Spring, Idle Regulating Screw

$

$

Currently unavailable

5A

Toro 30738

Spring, Main Adjusting Screw

$

$

Currently unavailable

6

Toro 50417

Screw, Idle Regulating

$

$

Currently unavailable

7

Toro 1841

Shaft & Lever Assy., Choke

$

$

Currently unavailable

8

Toro 30735

Spring, Choke Positioning

$

$

Currently unavailable

9

Toro 1837

Shutter, Choke

$

$

Currently unavailable

10

Toro 30748

Plug, Welch

$

$

Currently unavailable

11

Toro 31027

Plug, Welch

$

$

Currently unavailable

12

Toro 631021

Inlet Needle, Seat & Clip Assy. (Incl. No. 13)

$

$

Currently unavailable

13

Toro 31022

Clip, Inlet Needle

$

$

Currently unavailable

14

Toro 31023

Float, Carburetor

$

$

Currently unavailable

15

Toro 631024

Shaft-Float

Note: Included In repair kit Num 31840.

$

$

Currently unavailable

16

Toro 631025

Bowl & Drain Assy., Float (Incl. No. 17)

$

$

Currently unavailable

17

Toro 27136A

Plunger Assy., Drain (Incl. No. 18)

$

$

Currently unavailable

18

Toro 27554

Gasket-Plunger, Drain

$

$

Currently unavailable

21

Toro 27110

Washer-Bowl Nut

Note: Included In repair kit Num 31840.

$

$

Currently unavailable

22

Toro 31839

Adjustment Screw Assy., Main (Incl. Nos. 5A, 21 & 23)

Note: Included In repair kit Num 31840.

$

$

Currently unavailable

23

Toro 630740

"O"Ring

$

$

Currently unavailable

24

Toro 631078

Screw, Idle Adj.

Note: Included In repair kit Num 31840.

$

$

Currently unavailable

25

Toro 631028

O Ring-Bowl, Float

Note: Included In repair kit Num 31840.

$

$

Currently unavailable

26

Toro 31838

Fitting, Fuel inlet

$

$

Currently unavailable

27

Toro 631039

Pin

$

$

Currently unavailable

28

Toro 630747

Plug, Cup

$

$

Currently unavailable

29

Toro 631081

BalI, Steel

$

$

Currently unavailable

30

Toro 630739

Washer

$

$

Currently unavailable

31

Toro 31840

Kit-Repair

$

$

Currently unavailable
