31626 (526) - Toro 26" Snow Thrower (SN: 001000001 - 001999999) (1971) ENGINE ASSEMBLY Parts Diagram

26" Snow Thrower

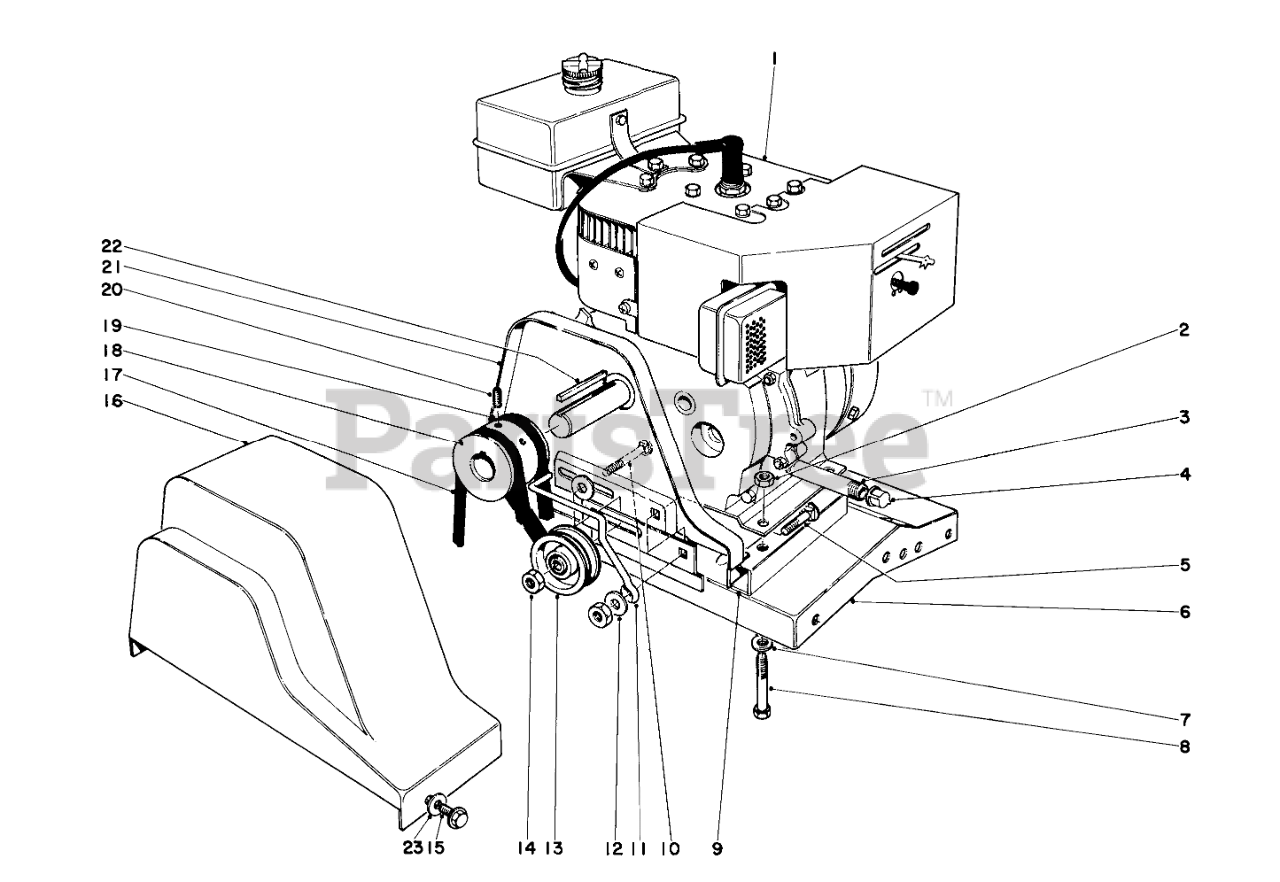

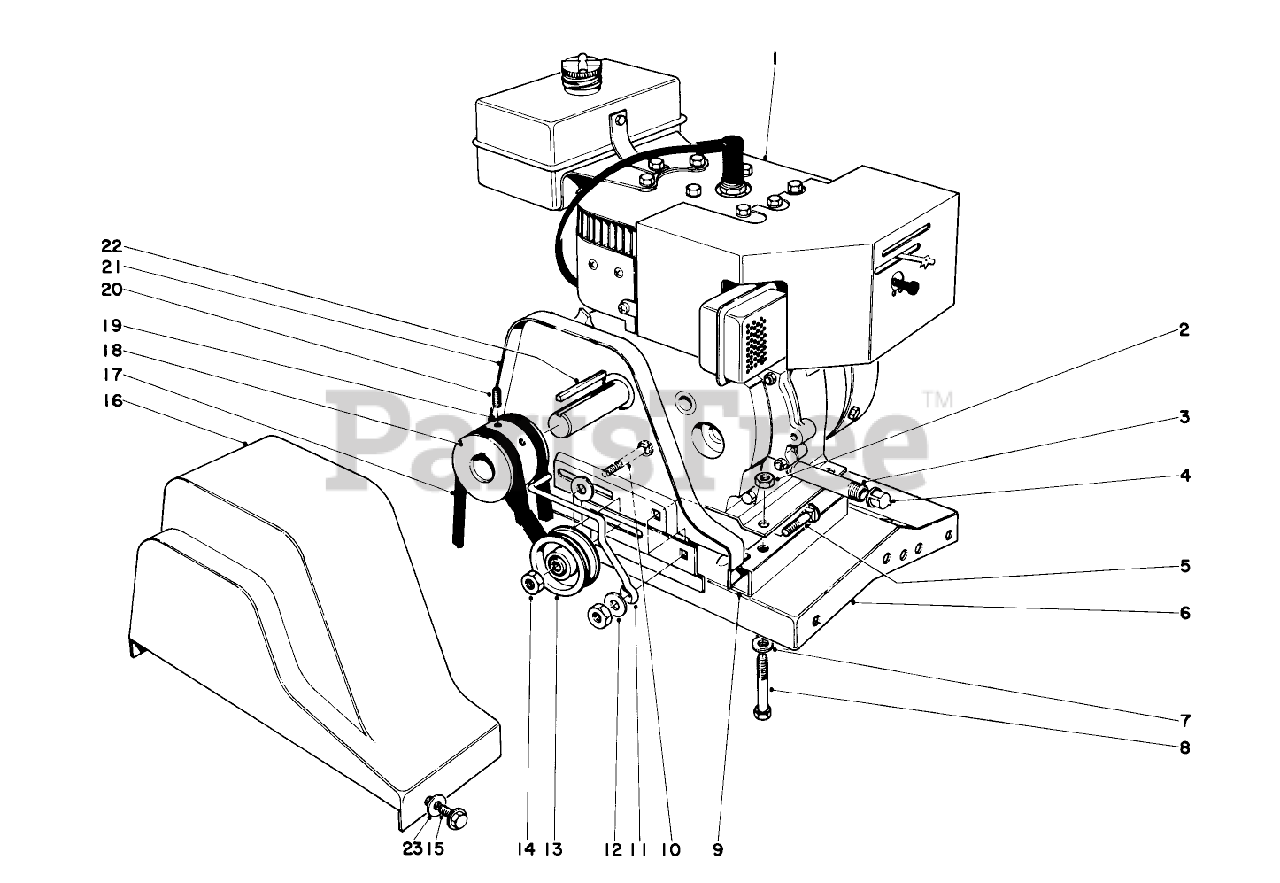

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 221-369

Engine

$

$

Currently unavailable

2

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

3

Toro 289-34

NIPPLE-PIPE

$34.99

$

Usually ships in 3-6 days

0

4

Toro 288-2

CAP-PIPE

$16.99

$

In Stock, only 1 left!

0

5

Toro 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0

6

Toro 8-9580

Engine Base

$

$

Currently unavailable

7

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 322-9

SCREW-HH

$3.49

$

In Stock, Qty 13

0

9

Toro 10-0220

Tube-Engine Mount

$

$

Currently unavailable

10

Toro 3231-26

SCREW-CARR

$5.49

$

In Stock, Qty 11

0

11

Toro 8-8830

BELT GUIDE

$

$

Not available

12

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

13

Toro 3-4244

PULLEY-IDLER

$27.99

$

In Stock, only 3 left!

0

14

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 20+

0

15

Toro 32140-70

1/4-20 X 1/2 SEMS MS

$

$

Not available

16

Toro 8-8840

Belt Guard
(Superseded to 17-6550)

$

$

Not available

17

Toro 10-0230

V-Belt
(Superseded to 26-9670)

$25.99

$

In Stock, only 1 left!

0

18

Toro 8-8910

Engine Pulley
(Superseded to 21-4100)

$

$

Not available

19

Toro 5-9760

V-Belt
(Superseded to 17-6540)

$30.99

$

In Stock, Qty 5

0

20

Toro 3245-33

1/4-20 X 5/8 SETSCREW

$2.49

$

Usually ships in 3-6 days

0

21

Toro 8-8580

Belt Guard

$

$

Currently unavailable

22

Toro 5-0930

KEY

$14.99

$

Usually ships in 3-6 days

0

Toro 10-4270

Starter Kit (Domestic)
(Superseded to 38-7590)

Note: Not illustrated

$

$

Not available

Toro 10-4290

Starter Kit (Canadian)
(Superseded to 38-7590)

Note: Not illustrated

$

$

Not available

23

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
