31626 (526) - Toro 26" Snow Thrower (SN: 001000001 - 001999999) (1971) Magneto Assembly Model No. 610694a Parts Diagram

26" Snow Thrower

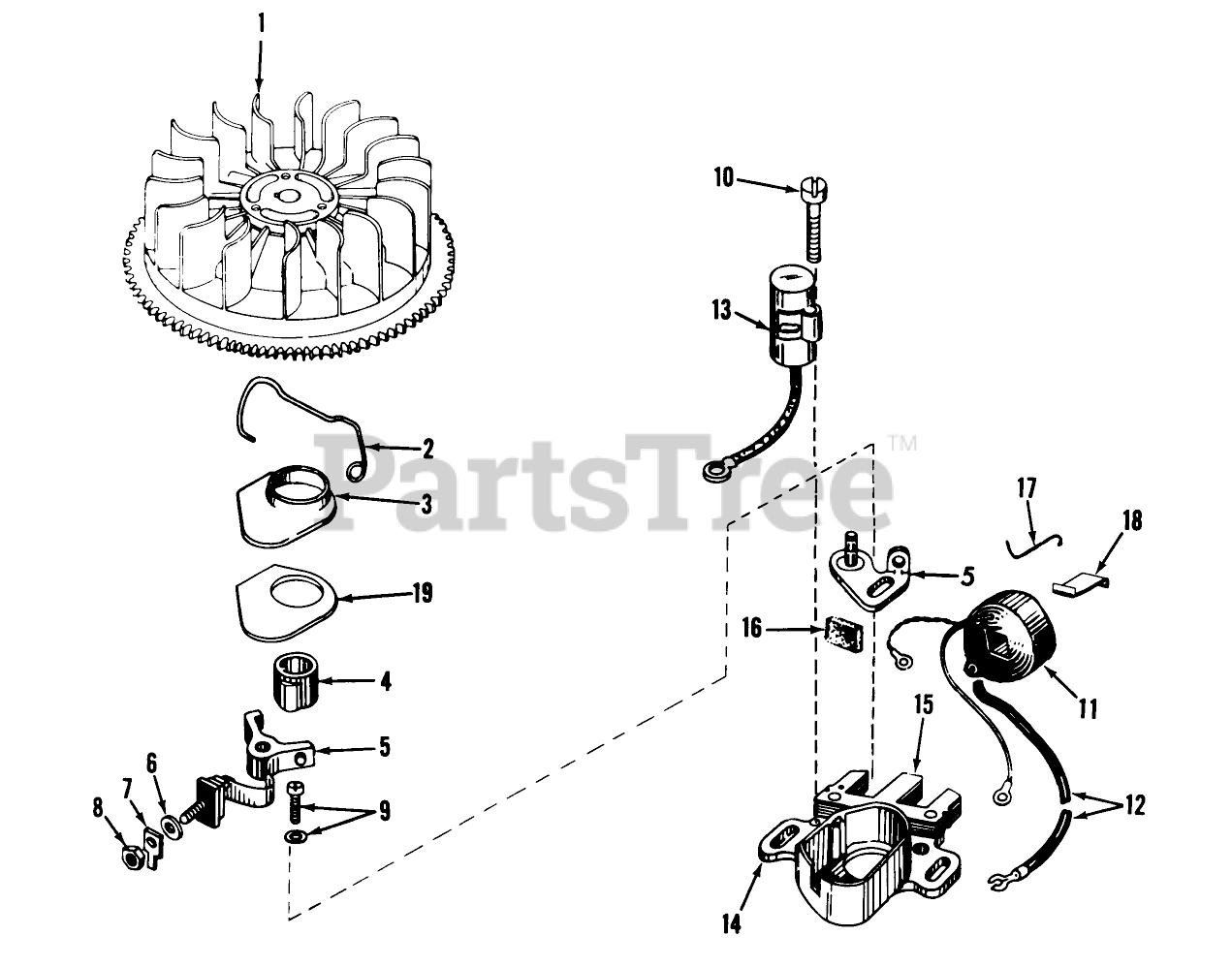

Magneto Assembly Model No. 610694a Parts Diagram

  • Title

1

Toro 30811

Flywheel

$

$

Currently unavailable

2

Toro 30551

Spring Breaker Box

$

$

Currently unavailable

3

Toro 30550

Cover, Dust

$

$

Currently unavailable

4

Toro 30992

Cam-Breaker

$

$

Currently unavailable

5

Toro 30547A

Breaker Assy.

$18.99

$

Usually ships in 3-12 days

0

6

Toro 610385

Washer

$

$

Currently unavailable

7

Toro 30843

Terminal

$

$

Currently unavailable

8

Toro 610408

DECAL

$

$

Not available

9

Toro 29181

Breaker Screw

$

$

Currently unavailable

10

Toro 610593

Condenser Screw

$

$

Currently unavailable

11

Toro 30560

Coil Assy., (Inc. Ref. Nos. 12, 13 18)

$

$

Currently unavailable

12

Toro 30554

Wire, Lead

$

$

Currently unavailable

13

Toro 30548A

Condenser

$

$

Currently unavailable

14

Toro 30545

Core Plate

$

$

Currently unavailable

15

Toro 30561A

Stator Assy., (Incl. Nos. 2, 3, 5 thru 14 16 thru 19)

$

$

Currently unavailable

16

Toro 30549

Felt,Cam Wiper

$

$

Currently unavailable

17

Toro 31311

Clip, Coil

$

$

Currently unavailable

18

Toro 29629

Spring Coil Wedge

$

$

Currently unavailable

19

Toro 30883

Gasket Dust

$

$

Currently unavailable
