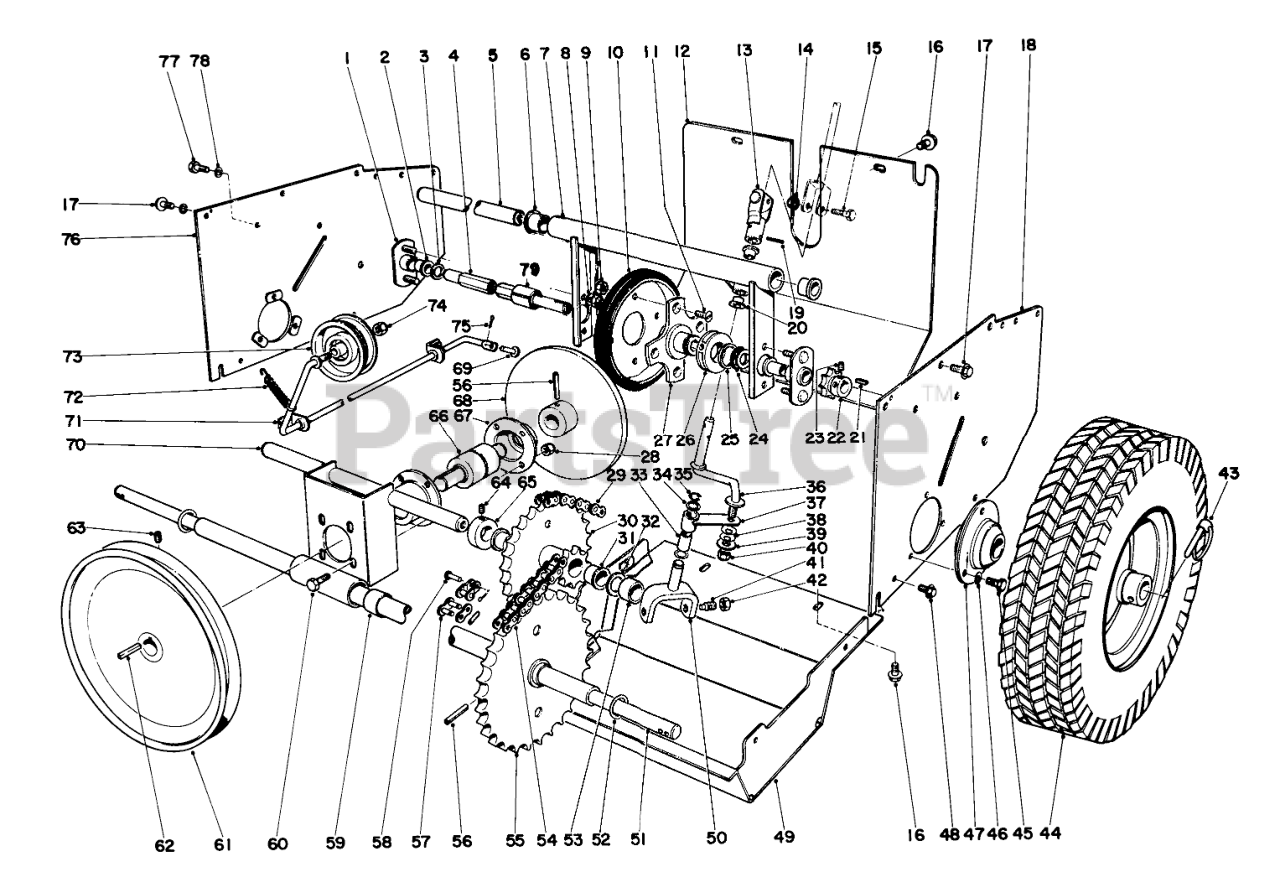

31626 (526) - Toro 26" Snow Thrower (SN: 001000001 - 001999999) (1971) TRACTION ASSEMBLY Parts Diagram

26" Snow Thrower

TRACTION ASSEMBLY Parts Diagram

  • Title

1

Toro 5-7030

Adjusting Plate (Incl. Ref. No. 2)

$

$

Currently unavailable

2

Toro 256-201

Bushing

$

$

Currently unavailable

3

Toro 5-7570

WASHER-FLAT

$8.99

$

Usually ships in 3-6 days

0

4

Toro 8-9370

Shaft, Friction Wheel
(Superseded to 11-8940)

$

$

Not available

5

Toro 8-8110

Dead Shaft

$

$

Currently unavailable

6

Toro 256-116

BUSHING-FLANGE

$4.49

$

In Stock, Qty 9

0

7

Toro 8-9350

Pivot Tube (Incl. Ref. Nos. 6 & 20)

$

$

Currently unavailable

8

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

9

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.99

$

Usually ships in 3-6 days

0

10

Toro 3-5461

Disc
(Superseded to 40-8170)

$90.99

$

In Stock, only 2 left!

0

11

Toro 32108-20

SCREW

$0.99

$

Usually ships in 3-6 days

0

12

Toro 10-0240

Rear Shield

$

$

Currently unavailable

13

Toro 5-9230

U Joint

$

$

Not available

14

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

15

Toro 321-9

SCREW-HH

$5.49

$

In Stock, only 2 left!

0

16

Toro 32104-70

Machine Screw

$

$

Currently unavailable

17

Toro 3234-1

SCREW-HHF

$1.99

$

In Stock, Qty 14

0

18

Toro 8-9050

Side Plate, Drive

$

$

Currently unavailable

19

Toro 32121-50

PIN-SPRING

$3.49

$

In Stock, only 1 left!

0

20

Toro 256-104

3/4IDX1LG FLANGE BSHG

$

$

Currently unavailable

21

Toro 3-6168

KEY

$13.99

$

In Stock, only 2 left!

0

22

Toro 5-9820

SPROCKET

$107.99

$

Usually ships in 3-6 days

0

23

Toro 3245-34

Set Screw
(Superseded to 3245-32)

$5.49

$

In Stock, only 3 left!

0

24

Toro 32151-29

RING-RETAINING

$5.49

$

In Stock, Qty 15

0

25

Toro 252-71

WASHER-THRUST

$20.99

$

In Stock, only 3 left!

0

26

Toro 5-7300

Ring Slider

$

$

Currently unavailable

27

Toro 5-6900

Hub Traction

$

$

Not available

28

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.99

$

Usually ships in 3-6 days

0

29

Toro 5-9430

1/4 X 42 CHAIN W/LINK

$166.99

$

Usually ships in 3-6 days

0

30

Toro 5-7070

Sprocket & Hub (Incl. Ref. No.31)

$

$

Not available

31

Toro 256-215

3/4ID X 3/4LG BSHG

$

$

Not available

32

Toro 3-6498

WASHER-THRUST

$7.49

$

In Stock, Qty 20+

0

33

Toro 256-198

Bushing

$

$

Currently unavailable

34

Toro 5-7670

Thrust Washer

$

$

Currently unavailable

35

Toro 32120-18

E-RING

$1.49

$

In Stock, Qty 20+

0

36

Toro 5-9000

Connecting Rod

$

$

Currently unavailable

37

Toro 5-6890

Shift Rod (Incl. Ref. No.33)

$

$

Currently unavailable

38

Toro 3290-212

WASHER-SPRING

$4.49

$

Usually ships in 3-6 days

0

39

Toro 3255-24

WASHER-LOCK / EXT

$0.99

$

Usually ships in 3-6 days

0

40

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

41

Toro 3287-16

Set Screw

$

$

Not available

42

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 12

0

43

Toro 3290-243

PIN-LYNCH
(Superseded to 107-3039)

$11.99

$

In Stock, only 2 left!

0

44

Toro 8-8550

Wheel

$

$

Currently unavailable

45

Toro 321-2

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

46

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

47

Toro 8-9310

Bearing Flange

$

$

Not available

48

Toro 3234-4

SCREW-HHF

$0.99

$

In Stock, Qty 13

0

49

Toro 5-9110

Lower Shield

$

$

Currently unavailable

50

Toro 5-6860

Fork

$

$

Currently unavailable

51

Toro 8-8870

Axle Shaft

$

$

Not available

52

Toro 3-0737

WASHER

$9.99

$

In Stock, only 2 left!

0

53

Toro 8-8120

Spacer Idler
(Superseded to 23-7250)

$

$

Not available

54

Toro 8-8810

Chain Lower

$

$

Not available

55

Toro 8-8770

Sprocket

$

$

Not available

56

Toro 32121-84

PIN-SPIRAL

$1.99

$

Usually ships in 3-6 days

0

57

Toro 2710-6

LINK-CONNECTING

$20.99

$

Usually ships in 3-6 days

0

58

Toro 2710-10

1/4 OFFSET LINK

$

$

Not available

59

Toro 256-204

Bushing

$

$

Currently unavailable

60

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

61

Toro 5-7410

Pulley

$

$

Not available

62

Toro 5-0946

KEY-SQUARE

$1.99

$

Usually ships in 3-6 days

0

63

Toro 3242-4

SCREW-SET, SQH

$2.99

$

In Stock, Qty 5

0

64

Toro 3245-31

SCREW-HSH

$16.99

$

Usually ships in 3-6 days

0

65

Toro 8-8790

Collar

$

$

Currently unavailable

66

Toro 8-8680

Friction Plate Shaft

$

$

Not available

67

Toro 10-0070

HOUSING BEARING

$

$

Not available

68

Toro 8-8720

Friction Plate

$

$

Not available

69

Toro 283-1

PIN-CLEVIS

$2.49

$

Usually ships in 3-6 days

0

70

Toro 8-9980

Bulkhead (Incl. Ref. No. 59)

$

$

Currently unavailable

71

Toro 8-8620

Auger Clutch Rod

$

$

Not available

72

Toro 10-3890

EXTENSION SPRING

$28.99

$

Usually ships in 3-6 days

0

73

Toro 3-4244

PULLEY-IDLER

$28.99

$

In Stock, only 2 left!

0

74

Toro 32127-43

Nut

$

$

Currently unavailable

75

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

76

Toro 8-9270

Side Plate Drive

$

$

Currently unavailable

77

Toro 323-34

SCREW-HH

$6.99

$

In Stock, only 2 left!

0

78

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 7

0

79

Toro 11-3180

SPLIT SPACER

$

$

Not available

Toro 10-3190

Tire Chain Kit
(Superseded to 62-7630)

Note: Not illustrated

$

$

Not available
