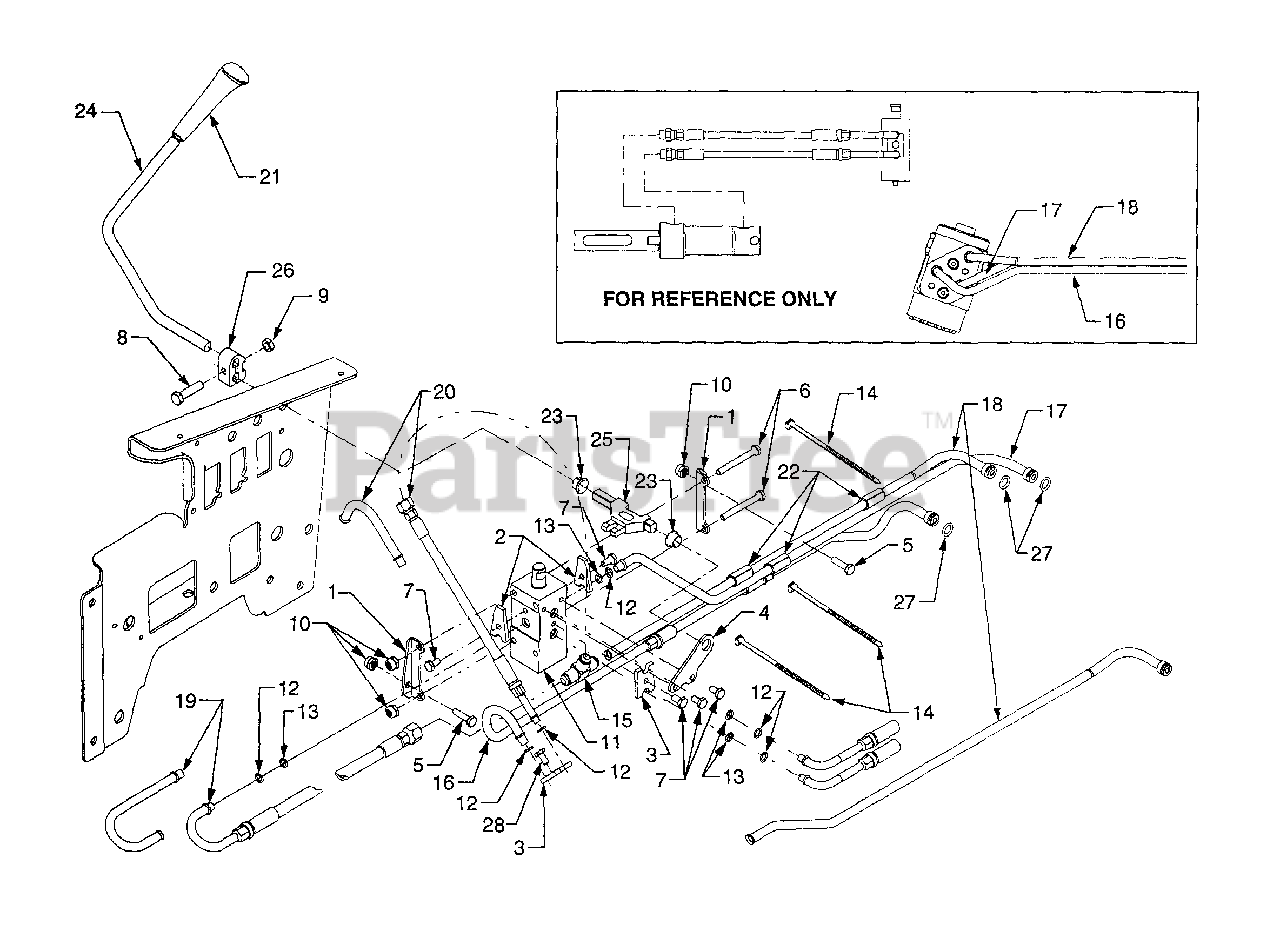

3165 (14A-654-100) - Cub Cadet Garden Tractor Hydraulic Valves And Lines Parts Diagram

Garden Tractor

Hydraulic Valves And Lines Parts Diagram

  • Title

1

Cub Cadet 703-1801

Bracket, Valve Mounting

$

$

Not available

2

Cub Cadet 703-1802

Clamp, Side Valve

$22.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-1803

Clamp, Double Valve
(Superseded to 903-1803)

$

$

Not available

4

Cub Cadet 703-3154

Bracket, Lift Valve
(Superseded to 703-3154-0637)

Variations

703-3154-0637

Cub Cadet 703-3154-0637

Lift Valve Bracket - POWDER BLACK (0637)

$35.99

$

Usually ships in 3-6 days

0

$35.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0597

Screw, Hex Cap 1/4-20 x 1.0 GR5

$4.49

$

In Stock, Qty 11

0

6

Cub Cadet 710-0641

Screw, Hex Cap 1/4-20 x 2.25 GR5

$4.49

$

In Stock, only 2 left!

0

7

Cub Cadet 710-3013

Screw, Hex Cap 1/4-20 x .50 GR5

$4.99

$

In Stock, Qty 7

0

8

Cub Cadet 710-3083

Screw, Hex Cap 5/16-18 x 1.375 GR5

$4.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 712-0429

Nut, Hex Insert Lock, 5/16-18

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 712-3027

Nut, Hex Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 717-3452

Valve, Hydraulic
(Superseded to 717P3452)

$502.99

$

In Stock, only 1 left!

0

12

Cub Cadet 721-0492

O-Ring, Backup

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 721-3021

O-Ring
(Superseded to 921-3021)

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 726-0197

Cable Tie

$3.99

$

In Stock, only 1 left!

0

15

Cub Cadet 727-3056

T-Fitting, 9/16-18 Thrd.

$

$

Not available

16

Cub Cadet 727-3130

Tube, Hydraulic (Pump to Strng)

$

$

Not available

17

Cub Cadet 727-3131

Tube, Hydraulic (Aux. from Strng)

$

$

Not available

18

Cub Cadet 727-3132

Tube, Hydraulic (Strng Return)

Note: (Mfg. Date 1D148G & Before)

$

$

Not available

Cub Cadet 727-3162

Tube, Hydraulic (Strng Return)

Note: (Mfg. Date 1D158G & After - Used with 727-3160 and 727-3161 Hoses)

$

$

Not available

19

Cub Cadet 727-3133

Tube, Hydraulic (Aux Return)

Note: (Mfg. Date 1D148G & Before)

$

$

Not available

Cub Cadet 727-3160

Hose, Hydraulic (Aux Return)

Note: (Mfg. Date 1D158G & After)

$

$

Not available

20

Cub Cadet 727-3140

Tube, Hydraulic (Return to Pump)
(Superseded to 727-3161)

Note: (Mfg. Date 1D148G & Before)

$

$

Not available

Cub Cadet 727-3161

Hose, Hydraulic (Return to Pump)

Note: (Mfg. Date 1D158G & After)

$

$

Not available

21

Cub Cadet 731-3259

Knob, Lift

$20.99

$

In Stock, only 1 left!

0

22

Cub Cadet 735-3007

Rubber Spacer
(Superseded to 935-3007)

$8.99

$

In Stock, only 3 left!

0

23

Cub Cadet 741-0491

Bearing, Nylon Flange

$5.49

$

In Stock, Qty 10

0

24

Cub Cadet 747-3349

Handle, Center Lift Valve
(Superseded to 747-3349A)

$

$

Not available

25

Cub Cadet 748-3081

Link, Lift
(Superseded to 748-3081A)

$46.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 748-3082

Clamp, Handle

$38.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 721-0493

O-Ring, .426 x .566 x .070

$4.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 710-0751

Screw, Hex Cap 1/4-20 x .62 GR5

$4.49

$

In Stock, Qty 20+

0
