31660 (526) - Toro 26" Snow Thrower (SN: 002000001 - 002999999) (1972) Engine Assembly Parts Diagram

26" Snow Thrower

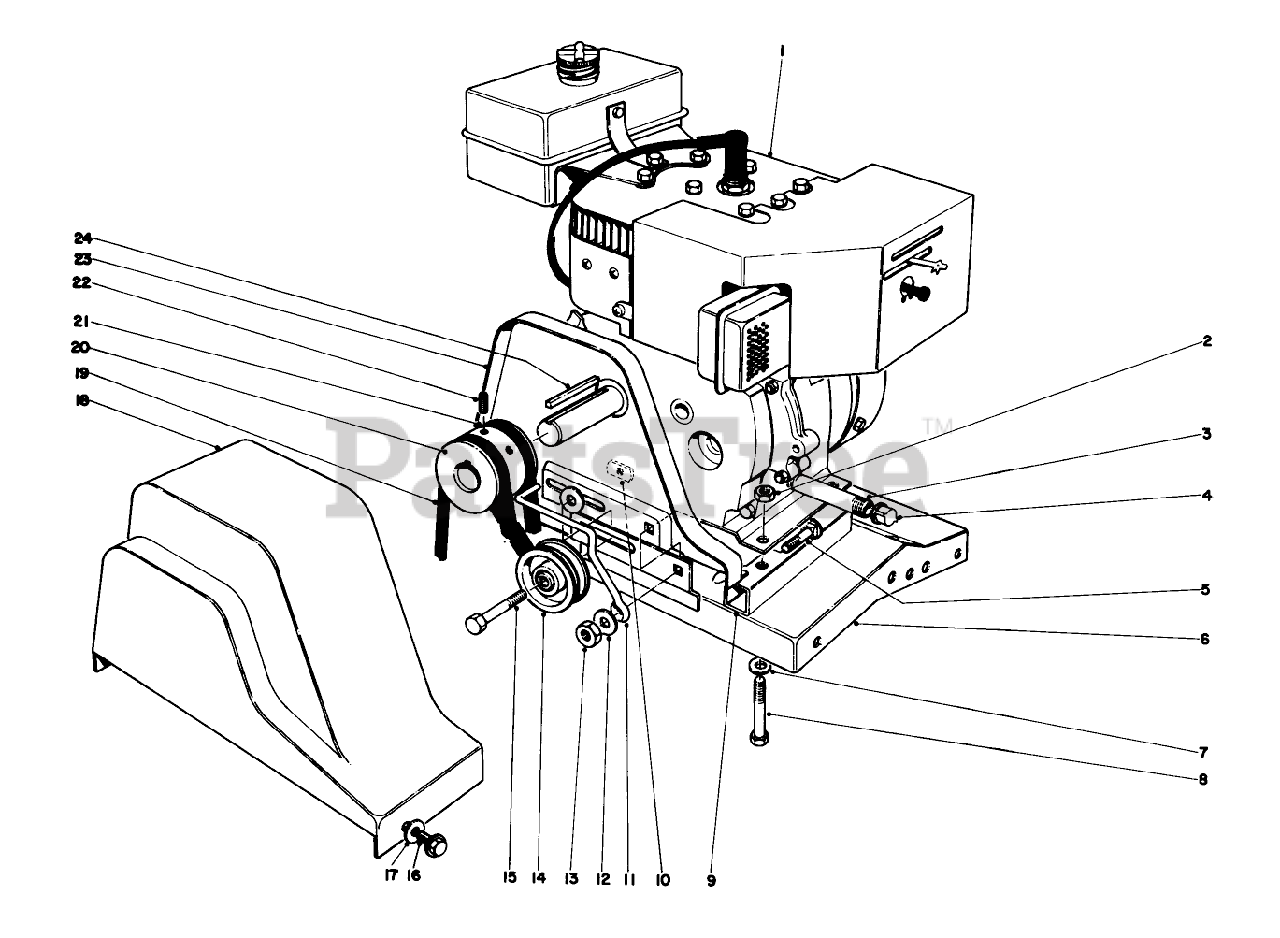

Engine Assembly Parts Diagram

  • Title

1

Toro 221-398

Engine

$

$

Currently unavailable

2

Toro 32146-5

See Supercession: 32153-3
(Superseded to 32153-3)

$6.99

$

Usually ships in 3-6 days

0

3

Toro 289-34

NIPPLE-PIPE

$43.99

$

Usually ships in 3-6 days

0

4

Toro 288-2

CAP-PIPE

$20.99

$

In Stock, only 1 left!

0

5

Toro 3231-21

SCREW-CARR

$1.99

$

In Stock, Qty 6

0

6

Toro 11-7100

Engine Base

$

$

Currently unavailable

7

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

8

Toro 322-9

SCREW-HH

$3.99

$

In Stock, Qty 13

0

9

Toro 10-0220

Tube-Engine Mount

$

$

Currently unavailable

10

Toro 32141-16

Weldnut

$

$

Currently unavailable

11

Toro 8-8830

BELT GUIDE

$

$

Not available

12

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

13

Toro 32146-2

See Supercession: 32153-2
(Superseded to 32153-2)

$

$

Not available

14

Toro 3-4244

PULLEY-IDLER

$28.99

$

In Stock, only 2 left!

0

15

Toro 3211-6

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

16

Toro 32140-81

See Supercession: 32144-10
(Superseded to 32144-10)

$4.99

$

In Stock, Qty 10

0

17

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

18

Toro 8-8840

See Supercession: 17-6550
(Superseded to 17-6550)

$

$

Not available

19

Toro 10-0230

See Supercession: 26-9670
(Superseded to 26-9670)

$26.99

$

In Stock, only 4 left!

0

20

Toro 11-9110

DISCONTINUED
(Superseded to 21-4100)

$

$

Not available

21

Toro 5-9760

See Supercession: 17-6540
(Superseded to 17-6540)

$31.99

$

In Stock, only 3 left!

0

22

Toro 3246-14

See Supercession: 3246-3
(Superseded to 3246-3)

$14.99

$

Usually ships in 3-6 days

0

23

Toro 8-8580

Belt Guard

$

$

Currently unavailable

24

Toro 5-0930

KEY

$

$

Not available

Toro 10-4270

See Supercession: 38-7590
(Superseded to 38-7590)

Note: Not illustrated

$

$

Not available

Toro 11-5700

See Supercession: 38-7590
(Superseded to 38-7590)

Note: Not illustrated

$

$

Not available
