31660 (526) - Toro 26" Snow Thrower (SN: 002000001 - 002999999) (1972) ENGINE ASSEMBLY Parts Diagram

26" Snow Thrower

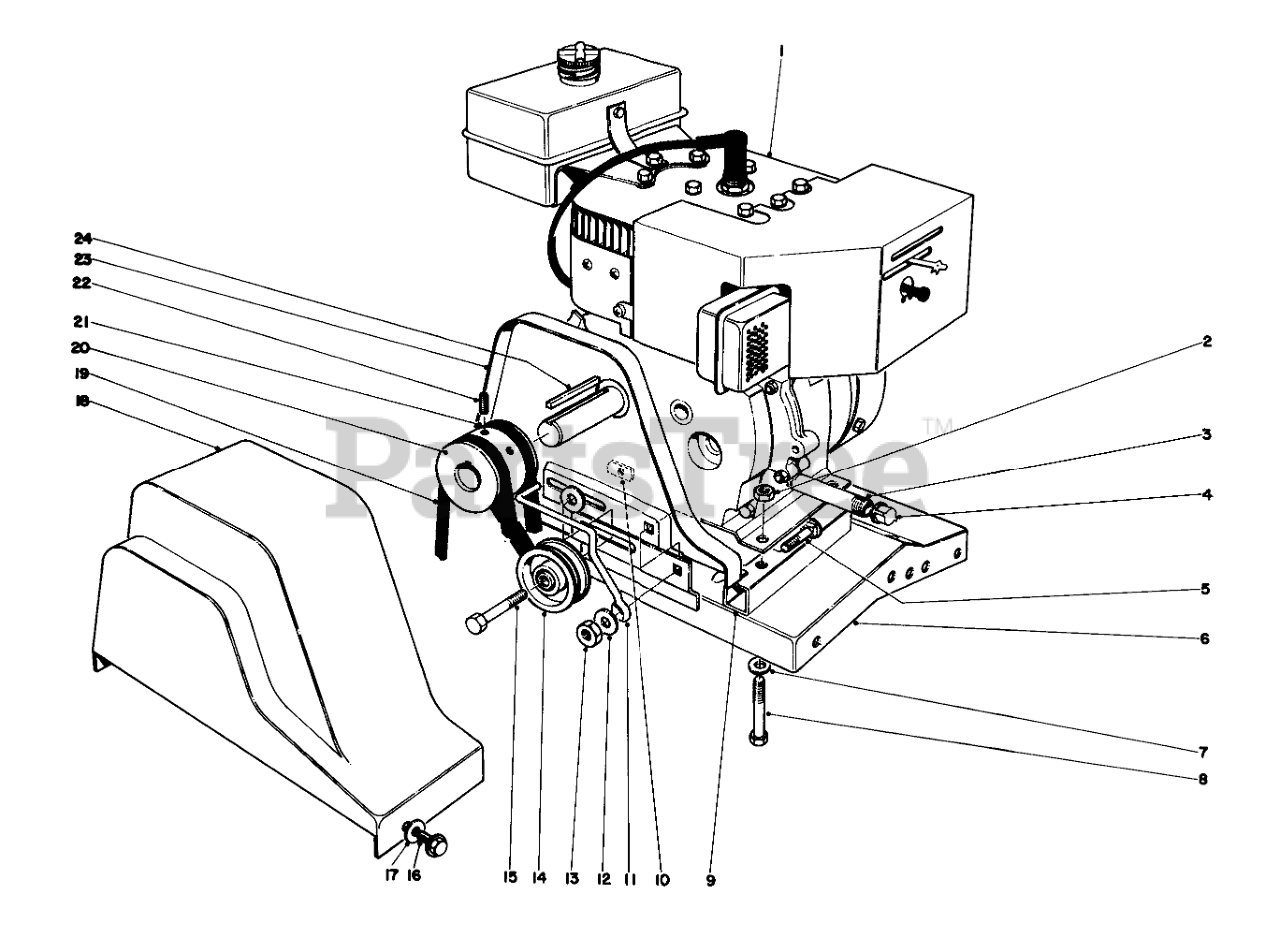

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 221-398

Engine

$

$

Currently unavailable

2

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

3

Toro 289-34

NIPPLE-PIPE

$34.99

$

Usually ships in 3-6 days

0

4

Toro 288-2

CAP-PIPE

$16.99

$

In Stock, only 1 left!

0

5

Toro 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0

6

Toro 11-7100

Engine Base

$

$

Currently unavailable

7

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 322-9

SCREW-HH

$3.49

$

In Stock, Qty 13

0

9

Toro 10-0220

Tube-Engine Mount

$

$

Currently unavailable

10

Toro 32141-16

Weldnut

$

$

Currently unavailable

11

Toro 8-8830

BELT GUIDE

$

$

Not available

12

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

13

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 20+

0

14

Toro 3-4244

PULLEY-IDLER

$27.99

$

In Stock, only 3 left!

0

15

Toro 3211-6

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

16

Toro 32140-81

Screw, Self-tapping
(Superseded to 32144-10)

$4.99

$

In Stock, Qty 12

0

17

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 8-8840

Belt Guard
(Superseded to 17-6550)

$

$

Not available

19

Toro 10-0230

V-Belt
(Superseded to 26-9670)

$25.99

$

In Stock, only 1 left!

0

20

Toro 11-9110

Pulley
(Superseded to 21-4100)

$

$

Not available

21

Toro 5-9760

V-Belt
(Superseded to 17-6540)

$30.99

$

In Stock, Qty 5

0

22

Toro 3246-14

Screw-Set
(Superseded to 3246-3)

$12.99

$

Usually ships in 3-6 days

0

23

Toro 8-8580

Belt Guard

$

$

Currently unavailable

24

Toro 5-0930

KEY

$14.99

$

Usually ships in 3-6 days

0

Toro 10-4270

Starter Kit (Domestic)
(Superseded to 38-7590)

Note: Not illustrated

$

$

Not available

Toro 11-5700

Starter Kit (Canadian)
(Superseded to 38-7590)

Note: Not illustrated

$

$

Not available
