31677 (724) - Toro 24" Snow Thrower (SN: 007000001 - 007999999) (1977) AUGER ASSEMBLY Parts Diagram

24" Snow Thrower

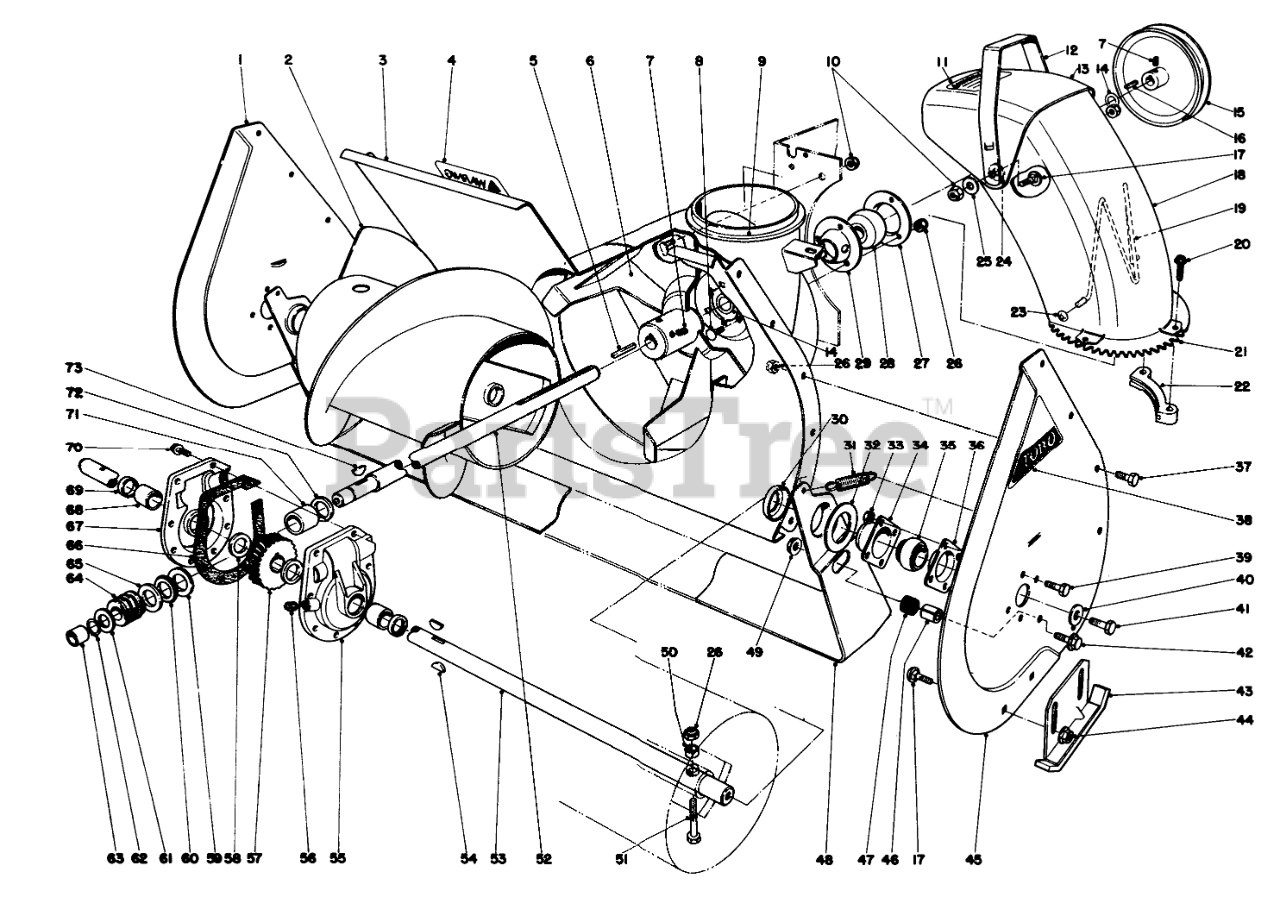

AUGER ASSEMBLY Parts Diagram

  • Title

1

Toro 20-1360

Side Plate Right
(Superseded to 43-7440)

$

$

Not available

2

Toro 26-6140

Auger Right
(Superseded to 26-6140-03)

$

$

Not available

Toro 26-6150

Auger Left
(Superseded to 26-6150-03)

Note: Not illustrated

$

$

Not available

3

Toro 26-6090

Auger Housing

$

$

Not available

4

Toro 22-8130

Decal
(Superseded to 94-2568)

$8.49

$

In Stock, only 3 left!

0

5

Toro 6-8590

KEY

$12.99

$

Usually ships in 3-6 days

0

6

Toro 20-1260

IMPELLER WA RO

$679.99

$

Usually ships in 3-6 days

0

7

Toro 32424

Set Screw

$

$

Currently unavailable

8

Toro 3230-10

BOLT-CARR

$3.99

$

In Stock, only 1 left!

0

9

Toro 17-5180

CHUTE RING

$

$

Not available

10

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 20+

0

11

Toro 22-8730

CHUTE WARNING DECAL

$

$

Not available

12

Toro 20-1410

DEFLECTOR HANDLE B

$74.99

$

In Stock, only 1 left!

0

13

Toro 20-1400

Chute Deflector
(Superseded to 11-9379)

$

$

Not available

14

Toro 3-0737

WASHER

$8.49

$

In Stock, only 3 left!

0

15

Toro 20-1310

IMPELLER PULLEY

$248.99

$

Usually ships in 3-6 days

0

16

Toro 3-6857

SQUARE KEY

$15.99

$

Usually ships in 3-6 days

0

17

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, Qty 5

0

18

Toro 20-1390

Chute
(Superseded to 56-2450)

$

$

Not available

19

Toro 12-2040

WIRE-CHUTE

$

$

Not available

20

Toro 27-0210

SPECIAL SCREW

$8.99

$

Usually ships in 3-6 days

0

21

Toro 20-1370

Chute Swivel Gear
(Superseded to 43-7470-03)

$

$

Not available

22

Toro 25-6140

CHUTE RETAINER

$

$

Not available

23

Toro 3290-326

NUT-PUSH

$4.99

$

Usually ships in 3-6 days

0

24

Toro 20-4320

WASHER-RUBBER

$0.99

$

In Stock, Qty 10

0

25

Toro 3290-340

WASHER-BELLEVILLE

$7.99

$

In Stock, Qty 10

0

26

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

27

Toro 26-6120

FLANGE-CUP, BEARING

$4.49

$

In Stock, only 1 left!

0

28

Toro 26-6100

Ball Bearing
(Superseded to 12-8789)

$29.99

$

In Stock, only 3 left!

0

29

Toro 26-6110

FLANGE-CUP, BEARING

$6.49

$

In Stock, only 1 left!

0

30

Toro 26-6400

Positioner-Scraper

$

$

Not available

31

Toro 5-7290

SPRING-TENSION

$26.99

$

In Stock, only 2 left!

0

32

Toro 20-0300

SCRAPER BLADE SPACER

$8.99

$

Usually ships in 3-6 days

0

33

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, only 4 left!

0

34

Toro 20-0990

BEARING-FLANGE, FRONT

$11.99

$

In Stock, only 4 left!

0

35

Toro 20-0980

BEARING

$22.99

$

In Stock, Qty 11

0

36

Toro 20-1000

BEARING-FLANGE, REAR

$11.99

$

In Stock, only 3 left!

0

37

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

38

Toro 17-6500

AUGER SIDE PLT DECAL

$

$

Not available

39

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 10

0

40

Toro 3-0750

WASHER

$9.49

$

In Stock, only 2 left!

0

41

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

42

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 18

0

43

Toro 20-2850

Skid
(Superseded to 20-2840-01)

$41.99

$

In Stock, Qty 15

0

44

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

45

Toro 20-1340

Sideplate Auger Left
(Superseded to 43-7430)

$257.99

$

Usually ships in 3-6 days

0

46

Toro 25-5140

SCRAPER STOP SPACER

$

$

Not available

47

Toro 25-5150

SCRAPER STOP CUSHION

$7.99

$

Usually ships in 3-6 days

0

48

Toro 20-1320

24 SCRAPER BLD
(Superseded to 20-1320-01)

$

$

Not available

49

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

50

Toro 25-5090

SPACER-HUB, AUGER

$10.99

$

In Stock, Qty 8

0

51

Toro 17-7030

Auger Bolt
(Superseded to 322-12)

$1.99

$

In Stock, Qty 14

0

52

Toro 20-1180

Impeller Shaft
(Superseded to 66-6941)

$

$

Not available

53

Toro 20-1170

24 AUGER SHAFT

$

$

Not available

54

Toro 3257-33

KEY-WOODRUFF

$2.49

$

In Stock, only 3 left!

0

55

Toro 19-6970

Gear Case Assembly L.H. (Include Ref. # 68 & 69)
(Superseded to 14-2459)

$151.99

$

Usually ships in 3-6 days

0

56

Toro 281-1

PLUG-PIPE, SQH

$5.49

$

In Stock, only 1 left!

0

57

Toro 5-7180

GEAR-WORM, 27T

$158.99

$

In Stock, only 2 left!

0

58

Toro 252-71

WASHER-THRUST

$19.99

$

In Stock, only 2 left!

0

59

Toro 252-78

WASHER-THRUST

$26.99

$

In Stock, only 2 left!

0

60

Toro 252-76

BEARING-THRUST

$21.99

$

In Stock, only 1 left!

0

61

Toro 3-8664

WASHER-THRUST

$6.49

$

In Stock, only 2 left!

0

62

Toro 32120-72

Ring-Snap

$2.49

$

In Stock, Qty 20+

0

63

Toro 256-32

BUSHING

$10.99

$

In Stock, Qty 9

0

64

Toro 5-7170

GEAR

$113.99

$

In Stock, only 3 left!

0

65

Toro 252-77

THRUST-WASHER

$10.99

$

In Stock, only 2 left!

0

66

Toro 19-8520

Gasket
(Superseded to 51-0460)

$7.99

$

In Stock, Qty 9

0

67

Toro 19-6980

Gear Case Assembly R.H. (Include Ref. #68 & 69
(Superseded to 14-2449)

$151.99

$

Usually ships in 3-6 days

0

68

Toro 256-237

BUSHING

$15.99

$

In Stock, only 2 left!

0

69

Toro 7-0045

SEAL-OIL

$15.99

$

In Stock, Qty 20+

0

70

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 8

0

71

Toro 20-3210

BUSHING-SPECIAL

$12.99

$

In Stock, only 1 left!

0

72

Toro 237-87

RING-QUAD

$6.99

$

In Stock, only 2 left!

0

73

Toro 3257-23

KEY-WOODRUFF

$7.49

$

In Stock, only 2 left!

0

Toro 19-7000

Gear Case Complete
(Superseded to 19-7002)

Note: Not illustrated

$

$

Not available

Toro 20-0690

DRIFT BREAKER 24

Note: Not illustrated

$116.99

$

Usually ships in 3-6 days

0
