316E643F131 - Huskee Snow Thrower (1996) (Tractor Supply) Wheel Assembly Parts Diagram

Snow Thrower

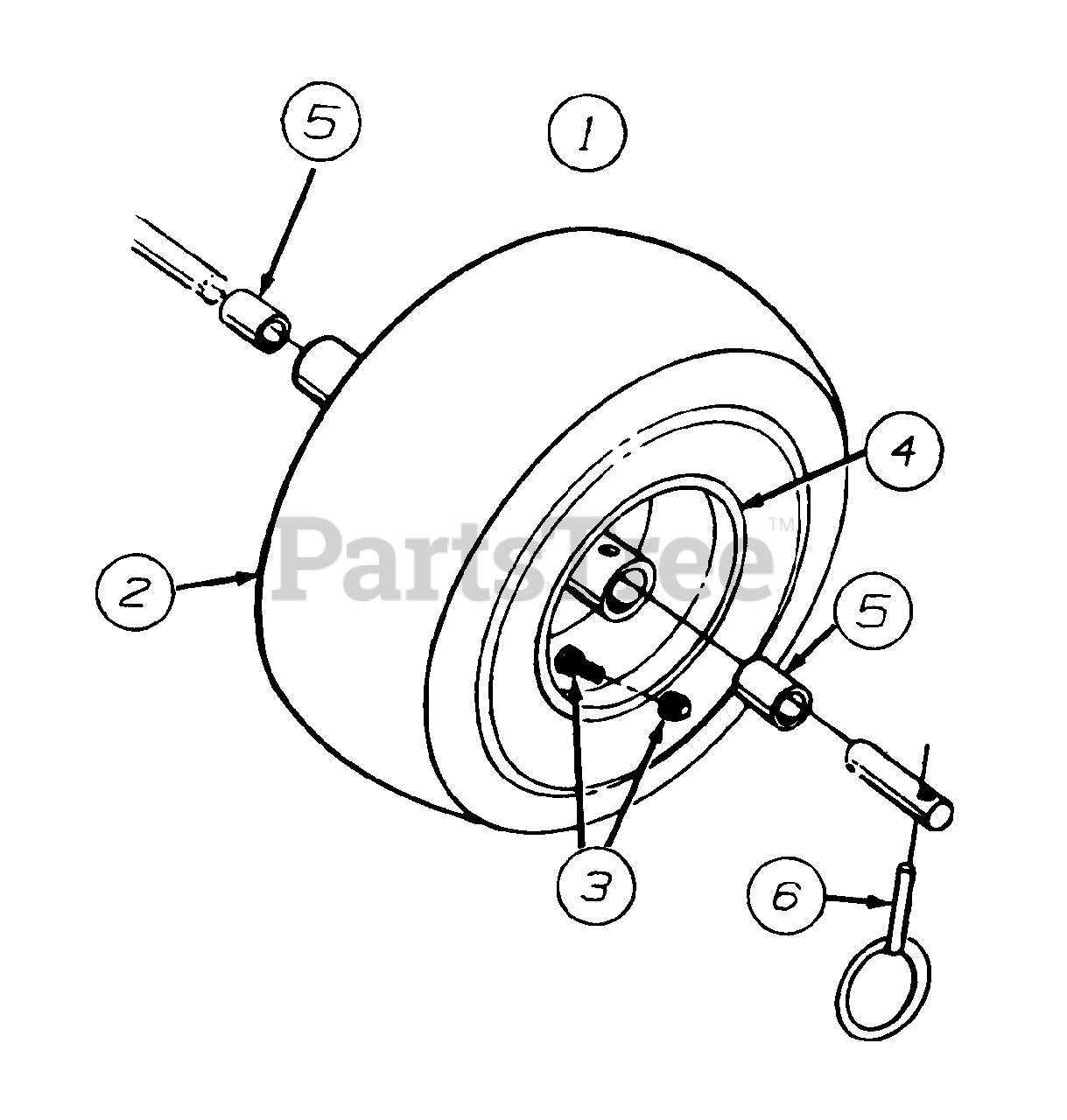

Wheel Assembly Parts Diagram

  • Title

1

MTD 734-1709

16 x 4.8 Wheel Ass'y Complete

Variations

MTD 734-1709-0911

No Longer Available - Carlisle Gray (0911)

$

$

Not available

MTD 734-1709-0931

No Longer Available - Carlisle Beige (0931)

$

$

Not available

MTD 734-1709-0915

No Longer Available WHEEL - Duro Gray (0915)

$

$

Not available

MTD 734-1709-0935

WHEEL ASM 16X4.8 - Duro Beige (0935)

$

$

Not available

MTD 734-1709-0941

WHEEL ASM 16X4.8 - Carlisle Yellow (0941)

$

$

Not available

$

$

2

MTD 734-1530

16 x 4.8 Tire Only

Variations

MTD 734-1530-0901

TIRE-SNOW HOG-4.80 - Carlisle (0901)

$178.99

$

Usually ships in 3-6 days

0

MTD 734-1530-0905

TIRE-SNOW HOG-4.80 - Duro (0905)

$178.99

$

Usually ships in 3-6 days

0

$145.99

$

Usually ships in 3-6 days

0

3

MTD 734-0255

16 x 4.8 Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

4

MTD 734-1708

16 x 4.8 Rim Only

Variations

MTD 734-1708-0499

No Longer Available WHEEL-RIM - CUB BEIGE (0499)

$

$

Not available

MTD 734-1708-0629

No Longer Available WHEEL-RIM - SILVER FLAKE (0629)

$

$

Not available

MTD 734-1708-0662

No Longer Available WHEEL-RIM - OYSTER GRAY (0662)

$

$

Not available

MTD 734-1708-0674

No Longer Available WHEEL-RIM - YARDMAN YELLOW (0674)

$

$

Not available

$

$

5

MTD 741-0401

16 x 4.8 Sleeve Bearing
(Superseded to 941-0401)

$7.99

$

In Stock, Qty 6

0

6

MTD 714-0143

16 x 4.8 Klick Pin
(Superseded to 714-0143A)

$6.99

$

In Stock, only 1 left!

0
