31756 (726) - Toro 26" Snow Thrower (SN: 003000001 - 003999999) (1973) AUGER ASSEMBLY Parts Diagram

26" Snow Thrower

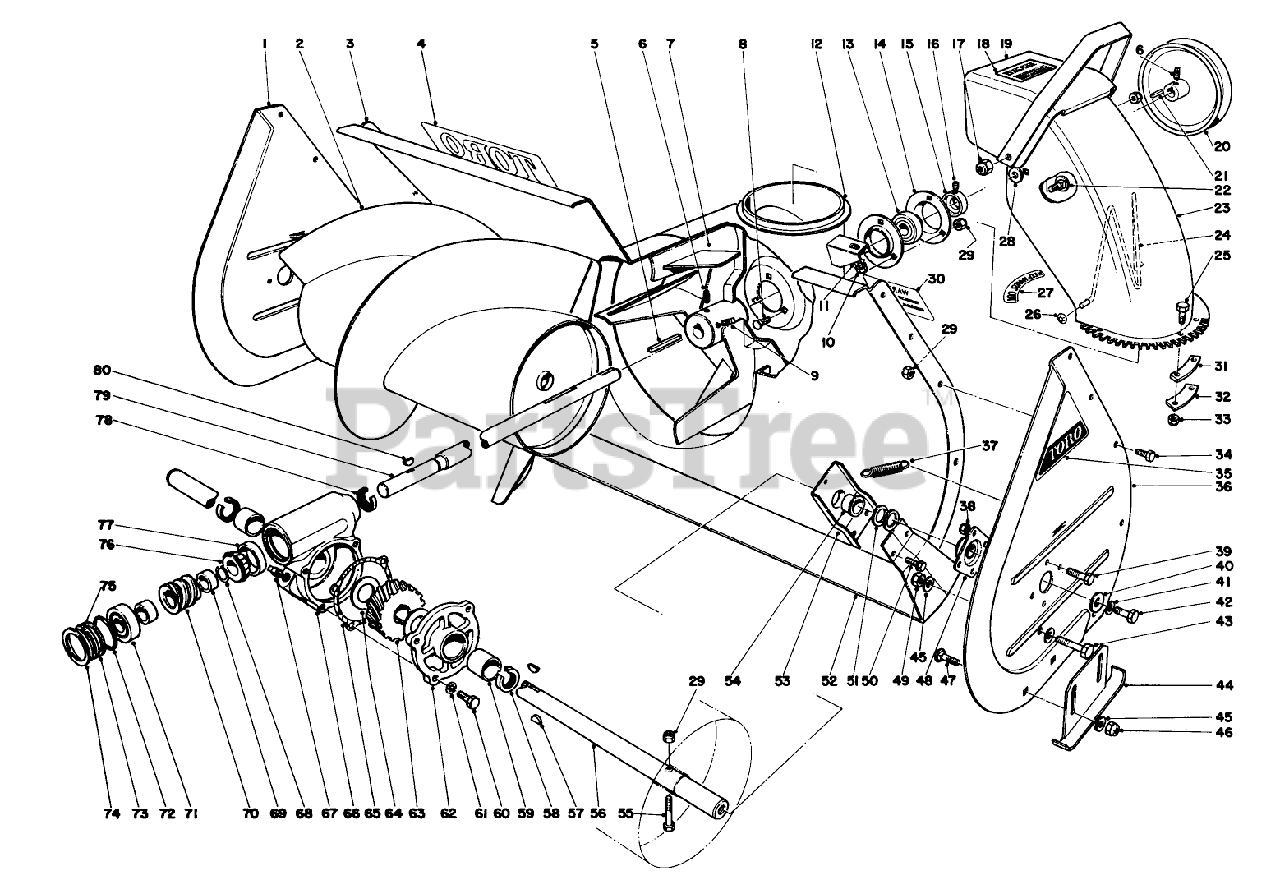

AUGER ASSEMBLY Parts Diagram

  • Title

1

Toro 8-8450

Side Plate
(Superseded to 39-6120)

$

$

Not available

2

Toro 11-6900

Auger
(Superseded to 26-6160)

$

$

Not available

Toro 11-6890

Auger

Note: Not illustrated

$

$

Not available

3

Toro 5-8579

Auger Housing (Incl. Ref. #30)

$

$

Not available

4

Toro 17-6560

Decal-Auger Housing

$

$

Currently unavailable

5

Toro 6-8590

KEY

$12.99

$

Usually ships in 3-6 days

0

6

Toro 3242-4

SCREW-SET, SQH

$2.99

$

In Stock, only 2 left!

0

7

Toro 8-7720

Impeller
(Superseded to 19-8890-03)

$670.99

$

Usually ships in 3-6 days

0

8

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

9

Toro 3242-6

SCREW-SET, SQH

$4.49

$

Usually ships in 3-6 days

0

10

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

11

Toro 3290-238

WASHER-LOCK

$3.49

$

Usually ships in 3-6 days

0

12

Toro 5-7250

SUPPORT B

$

$

Not available

13

Toro 251-224

BALL BRG W/COLLAR

$58.99

$

Usually ships in 3-6 days

0

14

Toro 251-229

BRG FLANGE

$40.99

$

In Stock, only 1 left!

0

15

Toro 251-231

EXT LOCKING COLLAR

$33.99

$

In Stock, only 1 left!

0

16

Toro 3245-32

SCREW-HSH

$5.49

$

In Stock, only 2 left!

0

17

Toro 3296-44

NUT-LOCK, NI

$3.49

$

Usually ships in 3-6 days

0

18

Toro 10-2980

Decal
(Superseded to 22-8730)

$

$

Not available

19

Toro 5-8589

Deflector (Incl. Ref. #18)
(Superseded to 11-7120-01)

$117.99

$

Usually ships in 3-6 days

0

20

Toro 5-7400

1/2 X 9.5 DIA PULLEY

$

$

Not available

21

Toro 3-6857

SQUARE KEY

$15.99

$

Usually ships in 3-6 days

0

22

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 8

0

23

Toro 5-8599

Upper Chute (Incl. Ref. #27)

$

$

Not available

24

Toro 12-2040

WIRE-CHUTE

$

$

Not available

25

Toro 3290-134

SCREW

$0.99

$

In Stock, Qty 12

0

26

Toro 3290-326

NUT-PUSH

$4.99

$

Usually ships in 3-6 days

0

27

Toro 5-9830

Decal

$

$

Currently unavailable

28

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

29

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

30

Toro 10-2970

Decal
(Superseded to 94-2568)

$8.49

$

In Stock, only 3 left!

0

31

Toro 6-5560

CHUTE TAB SPACER

$

$

Not available

32

Toro 6-5570

UPPER CHUTE TAB

$

$

Not available

33

Toro 32146-18

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

34

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

35

Toro 17-6500

AUGER SIDE PLT DECAL

$

$

Not available

36

Toro 8-8440

Side Plate L. H.
(Superseded to 39-6130)

$

$

Not available

37

Toro 5-7290

SPRING-TENSION

$26.99

$

In Stock, only 2 left!

0

38

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

39

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

40

Toro 3-0750

WASHER

$9.49

$

In Stock, only 2 left!

0

41

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 14

0

42

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

43

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

44

Toro 8-8460

Skid
(Superseded to 20-2840-01)

$41.99

$

In Stock, Qty 15

0

45

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

46

Toro 3296-26

NUT-LOCK, NI

$3.99

$

Usually ships in 3-6 days

0

47

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

48

Toro 11-7020

Bearing Flange

$

$

Not available

49

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 20+

0

50

Toro 32140-82

Hex Hd. Screw
(Superseded to 32144-11)

$7.99

$

In Stock, Qty 8

0

51

Toro 8-9950

Spacer

$

$

Currently unavailable

52

Toro 11-6850

Scraper Blade

$

$

Currently unavailable

53

Toro 11-6870

Scraper Blade Mount (Incl. Ref. #54)

$

$

Not available

54

Toro 256-132

BUSHING-FLANGE

$8.49

$

In Stock, only 2 left!

0

55

Toro 17-7030

Auger Bolt
(Superseded to 322-12)

$1.99

$

In Stock, Qty 14

0

56

Toro 11-7000

26 AUGER SHAFT

$449.99

$

Usually ships in 3-6 days

0

57

Toro 3257-33

KEY-WOODRUFF

$2.49

$

In Stock, only 3 left!

0

58

Toro 7-0045

SEAL-OIL

$15.99

$

In Stock, Qty 20+

0

59

Toro 256-197

Bushing
(Superseded to 256-237)

$15.99

$

In Stock, only 2 left!

0

60

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 10

0

61

Toro 3254-8

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

62

Toro 4-9309

Cover-Gear Box (Incl. Ref. #59)

$

$

Not available

63

Toro 5-7180

GEAR-WORM, 27T

$158.99

$

In Stock, only 2 left!

0

64

Toro 252-71

WASHER-THRUST

$19.99

$

In Stock, only 2 left!

0

65

Toro 5-7110

Gasket

$

$

Not available

66

Toro 4-9319

Gear Box Auger (Incl. Ref. #59 & 77)

$

$

Currently unavailable

67

Toro 281-1

PLUG-PIPE, SQH

$5.49

$

In Stock, only 1 left!

0

68

Toro 7-0013

RETAINER RING

$8.49

$

Usually ships in 3-6 days

0

69

Toro 8-9000

Spacer

$

$

Not available

70

Toro 5-7170

GEAR

$113.99

$

In Stock, only 3 left!

0

71

Toro 251-207

.750 BALL BEARING

$

$

Not available

72

Toro 237-71

O-RING

$8.99

$

Usually ships in 3-6 days

0

73

Toro 7-0017

Plug

$

$

Not available

74

Toro 7-0018

INTRNL RETAINING RING

$6.49

$

Usually ships in 3-6 days

0

75

Toro 11-2120

SHIM

$

$

Not available

76

Toro 254-88

3/4 ROLLER BRG CONE

$107.99

$

Usually ships in 3-6 days

0

77

Toro 254-89

1.750 ROLLER BRG CUP

$

$

Not available

78

Toro 253-59

SEAL-OIL

$24.99

$

Usually ships in 3-6 days

0

79

Toro 5-7140

Shaft Worm

$

$

Not available

80

Toro 3257-23

KEY-WOODRUFF

$7.49

$

In Stock, only 2 left!

0

Toro 8-8820

Drift Breaker Kit

Note: Not illustrated

$

$

Not available

Toro 11-6960

Gear Case Assembly Complete

Note: Not illustrated

$

$

Not available
