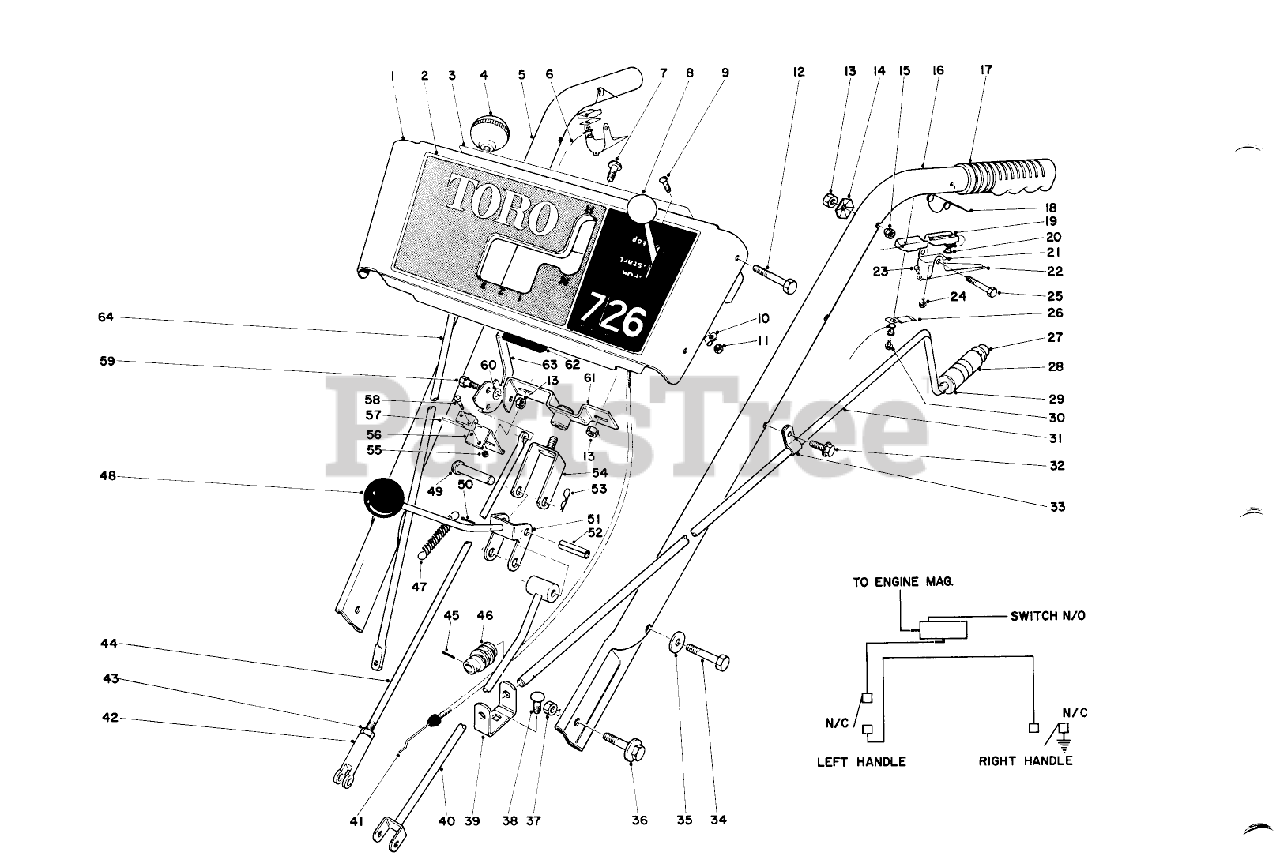

31763 (726) - Toro 26" Snow Thrower (SN: 003000001 - 003999999) (1973) Handle Assembly Parts Diagram

26" Snow Thrower

Handle Assembly Parts Diagram

  • Title

1

Toro 5-8689

See Supercession: 40-8470
(Superseded to 40-8470)

$

$

Not available

2

Toro 17-6650

Decal-Escutcheon

$

$

Currently unavailable

3

Toro 11-8390

DISCONTINUED

$

$

Not available

4

Toro 233-10

KNOB-LEVER

$61.99

$

Usually ships in 3-6 days

0

5

Toro 17-6760

Handle Right

$

$

Currently unavailable

6

Toro 17-7020

Wire Harness

$

$

Currently unavailable

7

Toro 3258-157

DISCONTINUED

$

$

Not available

8

Toro 233-25

KNOB-CONTROL

$5.49

$

In Stock, only 1 left!

0

9

Toro 3251-2

SCREW-PPH

$0.99

$

In Stock, Qty 5

0

10

Toro 2412-18

See Supercession: 2412-51
(Superseded to 2412-51)

$

$

Not available

11

Toro 32146-18

See Supercession: 32153-1
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 11

0

12

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

13

Toro 32146-17

See Supercession: 3296-42
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

14

Toro 3290-257

DISCONTINUED

$

$

Not available

15

Toro 32111-7

NUT-CAP

$8.49

$

In Stock, only 2 left!

0

16

Toro 17-6770

DISCONTINUED

$

$

Not available

17

Toro 6-0450

See Supercession: 74-1380
(Superseded to 74-1380)

$

$

Not available

18

Toro 17-5720

DISCONTINUED

$

$

Not available

19

Toro 17-5680

DISCONTINUE

$

$

Not available

20

Toro 17-5700

BUSHING-INSULATOR

$

$

Not available

21

Toro 17-5690

INTERLOCK CONTACT

$

$

Not available

22

Toro 17-5710

DISCONTINUED

$

$

Not available

23

Toro 3290-341

DISCONTINUED

$

$

Not available

24

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 5

0

25

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

26

Toro 17-6510

CONTACT BRACKET

$

$

Not available

27

Toro 3290-302

Speed Nut

$

$

Currently unavailable

28

Toro 6-0030

See Supercession: 20-2060
(Superseded to 20-2060)

$

$

Not available

29

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30

Toro 32104-75

See Supercession: 32144-34
(Superseded to 32144-34)

$4.99

$

In Stock, Qty 20+

0

31

Toro 8-8570

DISCONTINUED

$

$

Not available

32

Toro 32140-82

See Supercession: 32144-11
(Superseded to 32144-11)

$8.49

$

In Stock, only 2 left!

0

33

Toro 2412-10

CLAMP-R

$3.99

$

Usually ships in 3-6 days

0

34

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

35

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

36

Toro 3234-1

SCREW-HHF

$1.99

$

In Stock, Qty 14

0

37

Toro 32146-2

See Supercession: 32153-2
(Superseded to 32153-2)

$

$

Not available

38

Toro 3230-15

SCREW-CARR

$1.99

$

In Stock, only 4 left!

0

39

Toro 11-7110

DISCONTINUED
(Superseded to 117110-01)

$

$

Not available

40

Toro 11-8100

DISCONTINUED

$

$

Not available

41

Toro 8-7790

DISCONTINUED

$

$

Not available

42

Toro 5-0865

See Supercession: 39-4640
(Superseded to 39-4640)

$59.99

$

Usually ships in 3-6 days

0

43

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 20+

0

44

Toro 8-8030

See Supercession: 20-2310
(Superseded to 20-2310)

$

$

Not available

45

Toro 32121-50

PIN-SPRING

$3.49

$

In Stock, Qty 5

0

46

Toro 8-8600

GEAR-WORM, CHUTE

$147.99

$

Usually ships in 3-6 days

0

47

Toro 8-9900

DISCONTINUED

$

$

Not available

48

Toro 233-21

KNOB

$14.99

$

Usually ships in 3-6 days

0

49

Toro 283-5

PIN-CLEVIS

$13.99

$

Usually ships in 3-6 days

0

50

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 8

0

51

Toro 11-9090

See Supercession: 26-9370
(Superseded to 26-9370)

$

$

Not available

52

Toro 32121-42

PIN-ROLL

$2.99

$

In Stock, Qty 17

0

53

Toro 3290-322

PIN-HAIR

$1.49

$

Usually ships in 3-6 days

0

54

Toro 8-7910

See Supercession: 29-6490
(Superseded to 29-6490)

$

$

Not available

55

Toro 3296-52

NUT-LOCK, NI

$6.99

$

Usually ships in 3-6 days

0

56

Toro 17-6630

Bracket Switch

$

$

Currently unavailable

57

Toro 12-3320

MICRO SWITCH

$71.99

$

In Stock, only 1 left!

0

58

Toro 3290-93

SCREW-HEAD, PAN

$0.99

$

Usually ships in 3-6 days

0

59

Toro 11-9030

SCREW-SHOULDER

$7.49

$

Usually ships in 3-6 days

0

60

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 9

0

61

Toro 8-7930

DISCONTINUED

$

$

Not available

62

Toro 11-8970

DISCONTINUED

$

$

Not available

63

Toro 17-6620

DISCONTINUED

$

$

Not available

64

Toro 10-3900

Rod Wheel Clutch

$

$

Currently unavailable
