31763 (826) - Toro 26" Snow Thrower (SN: 007000001 - 007999999) (1977) WHEEL ASSEMBLY Parts Diagram

26" Snow Thrower

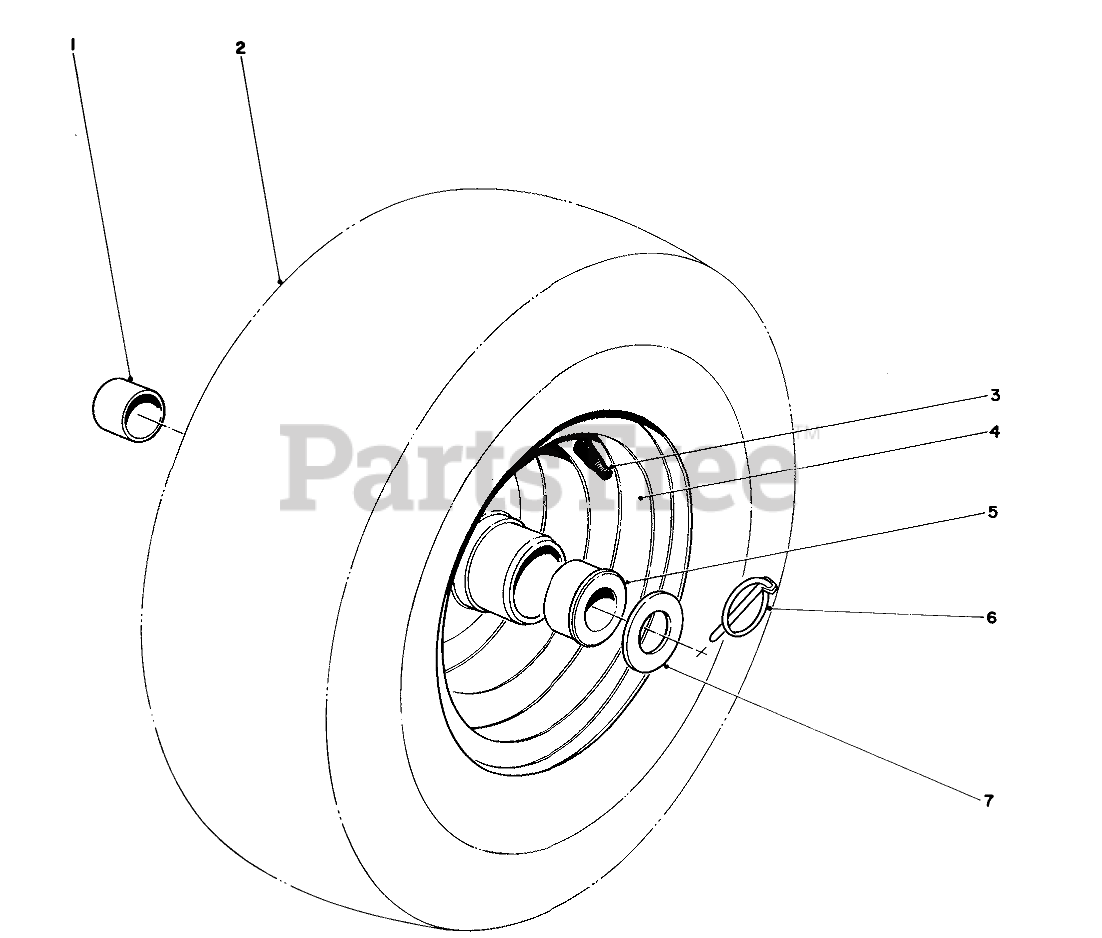

WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 256-205

.877ID X .750LG BSHG

$

$

Not available

2

Toro 231-78

TIRE

$

$

Not available

Toro 231-61

Tire-Tubeless

Note: Not illustrated

$

$

Not available

3

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$7.49

$

In Stock, Qty 7

0

4

Toro 26-9860

Wheel & Hub Assembly (Incl. Ref. #1 & 5) (Model 31763)

$

$

Not available

Toro 26-9870

Wheel & Hub Assembly (Incl. Ref. #1 &5) (Model 31823)

Note: Not illustrated

$

$

Not available

5

Toro 256-117

BUSHING

$5.99

$

Usually ships in 3-6 days

0

6

Toro 3290-243

PIN-LYNCH
(Superseded to 107-3039)

$11.99

$

In Stock, only 2 left!

0

7

Toro 3-8664

WASHER-THRUST

$6.99

$

In Stock, only 2 left!

0

Toro 17-7620

Tire Chains Optional

Note: Optional equipment

$

$

Not available

Toro 10-3200

Tire Chains (8 HP)

Note: Optional equipment

$

$

Currently unavailable
