317E140-000 - Yard Machines Snow Thrower (1997) Engine & V-Belt Parts Diagram

Snow Thrower

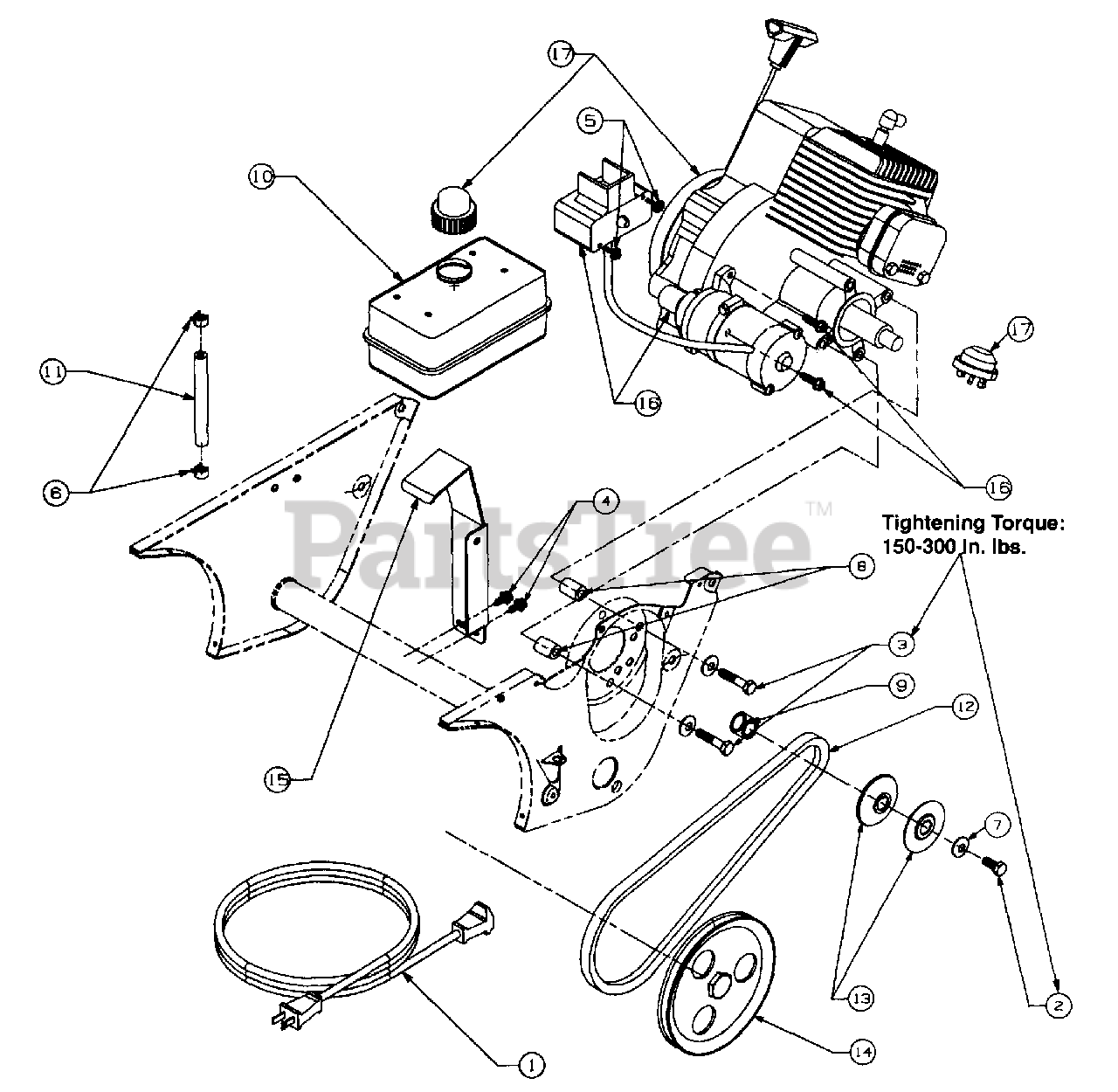

Engine & V-Belt Parts Diagram

  • Title

1

MTD 629-0236

Cord - Extension 110V3M 2 Prong

$

$

Not available

2

MTD 710-0157

Screw - Hex Cap

$4.49

$

In Stock, Qty 7

0

3

MTD 710-0442

Screw - Hex Cap
(Superseded to 710-0805A)

$4.99

$

In Stock, Qty 20+

0

4

MTD 710-0896

Screw - Washer

$4.49

$

In Stock, Qty 8

0

5

MTD 710-1003

Screw - Hex
(Superseded to 710-04669)

$3.99

$

In Stock, Qty 20+

0

6

MTD 726-0205

Hose Clamp

$4.49

$

In Stock, Qty 20+

0

7

MTD 736-0242

Washer - Bell

$4.99

$

In Stock, Qty 20+

0

8

MTD 750-0589

Spacer
(Superseded to 950-0589)

$6.99

$

Usually ships in 3-6 days

0

9

MTD 750-0716

Spacer
(Superseded to 750-0716A)

$

$

Not available

10

MTD 751-0352

Tank - Fuel 1 Qt.
(Superseded to TC-32660A)

$

$

Not available

11

MTD 751-0535-12

Hose - Fuel 12"
(Superseded to 751-10349-13)

$18.99

$

In Stock, only 4 left!

0

12

MTD 754-0367

V-Belt
(Superseded to 954-0367)

$29.99

$

In Stock, only 4 left!

0

13

MTD 756-0416B

V-Pulley Half
(Superseded to 956-0416B)

$11.99

$

In Stock, only 2 left!

0

14

MTD 756-0550

Pulley

$

$

Not available

15

MTD 784-5177

Engine Support Bracket

Variations

MTD 784-5177-0637

No Longer Available BRACKET-EN - POWDER BLACK (0637)

$

$

Not available

$

$

16

MTD 390-697-000

Electric Starter Kit

$

$

Currently unavailable

17

Note: (Obtain from Engine Manufacturer)

$

$

Not available
