317E262-000 - Yard Machines Snow Thrower (1997) Frame And Handle Group Parts Diagram

Snow Thrower

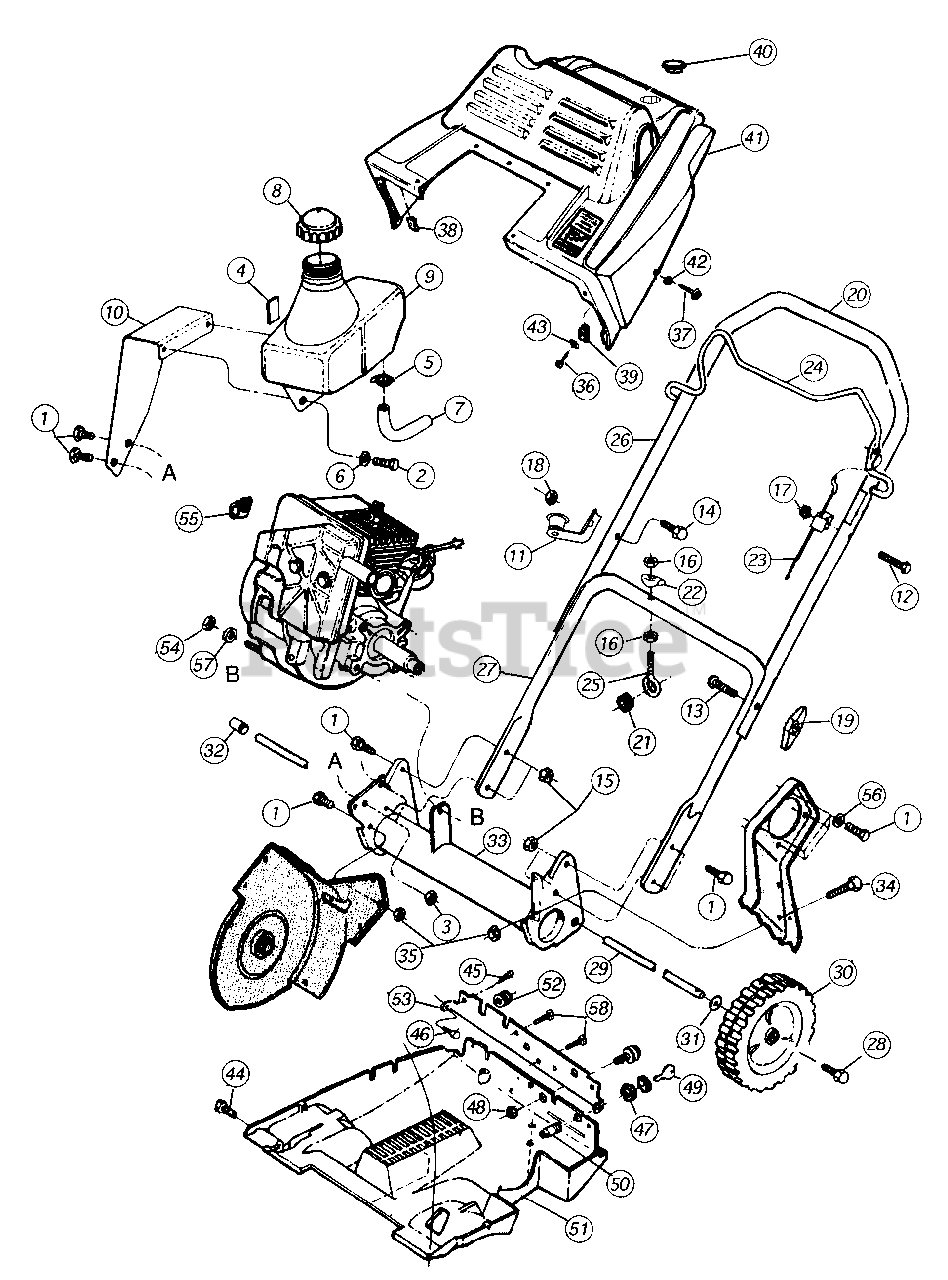

Frame And Handle Group Parts Diagram

  • Title

1

MTD 710-0118

Hex Screw: 5/16 - 18 x .75 Gr 2
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

2

MTD 710-0896

Hex Screw: 1/4 - 14 x .625

$3.99

$

In Stock, Qty 20+

0

3

MTD 712-0265

Sems Nut

$3.49

$

Usually ships in 3-6 days

0

4

MTD 722-0157

Foam Strip

$4.49

$

Usually ships in 3-6 days

0

5

MTD 726-0205

Hose Clamp 1/2" OD

$3.99

$

In Stock, Qty 20+

0

6

MTD 736-0173

Flat Washer

$3.99

$

In Stock, Qty 10

0

7

MTD 751-0535-12

Hose, Fuel Line
(Superseded to 751-10349-13)

$16.99

$

In Stock, Qty 7

0

8

MTD 751-0634

Fuel Tank Cap
(Superseded to 751-0603B)

$21.99

$

In Stock, Qty 20+

0

9

MTD 751-0635

Fuel Tank

$

$

Not available

10

MTD 784-0368

Support Bracket

$

$

Not available

11

MTD 684-0089

Bracket Assembly, Rope Guide

$

$

Not available

12

MTD 710-0501

Hex Screw: 1/4 - 20 x 2.0 Gr 5

$6.99

$

In Stock, only 1 left!

0

13

MTD 710-1174

Carriage Bolt: 5/16 - 18 x 2.0 Lg. Carved

$6.99

$

In Stock, Qty 20+

0

14

MTD 710-1270

Oval C-Sunk Screw

$4.49

$

In Stock, only 2 left!

0

15

MTD 712-0265

Sems Nut

$3.49

$

Usually ships in 3-6 days

0

16

MTD 712-0267

Hex Nut: 5/16 - 18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

17

MTD 712-0271

Sems Nut 1/4 - 20

$4.49

$

In Stock, Qty 20+

0

18

MTD 712-0324

Top Lock Nut 1/4 - 20

$3.49

$

In Stock, Qty 20+

0

19

MTD 720-0284

Knob Assembly

$6.49

$

In Stock, Qty 20+

0

20

MTD 720-0296

Foam Grip, Handle

$

$

Not available

21

MTD 735-0234

Grommet: .44 ID x .94 OD x .50

$4.99

$

In Stock, only 3 left!

0

22

MTD 736-0451

Side Lock Washer

$3.99

$

In Stock, only 2 left!

0

23

MTD 746-0934

Drive Cable, Auger

$

$

Not available

24

MTD 747-0942

Auger Bail, Drive Dipped

$

$

Not available

25

MTD 747-0943

Eye Bolt 5/16 - 18

$

$

Not available

26

MTD 749-0994

Upper Handle

Variations

MTD 749-0994-0637

No Longer Available HANDLE-UPP - POWDER BLACK (0637)

$

$

Not available

$

$

27

MTD 749-0995

Lower Handle
(Superseded to 749-0995-0637)

Variations

MTD 749-0995-0637

HANDLE-LOWER - POWDER BLACK (0637)

$

$

Not available

$

$

28

MTD 710-0773

Tap Screw: 3/8 - 16 x .5

$6.99

$

In Stock, Qty 5

0

29

MTD 711-1123

Axle, Tube

$

$

Not available

30

MTD 734-1797

Wheel Assembly (Gray)

$

$

Not available

MTD 734-1799

Wheel Assembly (Yellow)
(Superseded to 734-04062A)

$22.99

$

Usually ships in 3-6 days

0

31

MTD 736-0108

Flat washer: .510 ID x .75 OD x .03

$6.49

$

Usually ships in 3-6 days

0

32

MTD 750-1069

Spacer
(Superseded to 950-1069)

$

$

Not available

33

MTD 684-0086

Frame Assembly

Variations

MTD 684-0086-0637

Frame Assembly - POWDER BLACK (0637)

$

$

Not available

$

$

34

MTD 710-1088

Hex Cap Screw: 5/16 - 18 x 1.00

$

$

Not available

35

MTD 712-0265

Sems Nut

$3.49

$

Usually ships in 3-6 days

0

36

MTD 710-1329

Hex Screw

$

$

Not available

37

MTD 710-1339

Ab Screw

$

$

Not available

38

MTD 726-0342

Retainer Clip, U-Style

$

$

Not available

39

MTD 726-0344

U Nut

$

$

Not available

40

MTD 731-0732

Snap-In Plug

$

$

Not available

41

MTD 731-1748

Upper Engine Cover (Gray)

$

$

Not available

MTD 731-1754

Upper Engine Cover (Orange)

$

$

Not available

MTD 731-1750

Upper Engine Cover (Yellow)

$

$

Not available

42

MTD 736-0173

Flat Washer

$3.99

$

In Stock, Qty 10

0

43

MTD 736-0400

Flat Washer

$4.99

$

In Stock, Qty 16

0

44

MTD 710-0258

Hex Screw: 1/4 - 20 x .625
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

45

MTD 710-1334

Tap Screw: 10 - 24 x .75

$

$

Not available

46

MTD 710-1335

Tap Screw: 10 - 25 x .75

$

$

Not available

47

MTD 712-0252

Jam Nut: 5/8 - 32 x .12

$5.49

$

Usually ships in 3-6 days

0

48

MTD 712-0271

Sems Nut 1/4 - 20

$4.49

$

In Stock, Qty 20+

0

49

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$8.99

$

In Stock, Qty 14

0

50

MTD 725-3232

Key Switch

$

$

Not available

51

MTD 731-1747

Lower Engine Cover (Gray)

$

$

Not available

MTD 731-1753

Lower Engine Cover (Orange)

$

$

Not available

MTD 731-1749

Lower Engine Cover (Yellow)

$

$

Not available

52

MTD 750-1049

Grommet: .280 x .750 x .40

$

$

Currently unavailable

53

MTD 784-0361

Control Panel

$

$

Not available

54

MTD 712-0265

Sems Nut 5/16 - 18

$3.49

$

Usually ships in 3-6 days

0

55

MTD 726-0152

Mounting Clamp

$

$

Not available

56

MTD 736-0119

Lock Washer
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

57

MTD 736-0275

Flat Washer

$6.49

$

Usually ships in 3-6 days

0

58

MTD 710-1003

Tap Screw
(Superseded to 710-04669)

Note: (Electric Start Models Only)

$3.49

$

In Stock, Qty 20+

0

?59

MTD 629-0236

Cord Assembly

Note: (Electric Start Models Only

$

$

Not available
