317E980I000 - MTD Snow Thrower (1997) Handle Panel Support Assembly Parts Diagram

Snow Thrower

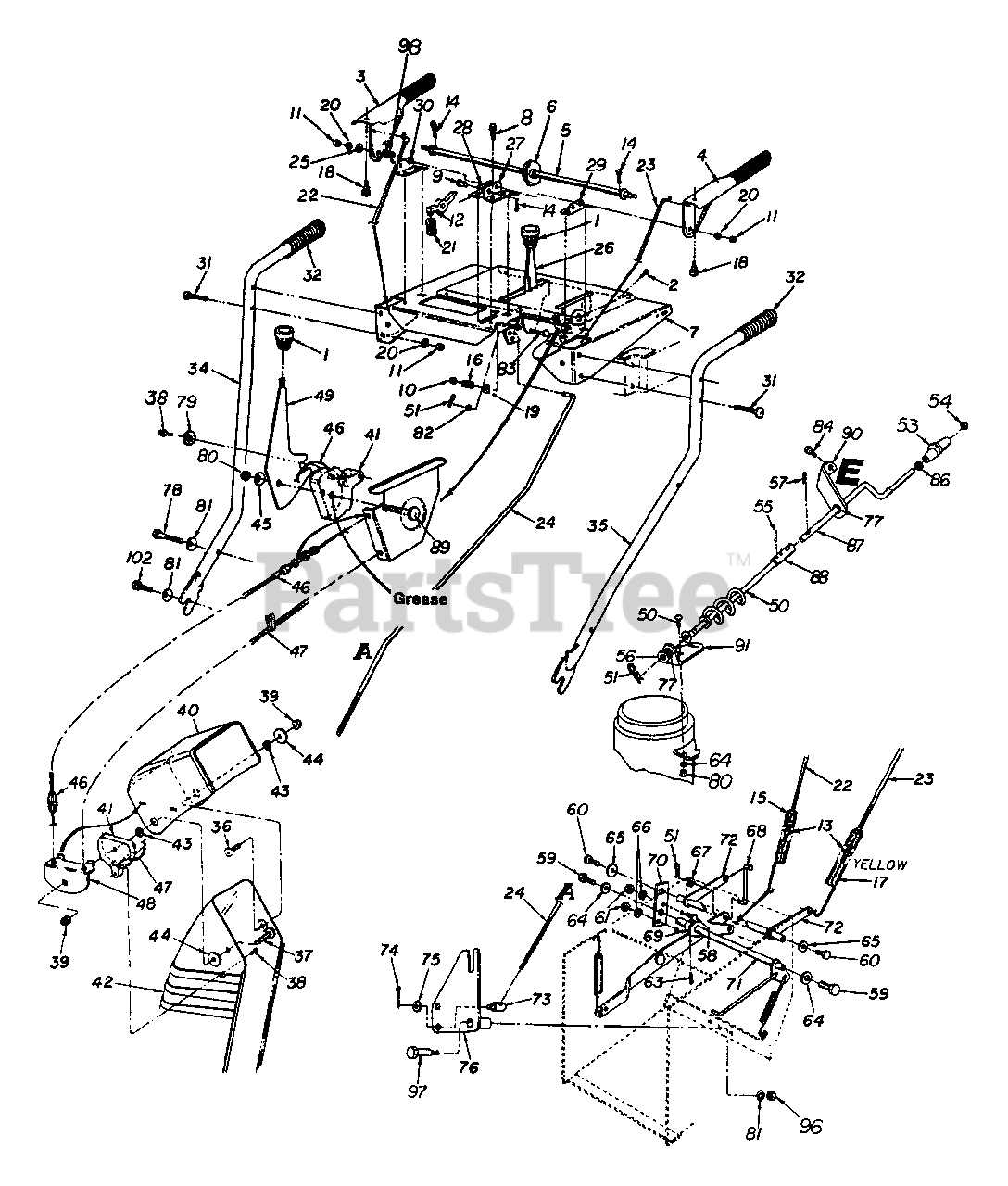

Handle Panel Support Assembly Parts Diagram

  • Title

1

MTD 720-0232

Ball Knob
(Superseded to 920-0232)

$11.99

$

In Stock, Qty 7

0

2

MTD 710-0351

Pan Head B-Tapp Scr. #10 x .50

$4.99

$

In Stock, Qty 20+

0

3

MTD 705-5218

Engagement Handle R.H. Black

$

$

Not available

MTD 705-5220

Engagement Handle R.H. Red

$

$

Currently unavailable

4

MTD 705-5219

Engagement Handle L.H. Black

$37.99

$

Usually ships in 3-6 days

0

MTD 705-5221

Engagement Handle L.H. Red

$

$

Currently unavailable

5

MTD 747-0877

Cam Rod

$24.99

$

Usually ships in 3-6 days

0

6

MTD 748-0362

Clutch Lock Cam

$8.49

$

Usually ships in 3-6 days

0

7

MTD 684-0102

Handle Panel Support Ass'y.
(Superseded to 684-0102A)

Variations

MTD 684-0102-0638

PANEL ASM:HANDLE - MTD/TROY-BILT RED (0638)

$143.99

$

Usually ships in 3-6 days

0

MTD 684-0102-0650

PANEL ASM:HANDLE - RED METALLIC (0650)

$124.99

$

Usually ships in 3-6 days

0

MTD 684-0102-0662

PANEL ASM:HANDLE - OYSTER GRAY (0662)

$143.99

$

Usually ships in 3-6 days

0

MTD 684-0102-0665

PANEL ASM:HANDLE - YARDMAN GREEN (0665)

$143.99

$

Usually ships in 3-6 days

0

MTD 684-0102-0689

PANEL ASM:HANDLE - POLO GREEN (0689)

$124.99

$

Usually ships in 3-6 days

0

MTD 684-0102-0716

HANDLE PANEL ASSEMBLY (CUB YELLOW-99) - CUB YELLOW-99 (0716)

$153.99

$

Usually ships in 3-6 days

0

MTD 684-0102-0721

PANEL ASM:HANDLE - SEARS RED (0721)

$141.99

$

Usually ships in 3-6 days

0

$141.99

$

Usually ships in 3-6 days

0

MTD 684-0033A

Handle Panel Support Ass'y.

Variations

MTD 684-0033A-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 684-0033A-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 684-0033A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 684-0033A-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-0033A-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 684-0033A-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 684-0033A-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

8

MTD 710-0599

Hex Wash. SF Tapp Scr. 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

9

MTD 711-0653

Clevis Pin .81 Dia. x 1.0" Lg.

$4.49

$

Usually ships in 3-6 days

0

10

MTD 712-0116

Hex Nut 3/8-24

$4.99

$

In Stock, only 3 left!

0

11

MTD 712-0267

Hex Nut 5/16-18
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

12

MTD 748-0363

Cam Lock Paul
(Superseded to 948-0363)

$17.99

$

Usually ships in 3-6 days

0

13

MTD 712-0324

Hex Ins. Lock Nut 1/4-20

$3.99

$

In Stock, only 3 left!

0

14

MTD 714-0111

Cotter Pin 3/32 Dia. x 1.00 Lg.

$5.49

$

In Stock, Qty 20+

0

15

MTD 732-0184

Extension Spring

$26.99

$

Usually ships in 3-6 days

0

16

MTD 732-0193

Compression Spring .38 I.D. x .88 Lg.

$4.99

$

In Stock, only 2 left!

0

17

MTD 732-0463

Extension Spring .76 O.D. x 5" Lg.
(Superseded to 732-0463A)

$20.99

$

In Stock, only 2 left!

0

18

MTD 735-0199A

Rubber Bumper

$8.49

$

In Stock, Qty 18

0

19

MTD 736-0105

Bell-Wash. .400 I.D. x .88 O.D. x .06

$4.99

$

In Stock, Qty 20+

0

20

MTD 736-0119

L-Wash. 5/16 I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

21

MTD 732-0145

Compression Spring

$4.99

$

Usually ships in 3-6 days

0

22

MTD 746-0694

Lockout Cable x 28" Small

$27.99

$

Usually ships in 3-6 days

0

23

MTD 746-0716

Lockout Cable x 25" Small

$28.99

$

Usually ships in 3-6 days

0

24

MTD 747-0821

Shift Rod 34.25" Lg.

$

$

Not available

25

MTD 736-0509

Washer (Special)

$7.49

$

In Stock, only 1 left!

0

26

MTD 784-5619

Shift Lever
(Superseded to 753-05395)

$

$

Not available

27

MTD 784-5679

L.H. Handle Support Brkt. 5/8
(Superseded to 784-5679-0637)

Variations

MTD 784-5679-0637

BRACKET-HANDLE-LH - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

28

MTD 784-5680

R.H. Handle Support Brkt. 5/8
(Superseded to 784-5680-0637)

Variations

MTD 784-5680-0637

BRACKET-HDL SUP-RH - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

$13.99

$

Usually ships in 3-6 days

0

29

MTD 784-5681

L.H. Handle Support Brkt. 3/8

Variations

MTD 784-5681-0637

BRACKET-HANDLE SUP - POWDER BLACK (0637)

$9.99

$

Usually ships in 3-6 days

0

$9.99

$

Usually ships in 3-6 days

0

30

MTD 784-5682

R.H. Handle Support Support Brkt. 3.8
(Superseded to 784-5682-0637)

Variations

MTD 784-5682-0637

Handle Support Bracket - POWDER BLACK (0637)

$29.99

$

Usually ships in 3-6 days

0

$29.99

$

Usually ships in 3-6 days

0

31

MTD 710-0458

Carriage Blt 5/16-18 x 1.75" Lg.

$4.49

$

Usually ships in 3-6 days

0

32

MTD 720-0144

Grip
(Superseded to 720-04083)

$15.99

$

In Stock, only 2 left!

0

34

MTD 748-0912

r.H. Handle Black

$

$

Currently unavailable

35

MTD 749-0913

L.H. Handle Black

Variations

MTD 749-0913-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

36

MTD 710-0276

Carriage Bolt 5/16-18 x 1.00" Lg.

$4.49

$

In Stock, Qty 20+

0

37

MTD 710-0458

Carriage Bolt 5/16-18 x .175" Lg.

$4.49

$

Usually ships in 3-6 days

0

38

MTD 710-0776A

Hex Wash. AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 8

0

39

MTD 712-0429

Hex Insert L-Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

40

MTD 731-0849

Upper Chute Remote Tilt
(Superseded to 731-0846C)

$55.99

$

In Stock, only 3 left!

0

41

MTD 731-1313B

Cable Guide
(Superseded to 731-1313C)

$12.99

$

In Stock, Qty 16

0

42

MTD 731-1318

Lower Chute Remote Tilt
(Superseded to 731-0903E)

$45.99

$

In Stock, Qty 8

0

43

MTD 731-1319

Chute Pivot Spacer
(Superseded to 931-1319)

$

$

Not available

44

MTD 736-0159

Fl-Wash. .349 I.D. x .679 O.D. x .063

$4.49

$

In Stock, Qty 20+

0

45

MTD 736-0425

Bell-Wash. .325 I.D. x .930 O.D. x .04

$4.99

$

In Stock, Qty 13

0

46

MTD 746-0902

Chute Control Cable 66"
(Superseded to 946-0902)

$52.99

$

Usually ships in 3-6 days

0

47

MTD 746-0903

Chute Control Cable w/Clip
(Superseded to 946-0903)

$56.99

$

In Stock, only 1 left!

0

48

MTD 784-5594

Cable Bracket Chute Tilt

Variations

MTD 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$12.99

$

In Stock, only 2 left!

0

MTD 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$12.99

$

In Stock, only 2 left!

0

MTD 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$12.99

$

In Stock, only 2 left!

0

$11.99

$

Usually ships in 3-6 days

0

49

MTD 784-5604

Chute Tilt Handle
(Superseded to 784-5604A-0637)

Variations

MTD 784-5604-0637

Chute Handle Bracket - POWDER BLACK (0637)

$26.99

$

Usually ships in 3-6 days

0

$26.99

$

Usually ships in 3-6 days

0

50

MTD 684-0053

Lower Chute Crank Ass'y.
(Superseded to 684-0053B-0637)

Variations

MTD 684-0053-0637

Chute Crank Assembly, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

51

MTD 714-0104

Int. Cotter Pin 5/16 Dia.

$4.49

$

In Stock, Qty 16

0

?52

MTD 710-0451

Carriage Bolt 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

53

MTD 720-0201A

Knob

$11.99

$

In Stock, only 2 left!

0

54

MTD 726-0102

Cap Speed Nut 3/8" Rod
(Superseded to 926-0100)

$

$

Not available

55

MTD 715-0138

Serrated Pin
(Superseded to 915-0138)

$5.49

$

In Stock, only 2 left!

0

56

MTD 736-0185

Fl-Wash. .406 I.D. x .74 O.D. x .063

$4.49

$

In Stock, only 4 left!

0

57

MTD 714-0101

Int. Cotter Pin

$4.99

$

In Stock, only 2 left!

0

58

MTD 710-0258

Hex Screw 1/4-20 x .62
(Superseded to 710-0751)

$4.49

$

In Stock, Qty 20+

0

59

MTD 710-0538

Hex L-Bolt 5/16-18 x .62

$4.99

$

In Stock, only 2 left!

0

60

MTD 710-0739

Hex Scr. 1/4-20 x .50 w/Patch

$

$

Currently unavailable

61

MTD 712-0287

Hex Nut 1/4-20
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

63

MTD 715-0246

Roll Pin 3/16- x 1.25
(Superseded to 915-0246)

$7.49

$

In Stock, only 4 left!

0

64

MTD 736-0159

Fl-Wash. .344 I.D. x .875 O.D.

$4.49

$

In Stock, Qty 20+

0

65

MTD 736-0176

Fl-Wash. .25 I.D. x .93 O.D. x .125

$4.99

$

In Stock, Qty 20+

0

66

MTD 736-0329

L-Wash. 1/4 I.D.
(Superseded to 936-0329)

$4.99

$

In Stock, Qty 16

0

67

MTD 736-0463

Fl-Wash. .281 I.D. x .62 O.D. x .051

$4.99

$

In Stock, Qty 20+

0

68

MTD 747-0735

"L" Rod .25 Dia. x 4.70" Lg.

$

$

Not available

69

MTD 784-5557

Drive Clutch Brkt. 627 R.H. Ass'y.

$

$

Currently unavailable

70

MTD 784-5562

Rivot Bracket .63 Hole

$

$

Currently unavailable

71

MTD 784-5563

Drive Clutch Shaft Ass'y.

$

$

Not available

72

MTD 784-5565

Pivot Cross Shaft Ass'y.

$

$

Currently unavailable

73

MTD 711-0628

Adjustment Ferrule

$

$

Not available

74

MTD 714-0507

Cotter Pin 3/32 x .75

$4.99

$

In Stock, only 3 left!

0

75

MTD 736-0264

Fl-Wash. .344 I.D. x .625 O.D. x .063

$7.49

$

In Stock, only 2 left!

0

76

MTD 784-5133

Sliding Linkage Bracket Ass'y.

Variations

MTD 784-5133-0637

No Longer Available BRACKET AS - POWDER BLACK (0637)

$

$

Not available

$

$

77

MTD 741-0475

Plastic Bushing .380 I.D.
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

78

MTD 710-0347

Hex Screw 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

79

MTD 736-0506

Contour Washer
(Superseded to 736-0506A)

$

$

Not available

80

MTD 712-0158

Hex Cent. L-Nut 5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 14

0

81

MTD 736-0105

Bell-Wash. .400 I.D. x .88 O.D. x .05

$4.99

$

In Stock, Qty 20+

0

82

MTD 736-0264

Fl-Wash. .344 I.D. x .625 O.D. x .063

$7.49

$

In Stock, only 2 left!

0

83

MTD 710-0459

Hex Cap Scr. 3/8-24 x 1.5
(Superseded to 710-0459A)

$7.49

$

In Stock, Qty 11

0

84

MTD 710-0851

Hex Scr. 1/4-20 x .75

$

$

Currently unavailable

86

MTD 736-0117

Flat Washer
(Superseded to 936-0117)

$7.49

$

In Stock, only 2 left!

0

87

MTD 747-0624

Upper Chute Crank Ass'y.
(Superseded to 747-0624-0637)

Variations

MTD 747-0624-0637

Crank Chute - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

88

MTD 750-0785

Spacer 3/8 I.D. x 12.5
(Superseded to 950-0785)

$32.99

$

Usually ships in 3-6 days

0

89

MTD 710-0528

Hex Cap Screw 5/16-18 x 1.25

$4.99

$

In Stock, Qty 20+

0

90

MTD 705-5266

Upper Chute Crank Bracket
(Superseded to 705-5266-0637)

Variations

MTD 705-5266-0637

Chute Crank Bracket - POWDER BLACK (0637)

$16.99

$

Usually ships in 3-6 days

0

$16.99

$

Usually ships in 3-6 days

0

91

MTD 705-5216

Lower Chute Crank Bracket

Variations

MTD 705-5216-0637

No Longer Available BRACKET-CH - POWDER BLACK (0637)

$

$

Not available

$

$

96

MTD 712-0342

Hex Jam Nut 3/8-16
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 12

0

97

MTD 738-0129

Shoulder Screw .498 x 2.00

$11.99

$

Usually ships in 3-6 days

0

98

MTD 732-0746

Torsion Spring

$4.99

$

In Stock, Qty 11

0

102

UNKNOWN

$

$

Not available
