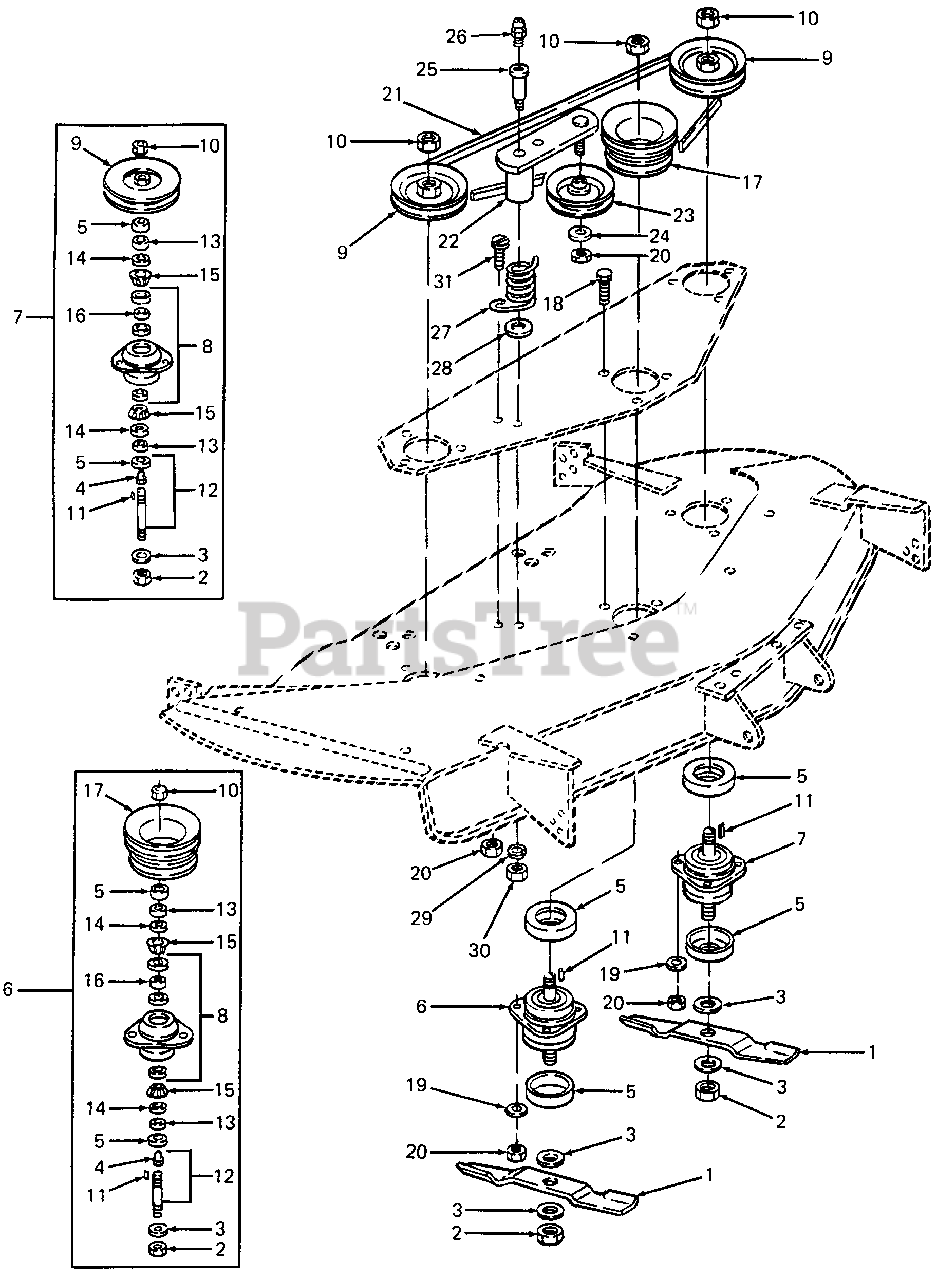

318 (190-318-100) - Cub Cadet 44" Mower Deck Blades & Spindles Parts Diagram

44" Mower Deck

Blades & Spindles Parts Diagram

  • Title

1

Cub Cadet 742-3002

Blade, Mower, 15.12 Lg
(Superseded to 759-3812)

Variations

Cub Cadet 742-3002-0637

Mower Blade, 15.12" Lg - POWDER BLACK (0637)

$26.99

$

In Stock, Qty 5

0

$26.99

$

In Stock, Qty 5

0

Cub Cadet 759-3402

Blade, Mower, Hard Coated
(Superseded to 759-3838)

$71.99

$

In Stock, Qty 11

0

2

Cub Cadet 712-3018

Nut, Hex, 3/4-16 GR8

$8.49

$

In Stock, Qty 10

0

3

Cub Cadet 736-3014

Washer, Flat, .781 X 2.0 X .105 - Hdn

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 737-3000

Fitting, Lube, 3/16
(Superseded to 937-3000)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 703-1387

Cup, Spindle (HDN)
(Superseded to 903-1387)

$23.99

$

In Stock, Qty 16

0

6

Cub Cadet 759-3662

Spindle Service Kit - Center

Note: (Includes Mtg. Hardware)

$

$

Not available

7

Cub Cadet 759-3293

Spindle Service Kit - Outside
(Superseded to 959-3293)

Note: (Includes Mtg. Hardware)

$

$

Not available

8

Cub Cadet 759-3226

Housing, Spindle w/Cups
(Superseded to 959-3226)

$124.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 756-3008

4L V-Pulley, 4.62 OD X .75 ID

$50.99

$

In Stock, Qty 16

0

10

Cub Cadet 712-3026

Nut, Hex Jam, 3/4-16

$4.99

$

In Stock, Qty 10

0

11

Cub Cadet 714-0135

Key, #91 Woodruff, 1/4 X 3/4 - Hdn

$4.49

$

In Stock, Qty 9

0

12

Cub Cadet 759-3370

Kit, Shaft w/Seal
(Superseded to 959-3370)

$87.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 711-3171

Spacer, .755 X 1.25 X .44 Lg
(Superseded to 911-3171)

$10.99

$

In Stock, Qty 8

0

14

Cub Cadet 721-3018

Seal, Oil, 1.25 X 1.874 X .25
(Superseded to 921-3018A)

$7.99

$

In Stock, Qty 20+

0

15

Cub Cadet 741-3028

Cone, Bearing
(Superseded to 941-04298)

$15.99

$

In Stock, Qty 20+

0

16

Cub Cadet 741-3030

Spacer, Bearing
(Superseded to 941-3030)

$11.99

$

In Stock, Qty 6

0

17

Cub Cadet 756-3055

Pulley, Double

$115.99

$

In Stock, only 1 left!

0

18

Cub Cadet 710-0514

Screw, Hex Cap, 3/8-16 X 1.0 Lg GR5

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 736-0258

Washer, Flat, .378 X 1.0 X .127 Thk

$4.49

$

In Stock, only 2 left!

0

20

Cub Cadet 712-0431

Nut, Hex Flanged Lock
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

21

Cub Cadet 754-3004

Belt, Spindle Drive
(Superseded to 954-3004)

$48.99

$

In Stock, Qty 13

0

22

Cub Cadet 703-0118

Arm Assy, Idler
(Superseded to 759-04324B)

$175.99

$

In Stock, Qty 18

0

23

Cub Cadet 756-3005

Pulley, Flat Idler

$42.99

$

In Stock, Qty 20+

0

24

Cub Cadet 736-0185

Washer, Flat, .406 X .75 X .063 Thk

$3.49

$

In Stock, Qty 17

0

25

Cub Cadet 738-3005A

Bolt, Shoulder
(Superseded to 638-04012A)

$20.99

$

In Stock, Qty 20+

0

26

Cub Cadet 737-3000

Fitting, Lube, 3/16 Drive
(Superseded to 937-3000)

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 732-3009

Spring, Torsion
(Superseded to 932-3009)

$22.99

$

In Stock, Qty 20+

0

28

Cub Cadet 736-3015

Washer, Flat, .469 X .875 X .105 Thk
(Superseded to 936-3015)

$3.99

$

In Stock, Qty 5

0

29

Cub Cadet 736-0171

Washer, Lock, 7/16

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 712-3019

Nut, Hex, 7/16-14 GR5

$6.49

$

In Stock, only 4 left!

0

31

Cub Cadet 710-3024

Screw, Truss Hd, 3/8-16 X .75 Lg

$

$

Not available
