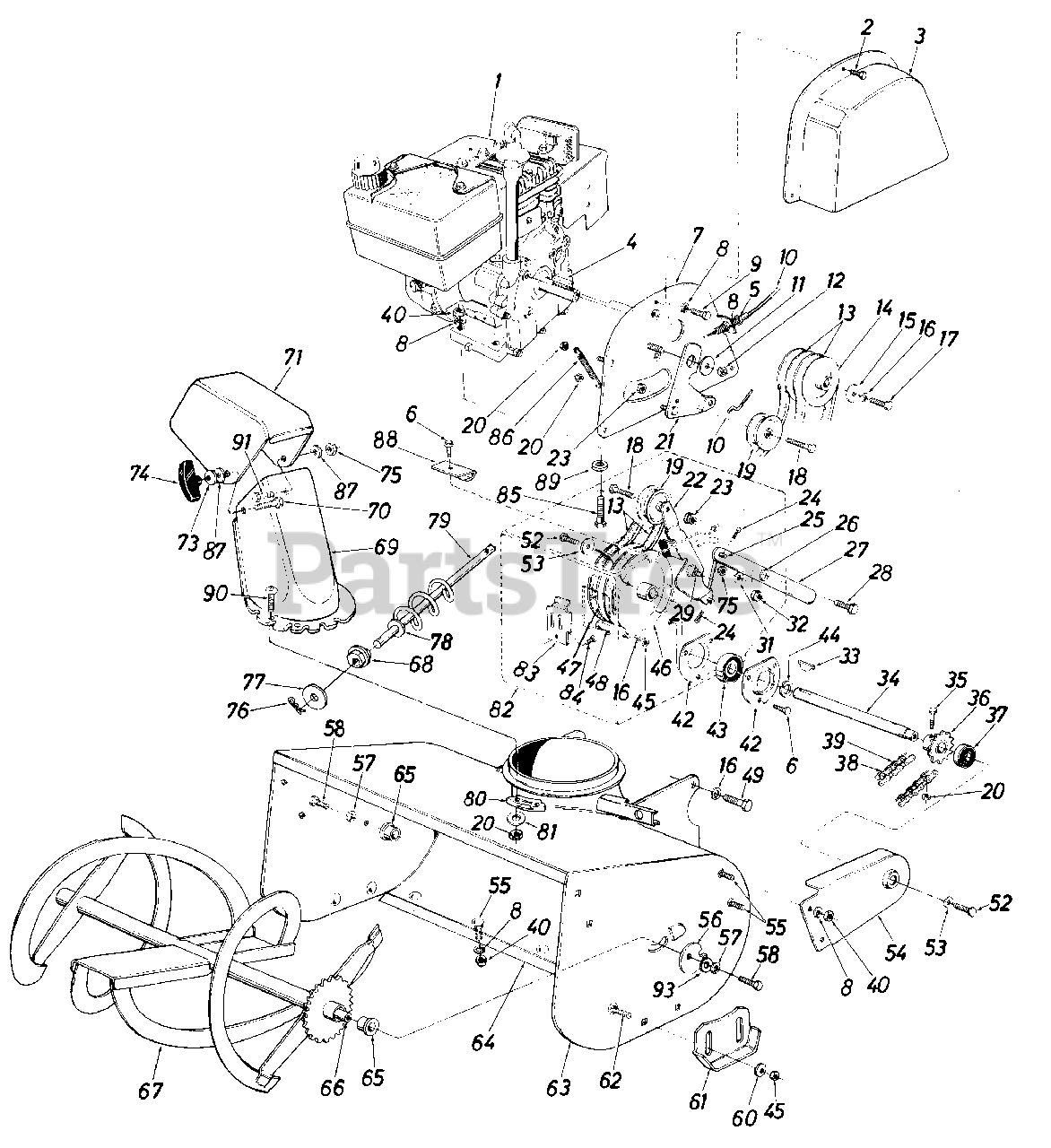

318-225-000 - MTD Snow Thrower (1988) Parts, Snow Thrower Parts Diagram

Snow Thrower

Parts, Snow Thrower Parts Diagram

  • Title
1

Part#

4 H.P. Engine-Tecumseh HSSK40-55559
Usually ships same day

Not available

$

$

2

MTD Part# 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)
Usually ships in 1 day

$

$2.53

0

3

MTD Part# 05621

Belt Cover
Usually ships same day

Not available

$

$

4

MTD Part# 714-0105

Sq. Key 3/16 x 1.00" Lg.
(Superseded to 914-0105)
Usually ships in 1 day

$

$2.58

0

5

MTD Part# 712-0256

Hex Jam Nut 5/16-24 Thd.
Usually ships in 5 to 10 days

$

$4.81

0

6

MTD Part# 710-0600

Hex Wash. Hd. Self-Tap Scr. 5/16-24 x .50" Lg.
Usually ships in 1 day

$

$2.53

0

7

MTD Part# 05821

Engine Plate Ass'y.
Usually ships same day

Currently unavailable

$

$

8

MTD Part# 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)
Usually ships in 1 day

$

$3.41

0

9

MTD Part# 710-0237

Hex Bolt 5/16-24 x .62" Lg.*
Usually ships in 1 day

$

$3.15

0

10

MTD Part# 746-0374

Drive Clutch Control Cable
(Superseded to 946-0374)
Usually ships in 5 to 10 days

$

$39.31

0

11

MTD Part# 738-0347

Shld. Spacer
(Superseded to 938-0347)
Usually ships in 1 day

$

$7.16

0

12

MTD Part# 712-0116

Hex Ins. Jam L-Nut 3/8-24 Thd.
(Superseded to 912-0116)
Usually ships same day

Not available

$

$

13

MTD Part# 754-0205

V-Belt
(Superseded to 954-0205)
Usually ships in 5 to 10 days

$

$24.42

0

14

MTD Part# 756-0257

Engine Pulley
Usually ships same day

Not available

$

$

15

MTD Part# 736-0247

Fl-Wash. .40 I.D. x 1.25 O.D. x .157
Usually ships in 1 day

$

$7.00

0

16

MTD Part# 736-0169

L-Wash. 3/8" I.D.
(Superseded to 936-0169)
Usually ships in 1 day

$

$2.64

0

17

MTD Part# 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.
Usually ships in 1 day

$

$3.23

0

18

MTD Part# 710-0723

Hex Bolt 3/8-16 x 1.25" Lg.
Usually ships in 5 to 10 days

$

$3.23

0

19

MTD Part# 756-0137

Flat Idler 2.25 O.D.
Usually ships same day

Not available

$

$

20

MTD Part# 712-0107

Hex Cent. L-Nut 1/4-20 Thd.
(Superseded to 912-0107)
Usually ships in 1 day

$

$3.26

0

21

MTD Part# 05823

Drive Idler Bracket Ass'y.
Usually ships same day

Currently unavailable

$

$

22

MTD Part# 05556

Thrower Idler Bracket Ass'y.
Usually ships same day

Currently unavailable

$

$

23

MTD Part# 712-0266

Hex Cent. Jam L-Nut 318-16 Thd.
(Superseded to 712-0266A)
Usually ships in 1 day

$

$2.76

0

24

MTD Part# 714-0507

Coter Pin 3/32" Dia. x .75"
(Superseded to 914-0507)
Usually ships in 1 day

$

$3.15

0

25

MTD Part# 747-0174

Clutch Rod 5/16" Dia. x 2.88 Lg.
Usually ships same day

Currently unavailable

$

$

26

MTD Part# 748-0233

Shoulder Spacer
Usually ships same day

Currently unavailable

$

$

27

MTD Part# 05559

Thrower Clutch Bracket
Usually ships same day

Currently unavailable

$

$

28

MTD Part# 710-0322

Hex Sems Scr. 5/16-18 x 1.00" Lg.
Usually ships same day

Not available

$

$

29

MTD Part# 738-0281

Shoulder Scr. .625" Dia. x .170"
(Superseded to 938-0281)
Usually ships in 5 to 10 days

$

$7.36

0

31

MTD Part# 736-0231

Fl-Wash. .34 I.D. x 1.12 O.D. x .125
(Superseded to 936-0231)
Usually ships in 5 to 10 days

$

$3.23

0

32

MTD Part# 712-0266

Hex Jam L-Nut 3/8-16 Thd.
(Superseded to 712-0266A)
Usually ships in 1 day

$

$2.76

0

33

MTD Part# 714-0138

Woodruff Key 5/32 x 5/8 Dia.
Usually ships same day

Not available

$

$

34

MTD Part# 753-0206

Thrower Shaft 20" and Snap Ring
Usually ships same day

Not available

$

$

35

MTD Part# 710-0606

Hex Bolt 1/4-20 x 1.5" Lg.
Usually ships in 1 day

$

$3.74

0

36

MTD Part# 05156

14 Teeth Sprocket Hub Ass'y.
Usually ships same day

Not available

$

$

37

MTD Part# 741-0155

Ball Bearing .625 I.D. x 1.38 O.D. x .438
(Superseded to 941-0155)
Usually ships in 1 day

$

$17.54

0

38

MTD Part# 713-0106

#41 Chain-1/2" Pitch x 63 Links
(Superseded to 913-0106)
Usually ships same day

Not available

$

$

39

MTD Part# 713-0723

#41 Master Link 1/2" Pitch
(Superseded to 913-0723)
Usually ships same day

Not available

$

$

40

MTD Part# 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)
Usually ships in 5 to 10 days

$

$3.11

0

42

MTD Part# 05244

Bearing Housing
(Superseded to 05244B)
Usually ships in 1 day

$

$16.84

0

43

MTD Part# 741-0174

Self Align. Brg. .750 I.D.
(Superseded to 941-0174)
Usually ships in 5 to 10 days

$

$88.47

0

44

Part#

See Ref. No. 34
Usually ships same day

Not available

$

$

45

MTD Part# 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)
Usually ships in 1 day

$

$3.27

0

46

MTD Part# 756-0258

1/2" V-Pulley .753 I.D.
Usually ships same day

Currently unavailable

$

$

47

MTD Part# 756-0325

5.25" O.D. Pulley with 9 Teeth Sprocket
Usually ships same day

Currently unavailable

$

$

48

MTD Part# 738-0418

Shoulder Scr. .498" Dia. x 2.62" Lg.
(Superseded to 938-0481A)
Usually ships in 1 day

$

$5.00

0

49

MTD Part# 710-0623

Hex Self-Tap Scr. 3/8-16 x .75"
Usually ships in 1 day

$

$3.12

0

52

MTD Part# 710-0538

Hex L-Bolt 5/16-18 x .62" Lg.
Usually ships in 1 day

$

$3.19

0

53

MTD Part# 736-0242

Belleville Wash. .34 I.D. x .88 O.D. x .060
Usually ships in 1 day

$

$3.00

0

54

MTD Part# 05563

Chain Guard
Usually ships same day

Currently unavailable

$

$

55

MTD Part# 710-0260

Carriage Bolt 5/16-18 x .62" Lg.
(Superseded to 710-0260A)
Usually ships in 1 day

$

$2.98

0

56

MTD Part# 06605

Chain Adjuster
Usually ships same day

Currently unavailable

$

$

57

MTD Part# 736-0169

L-Wash. 3/8" I.D.
(Superseded to 936-0169)
Usually ships in 1 day

$

$2.64

0

58

MTD Part# 710-0152

Hex Scr. 3/8-24 x 1.0" Lg.*
(Superseded to 710-1039)
Usually ships in 1 day

$

$3.19

0

MTD Part# 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)
Usually ships in 1 day

$

$3.27

0

60

MTD Part# 736-0105

Belleville Wash. .40 I.D. x .88 O.D.
Usually ships in 1 day

$

$3.15

0

61

MTD Part# 05002

Slide Shoe

Variations

MTD Part# 05002-0637

SLIDE SHOE - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

62

MTD Part# 710-0790

Carriage Bolt 3/8-16 x .62"
(Superseded to 710-0389)
Usually ships in 1 day

$

$3.11

0

63

MTD Part# 784-5034

Spiral Housing Ass'y. 20"
Usually ships same day

Currently unavailable

$

$

64

MTD Part# 05001

Shave Plate

Variations

MTD Part# 05001-0637

No Longer Available PLATE-SHAV - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

65

MTD Part# 748-0110

Flange Bearing .630 I.D.
Usually ships in 5 to 10 days

$

$6.50

0

66

MTD Part# 711-0520

Spiral Shaft
Usually ships same day

Not available

$

$

67

MTD Part# 05539

Spiral Ass'y.20"
Usually ships same day

Currently unavailable

$

$

68

MTD Part# 741-0403

Hex Bushing
Usually ships same day

Not available

$

$

69

MTD Part# 731-0840

Lower Chute
(Superseded to 931-0840B)
Usually ships in 5 to 10 days

$

$59.47

0

70

MTD Part# 710-0276

Carriage Bolt 5/16-18 x 1.0"
Usually ships in 1 day

$

$2.92

0

71

MTD Part# 731-0846

Upper Chute
(Superseded to 731-0846C)
Usually ships in 1 day

$

$36.68

0

73

MTD Part# 736-0242

Belleville Wash. .34 I.D. x .88
Usually ships in 1 day

$

$3.00

0

74

MTD Part# 09966

Handle Knob Ass'y.
(Superseded to 720-04072A)
Usually ships in 1 day

$

$4.87

0

75

MTD Part# 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)
Usually ships in 1 day

$

$2.27

0

76

MTD Part# 714-0507

Coter Pin 3132" Dia. x .75"
(Superseded to 914-0507)
Usually ships in 1 day

$

$3.15

0

77

MTD Part# 736-0133

Fl-Wash. .406" I.D. x 1.25"
(Superseded to 936-0133)
Usually ships in 5 to 10 days

$

$3.57

0

78

MTD Part# 736-0140

Fl-Wash. .385" I.D. x .62"
(Superseded to 936-0140)
Usually ships same day

Not available

$

$

79

MTD Part# 784-5064

Chute Crank Ass'y. 10" Lg.
Usually ships same day

Not available

$

$

80

MTD Part# 731-0851

Chute Flange Keeper
(Superseded to 731-0851A)
Usually ships in 1 day

$

$3.09

0

81

MTD Part# 736-0142

Fl-Wash. .281" I.D.
(Superseded to 936-0142)
Usually ships in 1 day

$

$3.18

0

82

MTD Part# 05963

Frame Ass'y.
Usually ships same day

Currently unavailable

$

$

83

MTD Part# 05673

Belt Guard Plate
Usually ships same day

Currently unavailable

$

$

84

MTD Part# 710-0726

Hex Wash. Self-Tap Scr. 5/16-18 x .75" Lg.
Usually ships in 1 day

$

$3.04

0

85

MTD Part# 710-0442

Hex Scr. 5/16-18 x 1.50" Lg.
(Superseded to 710-0805A)
Usually ships in 1 day

$

$3.00

0

86

MTD Part# 732-0264

Ext. Spring .38 O.DI x 2.50"
(Superseded to 932-0264)
Usually ships in 1 day

$

$3.50

0

87

MTD Part# 736-0231

Fl-Wash. .344 I.D.
(Superseded to 936-0231)
Usually ships in 5 to 10 days

$

$3.23

0

88

MTD Part# 05810

Belt Guard
Usually ships same day

Currently unavailable

$

$

89

MTD Part# 736-0264

Fl-Wash. .34 I.D. x .62 O.D. x .060
(Superseded to 936-0264)
Usually ships in 1 day

$

$4.81

0

90

MTD Part# 710-0255

Truss Mach. Scr. 1/4-20 x .75"
(Superseded to 710-0924)
Usually ships in 1 day

$

$3.19

0

91

MTD Part# 710-0323

Truss Mach. Scr. 5/16-18 x .75"
Usually ships in 1 day

$

$3.23

0

93

MTD Part# 736-0258

Fl-Wash. .385" I.D. x 1.0" O.D.
Usually ships in 1 day

$

$3.15

0

MTD Part# 725-0954

Ignition Key
(Superseded to TC-35062)

Note: (Not Shown)

Usually ships in 1 day

$

$3.66

0
