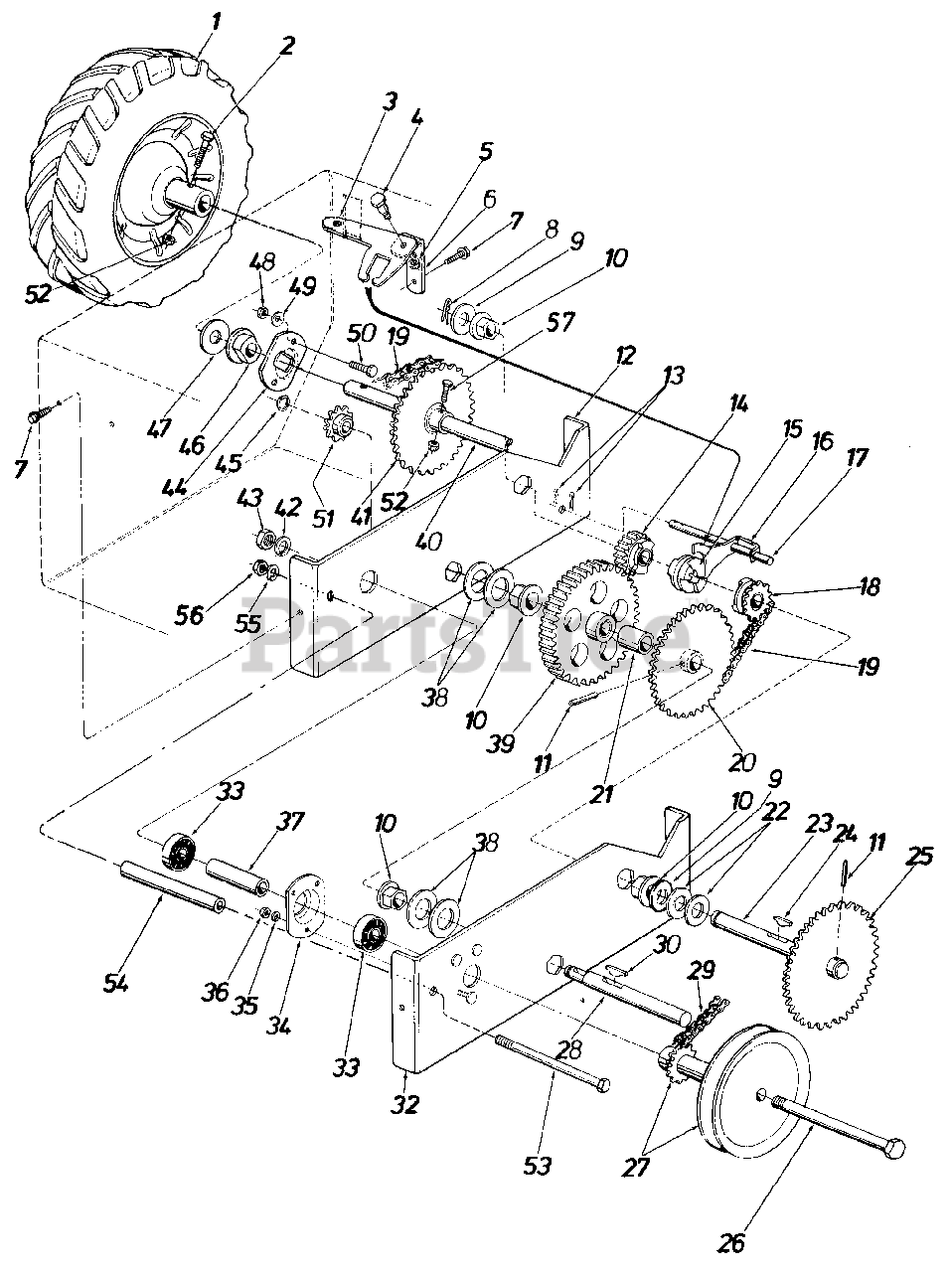

318-225-000 - MTD Snow Thrower (1988) Parts, Snow Thrower Parts Diagram

Snow Thrower

Parts, Snow Thrower Parts Diagram

  • Title
1

MTD Part# 734-0468

Wheel Ass'y.Comp. 10 x 2.75-R.H.
Usually ships same day

Currently unavailable

$

$

MTD Part# 734-0835

Wheel Ass'y.Comp. 10 x 2.75-L.H.

Note: (Not Shown)

Usually ships same day

Currently unavailable

$

$

2

MTD Part# 710-0409

Hex Bolt 5/16-24 x 1.75" Lg. H.T.
Usually ships in 5 to 10 days

$

$3.23

0

3

MTD Part# 05962

Shifting Bracket
Usually ships same day

Currently unavailable

$

$

4

MTD Part# 738-0140

Shld. Scr. .438" Dia. x .180 Lg.
(Superseded to 938-0140)
Usually ships same day

Not available

$

$

5

MTD Part# 712-0429

Hex Ins. L-Nut 5/16-18 Thd.
(Superseded to 912-0429)
Usually ships in 1 day

$

$2.86

0

6

MTD Part# 05808

Shifting Bracket Support
Usually ships same day

Currently unavailable

$

$

7

MTD Part# 710-0600

He Wash. Hd. Self-Tap Scr. 5/16-24 x .50
Usually ships in 1 day

$

$2.53

0

8

MTD Part# 714-0111

Coter Pin 3/32 Dia. x 1.00"
(Superseded to 914-0111)
Usually ships in 1 day

$

$3.36

0

9

MTD Part# 736-0187

Fl-Wash. .64 I.D. x 1.25 O.D. x .060
Usually ships in 1 day

$

$3.19

0

10

MTD Part# 748-0229

Hex Flange Brg. .63 I.D.
(Superseded to 948-0229)
Usually ships in 5 to 10 days

$

$8.23

0

11

MTD Part# 715-0114

H-Spring Pin Spiral 1/4" Dia. x 1.50 Lg.
(Superseded to 915-0114)
Usually ships in 1 day

$

$6.89

0

12

MTD Part# 05792

Drive Housing Bracket- R.H.
Usually ships same day

Currently unavailable

$

$

13

MTD Part# 714-0104

Internal Coter Pin 3/8" Dia.
(Superseded to 914-0104)
Usually ships in 1 day

$

$3.09

0

14

MTD Part# 748-0163

Spur Gear-21 Teeth
Usually ships same day

Currently unavailable

$

$

15

MTD Part# 748-0161

Clutch Collar
Usually ships same day

Currently unavailable

$

$

16

MTD Part# 05054

Shifting Yoke
Usually ships same day

Currently unavailable

$

$

Usually ships same day

Not available

$

$

18

MTD Part# 748-0164

Sprocket-10 Teeth
Usually ships same day

Currently unavailable

$

$

19

MTD Part# 713-0263

#41 Chain-1/2" Pitch x 33 Links
Usually ships same day

Not available

$

$

MTD Part# 713-0723

Master Link
(Superseded to 913-0723)
Usually ships same day

Not available

$

$

20

MTD Part# 05093

28 Teeth-Sprocket Hub Ass'y.
Usually ships same day

Currently unavailable

$

$

21

MTD Part# 750-0229

Spacer-.62 I.D. x .88 O.D. x 1.030
(Superseded to 950-0229)
Usually ships same day

Not available

$

$

22

MTD Part# 736-0237

Fl-Wash. .64 I.D. x 1.25 O.D. x .100
Usually ships in 1 day

$

$3.09

0

23

MTD Part# 738-0459

Shifting Shaft
Usually ships same day

Not available

$

$

24

MTD Part# 714-0137

Hi-Pro Key 3/16 x 3/4" Dia. x 1.062
Usually ships same day

Not available

$

$

25

MTD Part# 05137

32 Teeth Sprocket Hub Assly.
Usually ships same day

Currently unavailable

$

$

26

MTD Part# 710-0506

Hex Scr. 1/2-20 x 5.50" Lg.
Usually ships in 1 day

$

$7.66

0

27

MTD Part# 756-0325

5.25" O.D. Pulley with 9 Teeth Sprocket
Usually ships same day

Currently unavailable

$

$

Usually ships same day

Currently unavailable

$

$

29

MTD Part# 713-0265

#41 Chain 1/2 Pitch x 47 Links
Usually ships same day

Not available

$

$

MTD Part# 713-0723

Master Link
(Superseded to 913-0723)
Usually ships same day

Not available

$

$

30

MTD Part# 714-0126

Hi-Pro Key-3/16 x 3/4" Dia.
Usually ships in 1 day

$

$3.35

0

32

MTD Part# 05789

Drive Housing Bracket Ass'y. L.H .
Usually ships same day

Currently unavailable

$

$

33

MTD Part# 741-0133

Ball Bearing .500 I.D. x 1.38 O.D. x .438
Usually ships in 5 to 10 days

$

$25.19

0

34

MTD Part# 05034

Bearing Housing
(Superseded to 05034A)
Usually ships same day

Not available

$

$

35

MTD Part# 736-0329

L-Wash. 1/4 Scr.
(Superseded to 936-0329)
Usually ships in 1 day

$

$3.11

0

36

MTD Part# 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)
Usually ships in 1 day

$

$3.18

0

37

MTD Part# 750-0295

Spacer-.52 I.D. x .62 O.D. x 2.69
Usually ships same day

Not available

$

$

38

MTD Part# 736-0250

Fl-Wash. 1.06 I.D. x 1.75 O.D. x .100
Usually ships in 1 day

$

$3.11

0

39

MTD Part# 748-0162

Spur Gear-62 Teeth
Usually ships same day

Currently unavailable

$

$

40

MTD Part# 738-0460

Wheel Axle
Usually ships same day

Not available

$

$

41

MTD Part# 713-0243

28 Teeth-Sprocket Hub Ass'y.
Usually ships same day

Not available

$

$

42

MTD Part# 736-0921

L-Wash. 1/2" I.D.
(Superseded to 936-0921)
Usually ships same day

Not available

$

$

43

MTD Part# 712-0200

Hex Ins. Jam L-Nut 1/2-20 Thd.
(Superseded to 712-0200A)
Usually ships in 1 day

$

$3.08

0

44

MTD Part# 10470

Bearing Plate
Usually ships same day

Not available

$

$

45

MTD Part# 716-0145

External C-Ring
(Superseded to 716-0397)
Usually ships same day

Not available

$

$

46

MTD Part# 741-0490

Flange Bearing w/Flats .753 I.D.
(Superseded to 941-0490)
Usually ships in 1 day

$

$9.31

0

47

MTD Part# 736-0287

Fl-Wash. .81 I.D. x 1.25 O.D. x .060
(Superseded to 936-0287)
Usually ships in 5 to 10 days

$

$3.12

0

48

MTD Part# 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)
Usually ships in 5 to 10 days

$

$3.11

0

49

MTD Part# 736-0242

Bell-Wash. 5/16" I.D.
Usually ships in 1 day

$

$3.00

0

50

MTD Part# 710-0451

Carriage Bolt 5/16-18 x .75"
Usually ships in 1 day

$

$2.84

0

51

MTD Part# 713-0337

8 Teeth Sprocket #41 Chain
Usually ships same day

Not available

$

$

52

MTD Part# 712-0273

Hex Jam L-Nut 5/16-24 Thd.
(Superseded to 912-0273)
Usually ships in 5 to 10 days

$

$3.23

0

53

MTD Part# 710-0190

Hex Bolt 5/16-18 x 4.0" Lg.
Usually ships in 5 to 10 days

$

$5.61

0

54

MTD Part# 750-0324

Spacer 3.25" Lg.
Usually ships same day

Currently unavailable

$

$

55

MTD Part# 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)
Usually ships in 1 day

$

$3.41

0

56

MTD Part# 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)
Usually ships in 5 to 10 days

$

$3.11

0

57

MTD Part# 710-0624

Hex Bolt 5/16-24 x 1.5" Lg.
Usually ships in 5 to 10 days

$

$4.27

0
