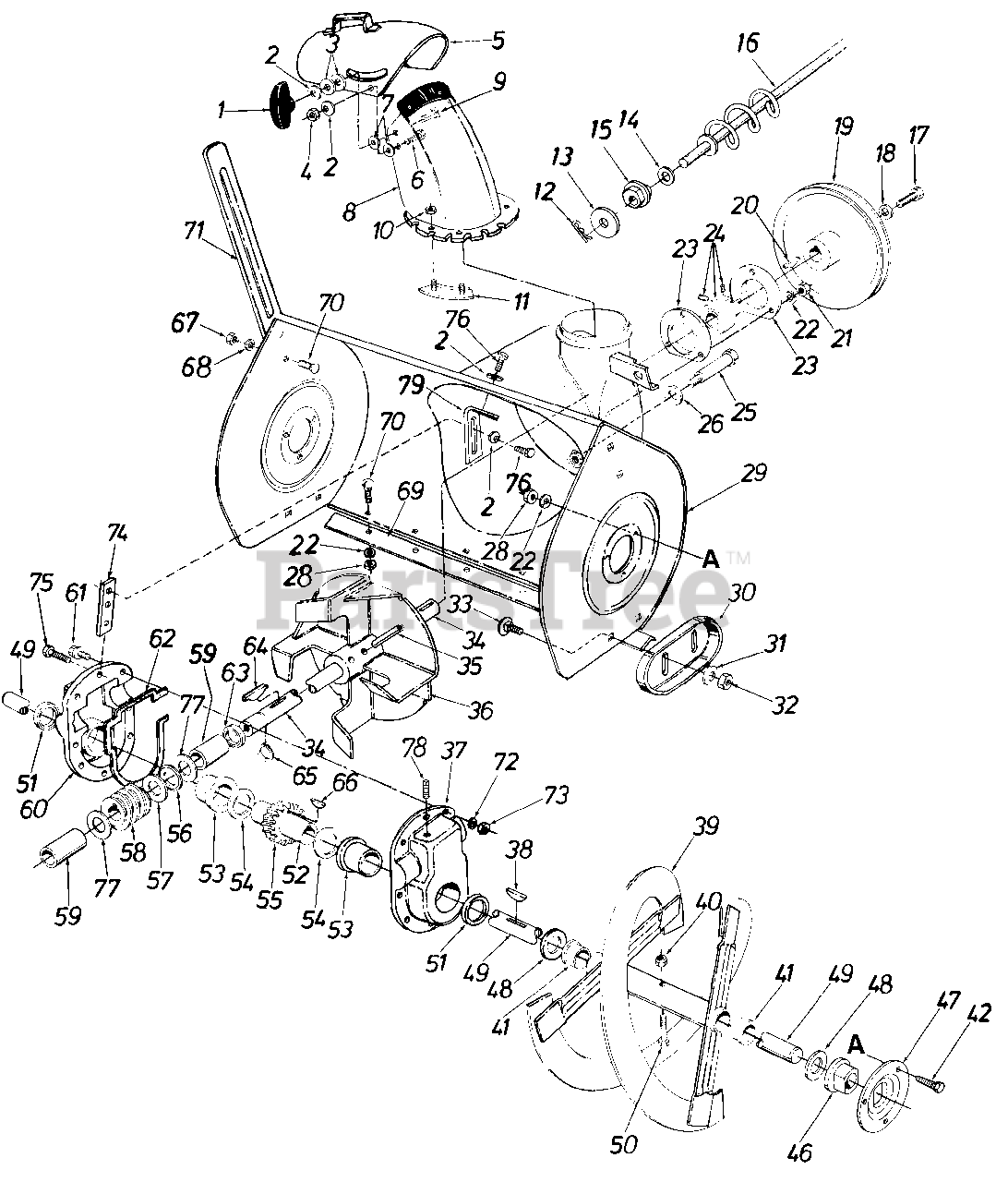

31800S - MTD Snow Thrower (1985) Snow Parts Diagram

Snow Thrower

Snow Parts Diagram

  • Title

1

MTD 09966

Hand Knob Ass'y.
(Superseded to 720-04072A)

$7.49

$

In Stock, Qty 20+

0

2

MTD 736-0242

Bell-Wash. .345 I.D. x .88 O.D. x .060

$4.99

$

In Stock, Qty 20+

0

3

MTD 736-0231

Fl. Wash. .312 I.D. x 1.125 O.D. x .125

$4.99

$

In Stock, Qty 19

0

4

MTD 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 14

0

5

MTD 05225

Top Chute Ass'y.

$

$

Currently unavailable

6

MTD 710-0260

Carr. Bolt 5/16-18 x .62" Lg.
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

7

MTD 736-0179

Fl-Wash. .53 I.D. x 1.25 O.D. x .100

$4.99

$

In Stock, Qty 20+

0

8

MTD 05996

Chute Ass'y.

$

$

Currently unavailable

9

MTD 710-0276

Carr. Bolt 5/16-18 x 1.00" Lg.

$4.49

$

In Stock, Qty 20+

0

10

MTD 712-0107

Hex Cent. L-Nut 1/2-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

11

MTD 05783

Chute Flange Keeper Ass'y.

$

$

Not available

12

MTD 714-0507

Cotter Pin

$4.99

$

In Stock, Qty 6

0

13

MTD 736-0234

Fl-Wash. .390" I.D. x 1.50" O.D.

$6.49

$

Usually ships in 3-6 days

0

14

MTD 736-0140

Fl-Wash. .385" I.D. x .62" O.D.

$7.49

$

In Stock, Qty 13

0

15

MTD 741-0403

Hex Bushing

$

$

Not available

16

MTD 05981

Chute Crank Ass'y.

$

$

Not available

17

MTD 710-0371

Hex L-Scr. 5/16-18 x .88" Lg.
(Superseded to 710-1880)

$4.99

$

In Stock, only 2 left!

0

18

MTD 736-0242

Bell-Wash. .345 I.D. x .88 O.D. x .060

$4.99

$

In Stock, Qty 20+

0

19

MTD 756-0243

V-Pulley .875 I.D. x 10.12 O.D.

$100.99

$

Usually ships in 3-6 days

0

20

MTD 714-0126

#9 Hi-Pro Key 3/16 x 3/4" Dia.

$4.99

$

In Stock, Qty 20+

0

21

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

22

MTD 736-0119

L-Wash. 5/16" Scr.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

23

MTD 05244

Bearing Hsg. Self Aligning Brg.
(Superseded to 05244B)

$25.99

$

In Stock, only 2 left!

0

24

MTD 741-0185

Self Aligning Brg. .875 I.D.
(Superseded to 941-0185)

$70.99

$

In Stock, only 1 left!

0

25

MTD 711-0640

Stud 3/8-16 x 2.75" Lg.

$8.49

$

Usually ships in 3-6 days

0

26

MTD 736-0105

Bell-Wash. .400 I.D. x .88 O.D. x .060

$4.99

$

In Stock, Qty 20+

0

28

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

29

MTD 784-5010

Blower Hsg. Ass'y.

Note: (800)

$

$

Currently unavailable

MTD 784-5011

Blower Hsg. Ass'y.

Note: (960)

$

$

Not available

30

MTD 784-5038

Slide Shoe
(Superseded to 784-5038B-0637)

$29.99

$

In Stock, only 2 left!

0

31

MTD 736-0105

Bell-Wash. .400 I.D. x .88 O.D. x .060

$4.99

$

In Stock, Qty 20+

0

32

MTD 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 14

0

33

MTD 710-0790

Carr. Bolt 3/8-16 x .62" Lg.
(Superseded to 710-0389)

$4.99

$

Usually ships in 3-6 days

0

34

MTD 738-0276

Blower Axle

$108.99

$

Usually ships in 3-6 days

0

35

MTD 715-0118

Spring Pin Spiral 5/16" Dia. x 1.75" Lg.

$13.99

$

In Stock, Qty 10

0

36

MTD 05812

Blower Fan Ass'y.

Variations

MTD 05812-0637

No Longer Available FAN ASM - POWDER BLACK (0637)

$

$

Not available

$

$

37

MTD 717-0297

Comllete Gear Hsg. Half L.H.
(Superseded to 753-0889)

Note: (Incl. Bearing)

$

$

Not available

38

MTD 714-0135

#91 Woodruff Key 1/4" x 3/4" Dia.

$4.99

$

In Stock, Qty 11

0

39

MTD 05463

6" Spiral Ass'y. L.H.

Note: (800)

Variations

MTD 05463-0637

No Longer Available SPIRAL ASM - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 05464

2" Spiral Ass'y. R.H.

Note: (800)

Variations

MTD 05464-0637

No Longer Available SPIRAL ASM - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 05461

3" Spiral Ass'y. L.H.

Note: (960)

$

$

Not available

MTD 05462

3" Spiral Ass'y. R.H.

Note: (960)

$

$

Not available

40

MTD 712-0429

Hex Ins. L-Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

41

MTD 05136

Plastic Bushing

$

$

Not available

42

MTD 710-0198

Hex Sems Scr. 5/16-18 x .75" Lg.*
(Superseded to 910-0198)

$

$

Not available

46

MTD 741-0244

Flange Brg. w/Flats 1.0" I.D.
(Superseded to 941-0170)

$20.99

$

In Stock, only 4 left!

0

47

MTD 05845

Bearing Hsg. Spiral Hsg.
(Superseded to 05845C-0637)

$25.99

$

In Stock, only 1 left!

0

48

MTD 736-0250

Fl-Wash. 1.06 I.D. x 1.75" O.D. x .100

$4.99

$

In Stock, Qty 20+

0

49

MTD 738-0490

Spiral Axle 26"

Note: (800)

$

$

Not available

MTD 738-0491

Spiral Axle 33"

Note: (960)

$

$

Not available

50

MTD 710-0891

Hex Bolt 5/16-18 x 1.75" Lg.

$7.99

$

In Stock, only 4 left!

0

51

MTD 721-0146

Oil Seal 1.50" I.D.
(Superseded to 921-0146)

$13.99

$

In Stock, only 3 left!

0

52

MTD 738-0275

Worm Gear Shaft

$118.99

$

Usually ships in 3-6 days

0

53

MTD 741-0182

Flange Brg. 1.503 I.D.

$

$

Not available

54

MTD 736-0266

Fl-Wash. 1.50 I.D. x 2.00 O.D. x .030
(Superseded to 936-0266)

$

$

Not available

55

MTD 717-0300

Double Threaded Worm Gea
(Superseded to 917-1425)

$188.99

$

Usually ships in 3-6 days

0

56

MTD 741-0184

Thrust Brg. .88 I.D. x 1.44 O.D. x .078

$17.99

$

In Stock, only 2 left!

0

57

MTD 736-0291

Fl-Wash. .88 I.D. x 1.40 O.D. x .1 50

$12.99

$

In Stock, only 3 left!

0

58

MTD 717-0299

Double Threaded Worm L.H.
(Superseded to 917-0299)

$131.99

$

In Stock, only 1 left!

0

59

MTD 741-0217

Sleeve Brg. .875 I.D.
(Superseded to 941-0217)

$18.99

$

In Stock, only 2 left!

0

60

MTD 717-0298

Complete Gear Hsg. Half R.H.
(Superseded to 753-0889)

Note: (Incl. Ref. Nos. 51 & 53)

$

$

Not available

61

MTD 710-0376

Hex Scr. 5/16-18 x 1.00" Lg.

$4.49

$

In Stock, Qty 20+

0

62

MTD 721-0144

Gasket
(Superseded to 921-0144)

$12.99

$

In Stock, Qty 7

0

63

MTD 721-0145

Oil Seal .875" I.D.
(Superseded to 921-0145)

$10.99

$

In Stock, Qty 5

0

64

MTD 714-0126

#9 Hi-Pro Key 3/16 x 3/4" Dia.

$4.99

$

In Stock, Qty 20+

0

65

MTD 716-0111

Snap Ring for.875" Dia. Shaft

$6.99

$

In Stock, only 2 left!

0

66

MTD 714-0135

#91 Woodruff Key 1/4 x 3/4" Dia.

$4.99

$

In Stock, Qty 11

0

67

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

68

MTD 736-0119

L-Wash. 5/16" Scr.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

69

MTD 05000

Shave Plate 26"
(Superseded to 05000-0637)

Note: (800)

Variations

MTD 05000-0637

Shave Plate - POWDER BLACK (0637)

$50.99

$

In Stock, only 2 left!

0

$50.99

$

In Stock, only 2 left!

0

MTD 05378

Shave Plate 33"
(Superseded to 05378-0637)

Note: (960)

Variations

MTD 05378-0637

Shave Plate, 33" Lg - POWDER BLACK (0637)

$83.99

$

Usually ships in 3-6 days

0

$83.99

$

Usually ships in 3-6 days

0

70

MTD 710-0260

Carr. Bolt 5/16-18 x .62" Lg.
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

71

MTD 05139

Drift Cutter
(Superseded to 790-00181-0637)

$45.99

$

Usually ships in 3-6 days

0

72

MTD 736-0271

Wave Wash. 5/16" Scr.
(Superseded to 936-0271)

$4.99

$

In Stock, Qty 9

0

73

MTD 712-0429

Hex Ins. L-Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

74

MTD 784-5075

Gear Hsg. Support Brk't.

$

$

Not available

75

MTD 710-0528

Hex Scr. 5/16-18 x 1.25" Lg.

$4.99

$

In Stock, Qty 20+

0

76

MTD 710-0726

Hex Wash. Hd. Self-Tap Scr. 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

77

MTD 736-0291

Fl-Wash. .88 I.D. x 1.40 O.D. x .1 50

$12.99

$

In Stock, only 3 left!

0

78

MTD 737-0175

Filler Plug

$7.49

$

In Stock, only 4 left!

0

79

MTD 784-5076

Gear Hsg. Support Brk't.
(Superseded to 784-5076-0637)

Variations

MTD 784-5076-0637

PLATE-SUPPORT-GEAR - POWDER BLACK (0637)

$49.99

$

Usually ships in 3-6 days

0

$49.99

$

Usually ships in 3-6 days

0
