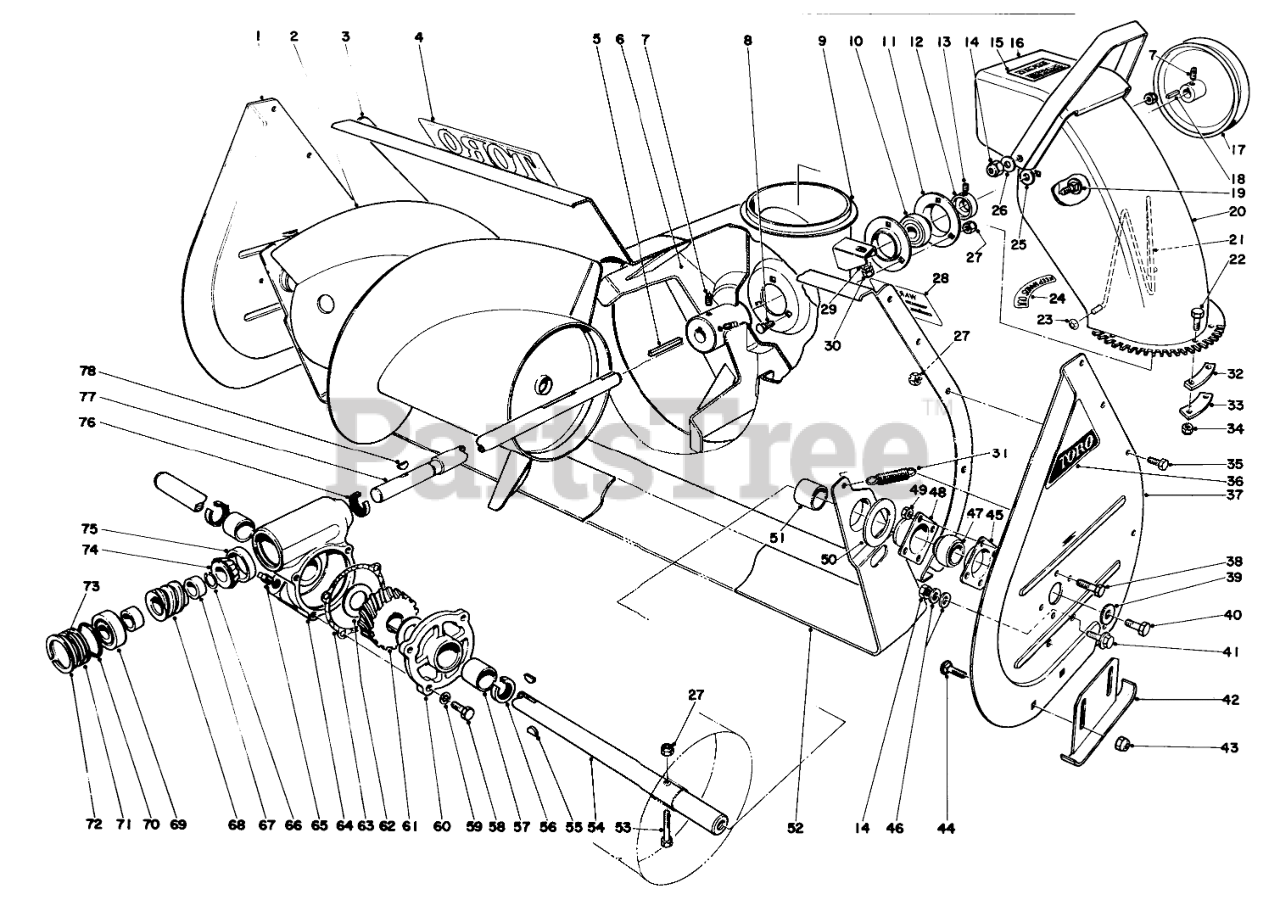

31813 (832) - Toro 32" Snow Thrower (SN: 004000001 - 004999999) (1974) AUGER ASSEMBLY Parts Diagram

32" Snow Thrower

AUGER ASSEMBLY Parts Diagram

  • Title

1

Toro 8-8450

Side Plate
(Superseded to 39-6120)

$

$

Not available

2

Toro 11-6920

Auger R.H.

$

$

Not available

Toro 11-6910

Auger L.H.

Note: Not illustrated

$

$

Not available

3

Toro 5-8709

Auger Housing (Incl. Ref. #28)

$

$

Not available

4

Toro 18-2150

Decal

$

$

Currently unavailable

5

Toro 6-8590

KEY

$12.99

$

Usually ships in 3-6 days

0

6

Toro 19-8890

IMPELLER ASM
(Superseded to 19-8890-03)

$670.99

$

Usually ships in 3-6 days

0

7

Toro 3242-4

SCREW-SET, SQH

$2.99

$

In Stock, only 2 left!

0

8

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

9

Toro 5-7250

SUPPORT B

$

$

Not available

10

Toro 251-224

BALL BRG W/COLLAR

$58.99

$

Usually ships in 3-6 days

0

11

Toro 251-229

BRG FLANGE

$40.99

$

In Stock, only 1 left!

0

12

Toro 251-231

EXT LOCKING COLLAR

$33.99

$

In Stock, only 1 left!

0

13

Toro 3245-32

SCREW-HSH

$5.49

$

In Stock, only 2 left!

0

14

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 20+

0

15

Toro 10-2980

Decal
(Superseded to 22-8730)

$

$

Not available

16

Toro 5-8589

Def vector (Incl. Ref. #15)
(Superseded to 11-7120-01)

$117.99

$

Usually ships in 3-6 days

0

17

Toro 5-7400

1/2 X 9.5 DIA PULLEY

$

$

Not available

18

Toro 3-6857

SQUARE KEY

$15.99

$

Usually ships in 3-6 days

0

19

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, Qty 5

0

20

Toro 5-8599

Upper Chute (Incl. Ref. #24)

$

$

Not available

21

Toro 12-2040

WIRE-CHUTE

$

$

Not available

22

Toro 3290-359

SCREW-HWH

$7.49

$

Usually ships in 3-6 days

0

23

Toro 3290-326

NUT-PUSH

$4.99

$

Usually ships in 3-6 days

0

24

Toro 5-9830

Decal

$

$

Currently unavailable

25

Toro 20-4320

WASHER-RUBBER

$0.99

$

In Stock, Qty 10

0

26

Toro 3290-340

WASHER-BELLEVILLE

$7.99

$

In Stock, Qty 10

0

27

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

28

Toro 10-2970

Decal
(Superseded to 94-2568)

$8.49

$

In Stock, only 3 left!

0

29

Toro 3290-238

WASHER-LOCK

$3.49

$

Usually ships in 3-6 days

0

30

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

31

Toro 5-7290

SPRING-TENSION

$26.99

$

In Stock, only 2 left!

0

32

Toro 6-5570

UPPER CHUTE TAB

$

$

Not available

33

Toro 6-5560

CHUTE TAB SPACER

$

$

Not available

34

Toro 32146-18

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

35

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

36

Toro 17-6500

AUGER SIDE PLT DECAL

$

$

Not available

37

Toro 8-8440

Side Plate L. H.
(Superseded to 39-6130)

$

$

Not available

38

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 15

0

39

Toro 3-0750

WASHER

$9.49

$

In Stock, only 2 left!

0

40

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

41

Toro 3234-1

SCREW-HHF

$1.99

$

In Stock, Qty 15

0

42

Toro 8-8460

Skid
(Superseded to 20-2840-01)

$41.99

$

In Stock, Qty 15

0

43

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

44

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, Qty 5

0

45

Toro 20-1000

BEARING-FLANGE, REAR

$11.99

$

In Stock, only 3 left!

0

46

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

47

Toro 20-0980

BEARING

$22.99

$

In Stock, Qty 11

0

48

Toro 20-0990

BEARING-FLANGE, FRONT

$11.99

$

In Stock, only 4 left!

0

49

Toro 321524

Nut

$

$

Currently unavailable

50

Toro 20-0300

SCRAPER BLADE SPACER

$8.99

$

Usually ships in 3-6 days

0

51

Toro 19-9150

SPACER

$

$

Not available

52

Toro 19-9160

SCRAPER BLADE 32" R

$278.99

$

Usually ships in 3-6 days

0

53

Toro 17-7030

Auger Bolt
(Superseded to 322-12)

$1.99

$

In Stock, Qty 14

0

54

Toro 11-7010

32 AUGER SHAFT

$

$

Not available

55

Toro 3257-33

KEY-WOODRUFF

$2.49

$

In Stock, only 3 left!

0

56

Toro 7-0045

SEAL-OIL

$15.99

$

In Stock, Qty 20+

0

57

Toro 256-197

Bushing
(Superseded to 256-237)

$15.99

$

In Stock, only 2 left!

0

58

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 15

0

59

Toro 3254-8

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

60

Toro 4-9309

Gear Box Cover (Incl. Ref. #57)

$

$

Not available

61

Toro 5-7180

GEAR-WORM, 27T

$158.99

$

In Stock, only 2 left!

0

62

Toro 252-71

WASHER-THRUST

$19.99

$

In Stock, only 2 left!

0

63

Toro 5-7110

Gasket

$

$

Not available

64

Toro 4-9319

Gear Box (Incl. Ref. #57 & 75)

$

$

Currently unavailable

65

Toro 281-1

PLUG-PIPE, SQH

$5.49

$

In Stock, only 1 left!

0

66

Toro 7-0013

RETAINER RING

$8.49

$

Usually ships in 3-6 days

0

67

Toro 8-9000

Spacer

$

$

Not available

68

Toro 5-7170

GEAR

$113.99

$

In Stock, only 3 left!

0

69

Toro 251-207

.750 BALL BEARING

$

$

Not available

70

Toro 237-71

O-RING

$8.99

$

Usually ships in 3-6 days

0

71

Toro 7-0017

Plug

$

$

Not available

72

Toro 7-0018

INTRNL RETAINING RING

$6.49

$

Usually ships in 3-6 days

0

73

Toro 11-2120

SHIM

$

$

Not available

74

Toro 254-88

3/4 ROLLER BRG CONE

$107.99

$

Usually ships in 3-6 days

0

75

Toro 254-89

1.750 ROLLER BRG CUP

$

$

Not available

76

Toro 253-59

SEAL-OIL

$24.99

$

Usually ships in 3-6 days

0

77

Toro 5-7140

Shaft Worm

$

$

Not available

78

Toro 3257-23

KEY-WOODRUFF

$7.49

$

In Stock, only 2 left!

0

Toro 11-6970

Gear Case Assembly Complete
(Superseded to 25-5280)

Note: Not illustrated

$

$

Not available

Toro 20-2850

Skid
(Superseded to 20-2840-01)

Note: Not Illustrated-Optional

$41.99

$

In Stock, Qty 15

0

Toro 20-0650

Drift Breaker Kit

Note: Not Illustrated-Optional

$

$

Not available
