31813 (832) - Toro 32" Snow Thrower (SN: 004000001 - 004999999) (1974) ENGINE ASSEMBLY Parts Diagram

32" Snow Thrower

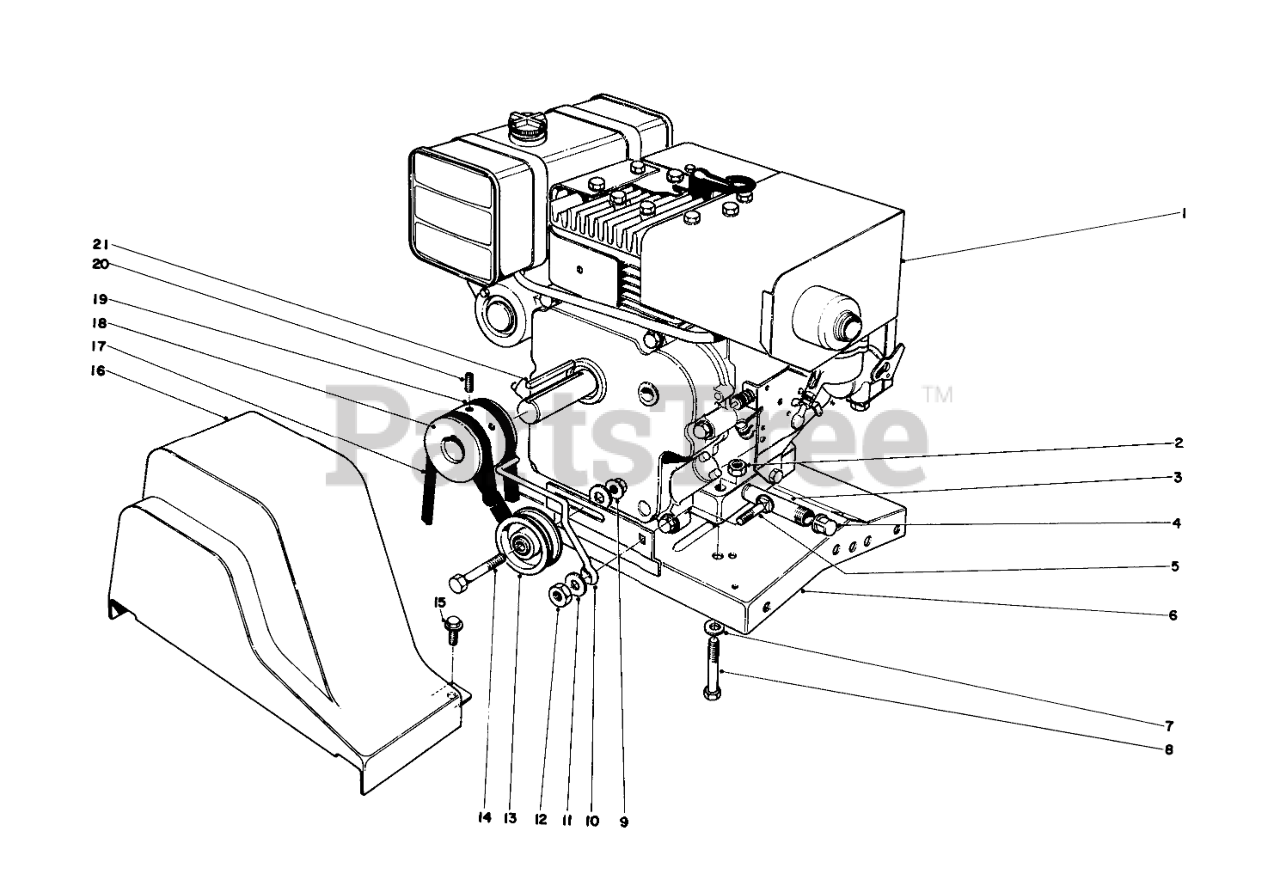

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 221-435

Engine

$

$

Currently unavailable

Toro 221-444

Engine

Note: Not Illustrated-Optional

$

$

Currently unavailable

2

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

3

Toro 289-20

NIPPLE-PIPE

$

$

Not available

4

Toro 288-4

CAP-PIPE

$23.99

$

In Stock, only 1 left!

0

5

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, Qty 5

0

6

Toro 17-6950

Engine Base

$

$

Currently unavailable

7

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

8

Toro 322-9

SCREW-HH

$3.49

$

In Stock, Qty 13

0

9

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

10

Toro 8-8830

BELT GUIDE

$

$

Not available

11

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

12

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 20+

0

13

Toro 3-4244

PULLEY-IDLER

$27.99

$

In Stock, only 3 left!

0

14

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 12

0

16

Toro 17-6550

BELT GUARD

$

$

Not available

17

Toro 17-0850

V-Belt
(Superseded to 26-9670)

$25.99

$

In Stock, only 1 left!

0

18

Toro 11-9110

Pulley
(Superseded to 21-4100)

$

$

Not available

19

Toro 17-6540

V-BELT

$30.99

$

In Stock, Qty 5

0

20

Toro 3246-14

Screw-Set
(Superseded to 3246-3)

$12.99

$

Usually ships in 3-6 days

0

21

Toro 5-0930

KEY

$14.99

$

Usually ships in 3-6 days

0

Toro 20-7200

Starter Motor Kit U.S.

Note: Not Illustrated-Optional

$

$

Currently unavailable

Toro 10-4280

Starter Kit Canada Optional

Note: Not Illustrated-Optional

$

$

Currently unavailable
