31823 (832) - Toro 32" Snow Thrower (SN: 006000001 - 006999999) (1976) Wheel Assembly Parts Diagram

32" Snow Thrower

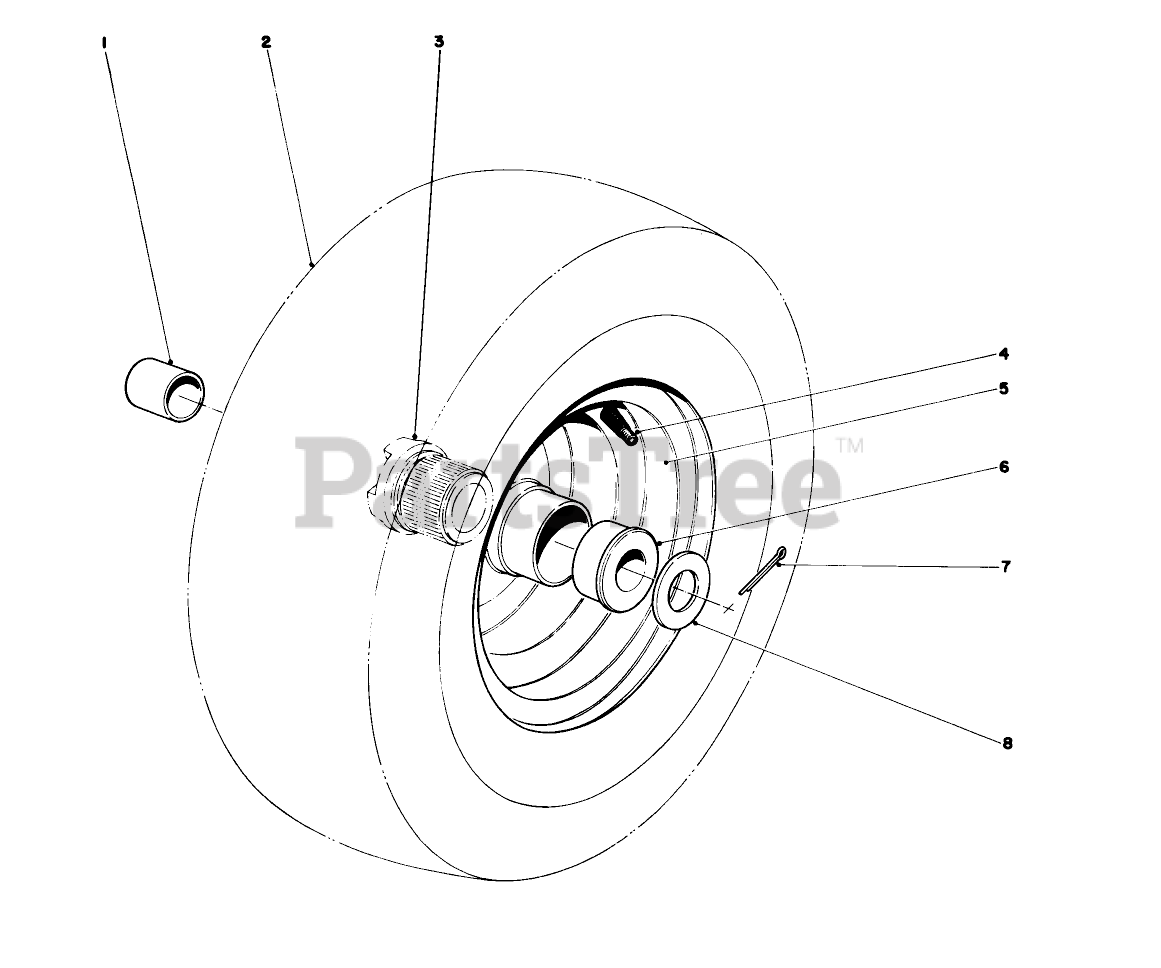

Wheel Assembly Parts Diagram

  • Title

1

Toro 256-205

DISCONTINUED

$

$

Not available

2

Toro 231-78

DISCONTINUED

$

$

Not available

Toro 231-61

DISCONTINUED

Note: Not illustrated

$

$

Not available

3

Toro 12-1130

DISCONTINUED

$

$

Not available

4

Toro 232-27

See Supercession: 5108
(Superseded to 5108)

$7.99

$

In Stock, only 4 left!

0

5

Toro 17-6610

DISCONTINUED

$

$

Not available

Toro 12-1670

See Supercession: 26-9870
(Superseded to 26-9870)

Note: Not illustrated

$

$

Not available

6

Toro 256-212

DISCONTINUED

$

$

Not available

7

Toro 3272-17

PIN-COTTER

$2.99

$

In Stock, only 3 left!

0

8

Toro 3-8664

WASHER-THRUST

$7.49

$

In Stock, only 1 left!

0

Toro 17-7620

DISCONTINUED

Note: Optional equipment

$

$

Not available

Toro 10-3200

Tire Chains (8 HP)

Note: Optional equipment

$

$

Currently unavailable
