31832 (832) - Toro 32" Snow Thrower (SN: 001000001 - 001999999) (1971) Carburetor For Engine No. 190402, Type 0180-01 Parts Diagram

32" Snow Thrower

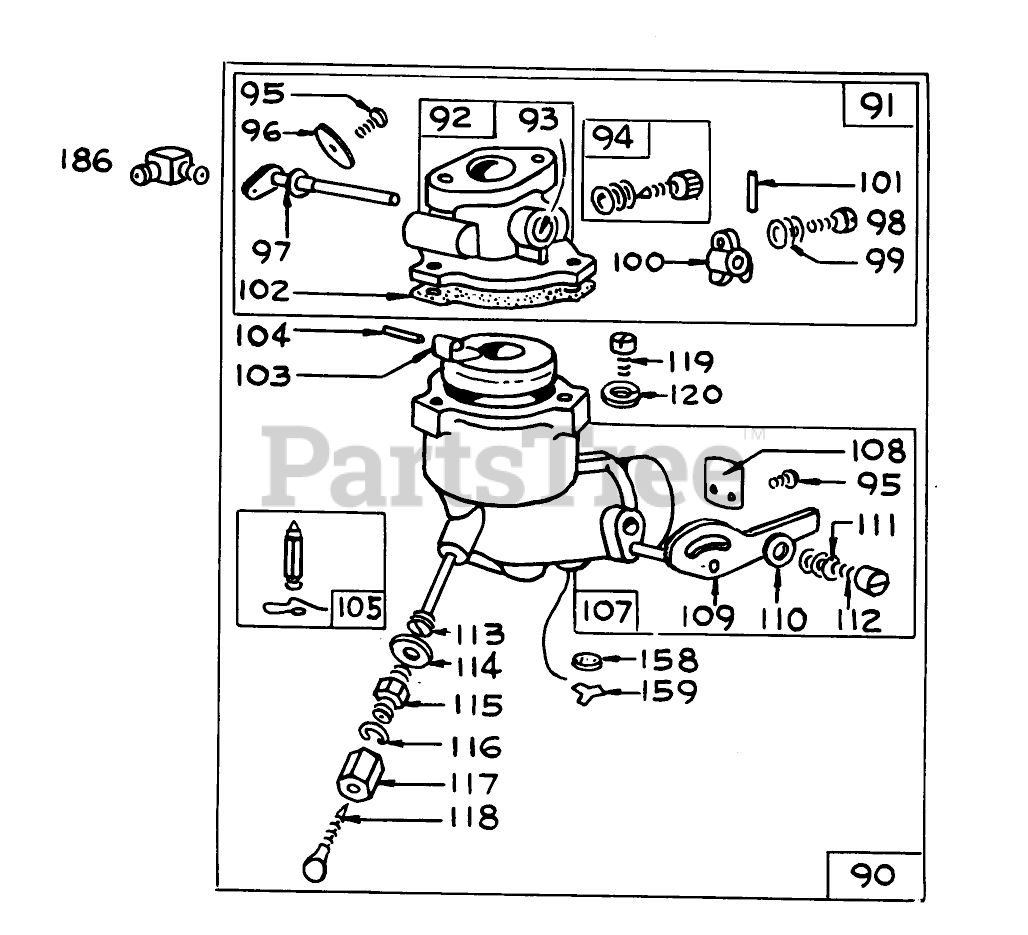

Carburetor For Engine No. 190402, Type 0180-01 Parts Diagram

  • Title

90

Toro 390323

Carburetor Assembly

$

$

Currently unavailable

91

Toro 390404

Body Assy., Upper Carburetor

$

$

Currently unavailable

92

Toro 390503

Body-Upper Carb.

$

$

Currently unavailable

93

Toro 23108

Bushing-Throttle Shaft

$

$

Currently unavailable

94

Toro 292681

Valve Assembly

Note: Included In Carburetor Kit.

$

$

Currently unavailable

95

Toro 93038

Screw, Throttle Valve Mtg. Sem

$

$

Currently unavailable

96

Toro 62940

Value-Throttle

$

$

Currently unavailable

97

Toro 298826

Shaft-Throttle

$

$

Currently unavailable

98

Toro 91920

Screw

$

$

Currently unavailable

99

Toro 26157

Spring

$

$

Currently unavailable

100

Toro 61967

Stop-Throttle

$

$

Currently unavailable

101

Toro 93043

Pin

$

$

Currently unavailable

102

Toro 27918

Gasket-Body

Note: Included In Carburetor Kit.

$

$

Currently unavailable

103

Toro 99333

Float-Carburetor

$

$

Currently unavailable

104

Toro 230896

Pin-Float

Note: Included In Carburetor Kit.

$

$

Currently unavailable

105

Toro 299096

Valve-FuelInlet

$

$

Currently unavailable

107

Toro 390403

Body Assy.-Lower Carburetor

$

$

Currently unavailable

108

Toro 62872

Value-Choke

$

$

Currently unavailable

109

Toro 298875

Shaft Lever, Choke

$

$

Currently unavailable

110

Toro 62899

Washer-Choke Lever

$

$

Currently unavailable

111

Toro 26155

Spring-Lever

$

$

Currently unavailable

112

Toro 23123

Screw-Choke Lever

$

$

Currently unavailable

113

Toro 390395

Nozzle-Carburetor

Note: Included In Carburetor Kit.

$

$

Currently unavailable

114

Toro 68667

Gasket-Nozzle

Note: Included In Carburetor Kit.

$

$

Currently unavailable

115

Toro 23117

Retainer-Needle Valve

Note: Included In Carburetor Kit.

$

$

Currently unavailable

116

Toro 68677

Latch Bar

Note: Included In Carburetor Kit.

$

$

Currently unavailable

117

Toro 23118

Nut-Needle Valve Pkng.

Note: Included In Carburetor Kit.

$

$

Currently unavailable

118

Toro 230009

Valve-Needle

Note: Included In Carburetor Kit.

$

$

Currently unavailable

119

Toro 90746

Screw-Machine. Fil.Hd.

$

$

Currently unavailable

120

Toro 92290

Washer-Lock

$

$

Currently unavailable

121

Toro 295938

Carburetor Overhau Kit

$

$

Currently unavailable

158

Toro 27590

Filter-Carburetor Drain

$

$

Currently unavailable

159

Toro 220521

Retainer, Carb. Drain Filter

$

$

Not available

186

Toro 67218

Connector-Fuel

$

$

Currently unavailable
