31832 (832) - Toro 32" Snow Thrower (SN: 001000001 - 001999999) (1971) HANDLE ASSEMBLY Parts Diagram

32" Snow Thrower

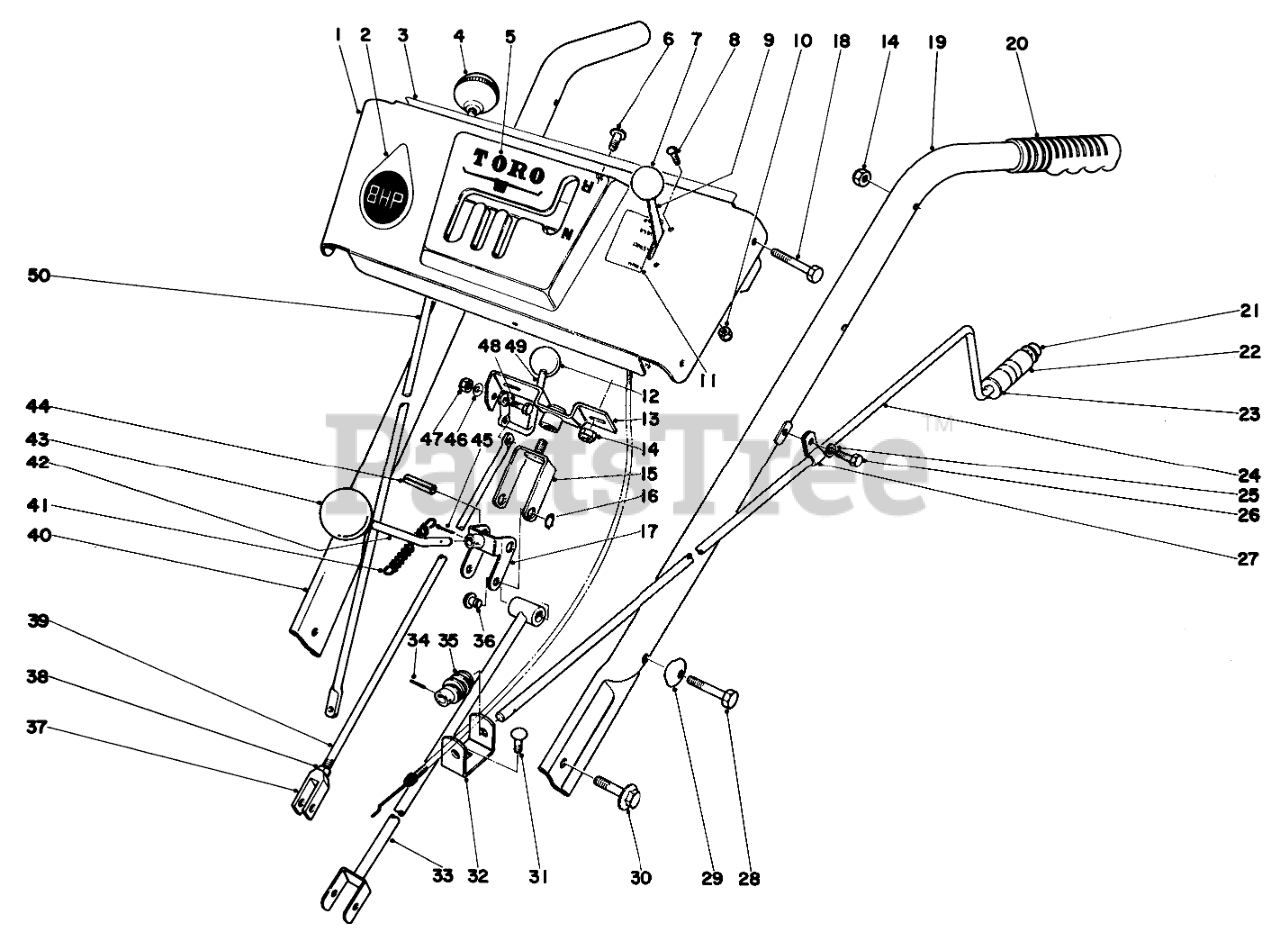

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 5-1559

Escutcheon Plate (Incl. Ref. Nos. 3, 5 & 11)

$

$

Currently unavailable

2

Toro 10-3030

Decal, Model 31727

$

$

Currently unavailable

Toro 10-3020

Decal, Model 31832

Note: Not illustrated

$

$

Currently unavailable

3

Toro 10-3060

Decal, Escutcheon Back

$

$

Currently unavailable

4

Toro 233-10

KNOB-LEVER

$61.99

$

Usually ships in 3-6 days

0

5

Toro 10-3220

Decal, Escutcheon

$

$

Currently unavailable

6

Toro 3258-157

Screw, Machine

$

$

Not available

7

Toro 233-25

KNOB-CONTROL

$5.49

$

In Stock, only 1 left!

0

8

Toro 3251-2

SCREW-PPH

$0.99

$

In Stock, Qty 5

0

9

Toro 8-7790

Throttle Contrl

$

$

Not available

10

Toro 32146-18

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

11

Toro 10-3210

Decal, Throttle

$

$

Currently unavailable

12

Toro 233-26

Knob
(Superseded to 233-22)

$22.99

$

Usually ships in 3-6 days

0

13

Toro 8-7930

SWIVEL BLOCK WA

$

$

Not available

14

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

15

Toro 8-7910

Pivot Bracket
(Superseded to 29-6490)

$

$

Not available

16

Toro 32120-3

Ring-Snap
(Superseded to 32151-84)

$2.49

$

Usually ships in 3-6 days

0

17

Toro 8-7960

Control Bracket

$

$

Currently unavailable

18

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Toro 8-7890

Left Handle

$

$

Not available

20

Toro 6-0450

Grip Handle
(Superseded to 74-1380)

$

$

Not available

21

Toro 3290-302

Speed Nut

$

$

Currently unavailable

22

Toro 6-0030

Chute Control Grip
(Superseded to 20-2060)

$

$

Not available

23

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 8-8570

ROD CHUTE CONTROL

$

$

Not available

25

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

26

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

27

Toro 2412-10

R-CLAMP

$3.49

$

Usually ships in 3-6 days

0

28

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

29

Toro 5-5096

Curved Washer

$

$

Currently unavailable

30

Toro 3234-1

SCREW-HHF

$1.99

$

In Stock, Qty 15

0

31

Toro 3230-15

SCREW-CARR

$1.99

$

In Stock, only 4 left!

0

32

Toro 8-8590

Bracket Worm

$

$

Currently unavailable

33

Toro 8-7990

Trunnion

$

$

Currently unavailable

34

Toro 32121-50

PIN-SPRING

$3.49

$

In Stock, only 3 left!

0

35

Toro 8-8600

GEAR-WORM, CHUTE

$134.99

$

Usually ships in 3-6 days

0

36

Toro 8-8040

Pin Shift Lever

$

$

Currently unavailable

37

Toro 282-1

Yoke
(Superseded to 282-1-01)

$

$

Not available

38

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 20+

0

39

Toro 8-8030

Drag Link
(Superseded to 20-2310)

$

$

Not available

40

Toro 8-7880

Handle, R.H.

$

$

Currently unavailable

41

Toro 8-9900

CONT ROD SPRING 0

$

$

Not available

42

Toro 8-8010

Shift Rod

$

$

Currently unavailable

43

Toro 233-21

KNOB

$13.99

$

In Stock, only 1 left!

0

44

Toro 32121-42

PIN-ROLL

$2.99

$

In Stock, only 1 left!

0

45

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

46

Toro 3290-234

Lynch Pin

$

$

Currently unavailable

47

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

48

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

49

Toro 8-8020

Handle, Auger Shaft

$

$

Currently unavailable

50

Toro 10-3900

Rod Wheel Clutch

$

$

Currently unavailable
