31832 (832) - Toro 32" Snow Thrower (SN: 001000001 - 001999999) (1971) TRACTION DRIVE Parts Diagram

32" Snow Thrower

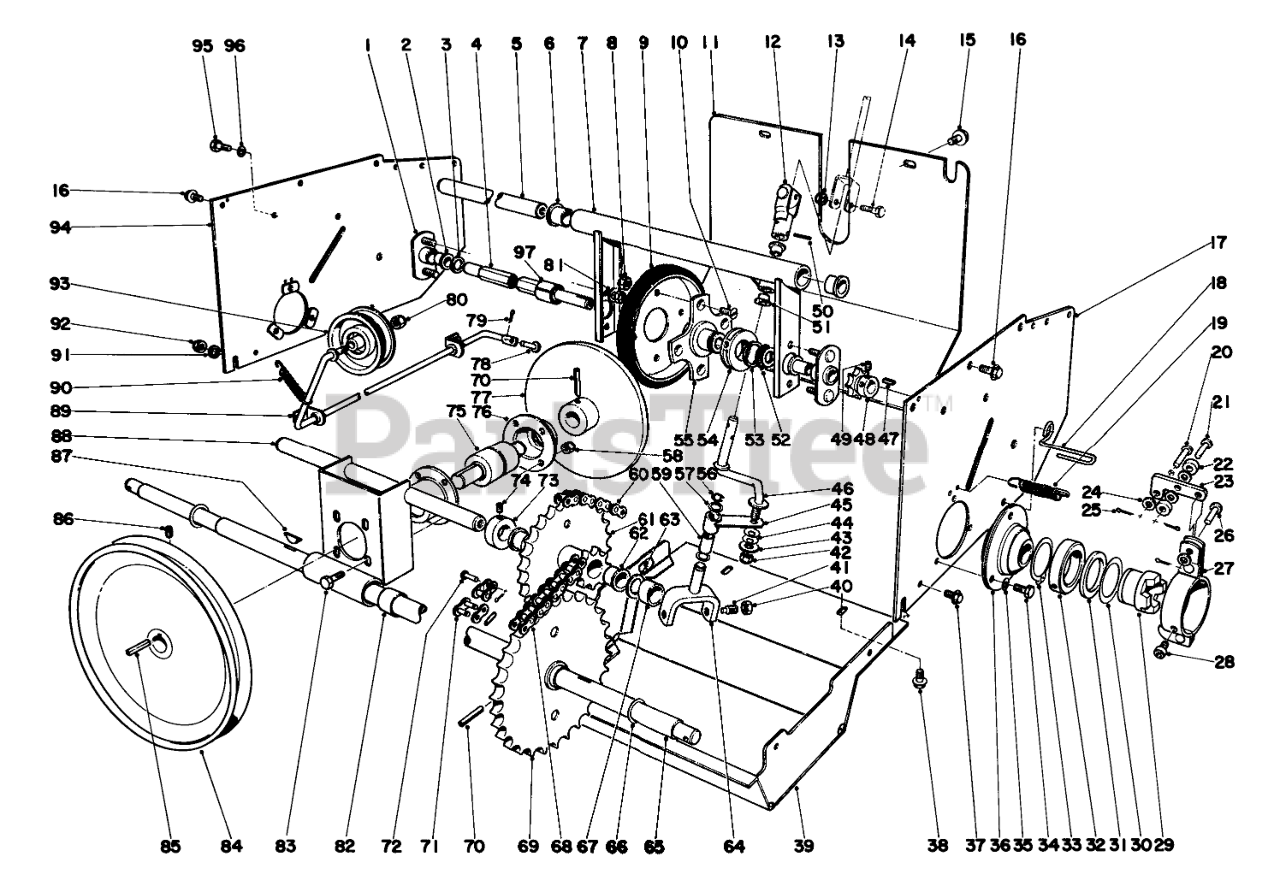

TRACTION DRIVE Parts Diagram

  • Title

1

Toro 5-7030

Adjusting Plate (Incl. Ref. No. 2)

$

$

Currently unavailable

2

Toro 256-201

Bushing

$

$

Currently unavailable

3

Toro 5-7570

WASHER-FLAT

$8.49

$

In Stock, only 3 left!

0

4

Toro 8-9370

Shaft, Friction Wheel
(Superseded to 11-8940)

$

$

Not available

5

Toro 8-8110

Dead Shaft

$

$

Currently unavailable

6

Toro 256-104

3/4IDX1LG FLANGE BSHG

$

$

Currently unavailable

7

Toro 8-9350

Pivot Tube (Incl. Ref. Nos.6 & 52)

$

$

Currently unavailable

8

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

9

Toro 3-5461

Disc
(Superseded to 40-8170)

$74.99

$

In Stock, Qty 5

0

10

Toro 32108-20

SCREW

$0.99

$

Usually ships in 3-6 days

0

11

Toro 10-0240

Rear Shield

$

$

Currently unavailable

12

Toro 5-9230

U Joint

$

$

Not available

13

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

14

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

15

Toro 32140-70

1/4-20 X 1/2 SEMS MS

$

$

Not available

16

Toro 3234-1

SCREW-HHF

$1.99

$

In Stock, Qty 15

0

17

Toro 8-9050

Side Plate, Drive

$

$

Currently unavailable

18

Toro 11-0610

Clutch Retainer
(Superseded to 41-8570)

$

$

Not available

19

Toro 10-3890

EXTENSION SPRING

$22.99

$

Usually ships in 3-6 days

0

20

Toro 283-29

PIN-CLEVIS

$2.49

$

Usually ships in 3-6 days

0

21

Toro 283-17

PIN-CLEVIS

$6.49

$

Usually ships in 3-6 days

0

22

Toro 10-3910

CLUTCH ROLLER

$

$

Not available

23

Toro 10-3920

Arm Clutch

$

$

Not available

24

Toro 3256-21

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

25

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 8

0

26

Toro 283-16

PIN-CLEVIS

$7.49

$

Usually ships in 3-6 days

0

27

Toro 10-3930

Clutch Mount Bracket

$

$

Not available

28

Toro 3274-42

SCREW-HSH

$0.99

$

Usually ships in 3-6 days

0

29

Toro 8-7630

Clutch Wheel
(Superseded to 26-5990)

$83.99

$

Usually ships in 3-6 days

0

30

Toro 10-3980

THRUST WASHER

$

$

Not available

31

Toro 256-214

THRUST BEARING

$

$

Not available

32

Toro 10-3860

CLUTCH MOUNT COLLAR

$

$

Not available

33

Toro 32151-35

RING-RETAINING, EXTERNAL

$10.99

$

Usually ships in 3-6 days

0

34

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

35

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

36

Toro 8-9310

Bearing Flange

$

$

Not available

37

Toro 3234-4

SCREW-HHF

$0.99

$

In Stock, Qty 13

0

38

Toro 32104-70

Machine Screw

$

$

Currently unavailable

39

Toro 5-9110

Lower Shield

$

$

Currently unavailable

40

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

41

Toro 3287-16

Set Screw

$

$

Not available

42

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

43

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

44

Toro 3290-212

WASHER-SPRING

$3.99

$

Usually ships in 3-6 days

0

45

Toro 5-6890

Shift Rod (Incl. Ref. No. 60)

$

$

Currently unavailable

46

Toro 5-9000

Connecting Rod

$

$

Currently unavailable

47

Toro 3-6168

KEY

$12.99

$

In Stock, only 2 left!

0

48

Toro 5-9820

SPROCKET

$97.99

$

Usually ships in 3-6 days

0

49

Toro 3245-34

Set Screw
(Superseded to 3245-32)

$5.49

$

In Stock, only 2 left!

0

50

Toro 32121-50

PIN-SPRING

$3.49

$

In Stock, only 3 left!

0

51

Toro 256-116

BUSHING-FLANGE

$4.49

$

In Stock, Qty 11

0

52

Toro 32151-29

RING-RETAINING

$5.49

$

In Stock, Qty 18

0

53

Toro 252-71

WASHER-THRUST

$19.99

$

In Stock, only 2 left!

0

54

Toro 5-7300

Ring Slider

$

$

Currently unavailable

55

Toro 5-6900

Hub Traction

$

$

Not available

56

Toro 32120-18

E-RING

$1.49

$

In Stock, Qty 14

0

57

Toro 5-7670

Thrust Washer

$

$

Currently unavailable

58

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

59

Toro 256-198

Bushing

$

$

Currently unavailable

60

Toro 5-9430

1/4 X 42 CHAIN W/LINK

$134.99

$

Usually ships in 3-6 days

0

61

Toro 5-7070

Sprocket & Hub (Incl. Ref. No. 63)

$

$

Not available

62

Toro 256-215

3/4ID X 3/4LG BSHG

$

$

Not available

63

Toro 3-6498

WASHER-THRUST

$6.99

$

In Stock, Qty 20+

0

64

Toro 5-6860

Fork

$

$

Currently unavailable

65

Toro 8-8760

Axle Shaft

$

$

Not available

66

Toro 3-0737

WASHER

$8.49

$

In Stock, only 3 left!

0

67

Toro 8-8120

Spacer Idler
(Superseded to 23-7250)

$7.99

$

Usually ships in 3-6 days

0

68

Toro 8-8810

Chain Lower

$

$

Not available

69

Toro 8-8770

Sprocket

$

$

Not available

70

Toro 32121-84

PIN-SPIRAL

$1.99

$

Usually ships in 3-6 days

0

71

Toro 2710-6

LINK-CONNECTING

$19.99

$

Usually ships in 3-6 days

0

72

Toro 2710-10

1/4 OFFSET LINK

$

$

Not available

73

Toro 8-8790

Collar

$

$

Currently unavailable

74

Toro 3245-31

SCREW-HSH

$15.99

$

Usually ships in 3-6 days

0

75

Toro 8-8680

Friction Plate Shaft

$

$

Not available

76

Toro 10-0070

HOUSING BEARING

$

$

Not available

77

Toro 8-8720

Friction Plate

$

$

Not available

78

Toro 283-1

PIN-CLEVIS

$2.49

$

Usually ships in 3-6 days

0

79

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

80

Toro 32127-43

Nut

$

$

Currently unavailable

81

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

82

Toro 256-204

Bushing

$

$

Currently unavailable

83

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

84

Toro 5-7410

Pulley

$

$

Not available

85

Toro 5-0946

KEY-SQUARE

$1.99

$

Usually ships in 3-6 days

0

86

Toro 3242-14

SCREW-SET,

$

$

Currently unavailable

87

Toro 3257-18

Key

$

$

Currently unavailable

88

Toro 8-9980

Bulkhead (Incl. Ref. No.82)

$

$

Currently unavailable

89

Toro 8-8620

Auger Clutch Rod

$

$

Not available

90

Toro 10-3890

EXTENSION SPRING

$22.99

$

Usually ships in 3-6 days

0

91

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

92

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 20+

0

93

Toro 3-4244

PULLEY-IDLER

$27.99

$

In Stock, only 3 left!

0

94

Toro 8-9270

Side Plate Drive

$

$

Currently unavailable

95

Toro 323-34

SCREW-HH

$6.49

$

In Stock, only 2 left!

0

96

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 14

0

97

Toro 11-3180

SPLIT SPACER

$

$

Not available
