3185 (14A-665-100) - Cub Cadet Garden Tractor Brake Assembly Parts Diagram
Garden Tractor

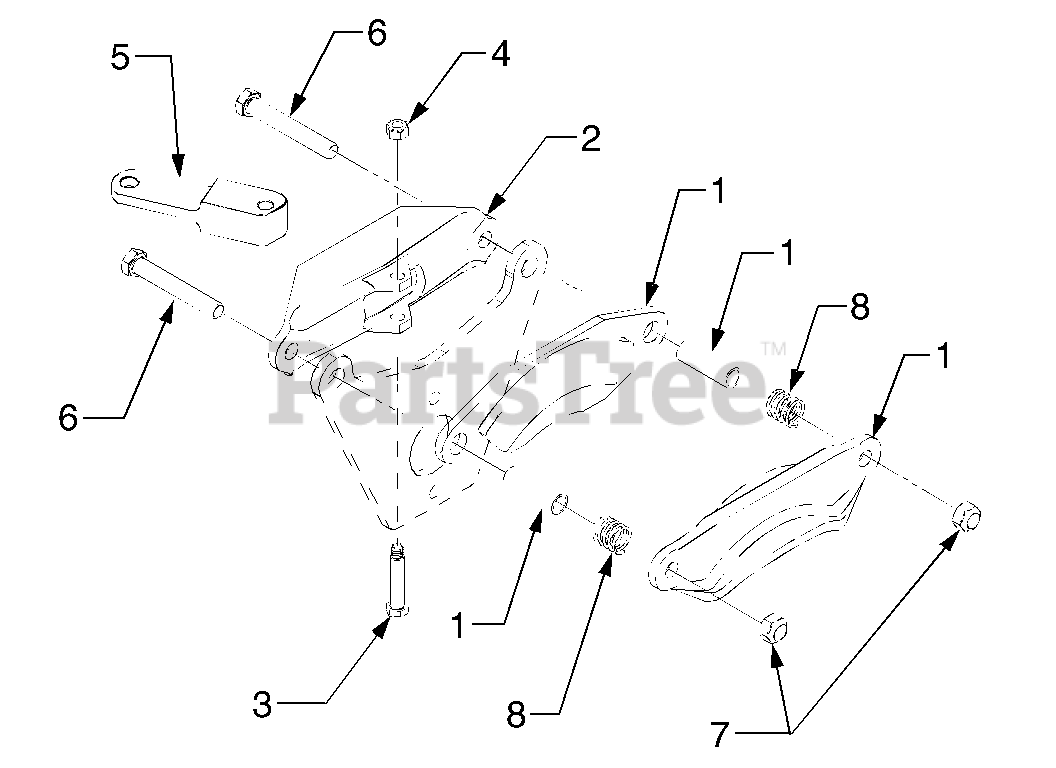

Brake Assembly Parts Diagram
Cub Cadet 661-3013
Brake Assembly Complete
$
$
Not available
Cub Cadet 759-3688
KIT-BRAKE PUCK SVC
Note: Pad Kit, Brake Includes Ref. Nos. 6 (Qty. 2), 7 (Qty. 2), and 8 (Qty. 2).
$
$
Not available
Cub Cadet 703-0931
Bracket, Brake Actuator
$
$
Not available
Cub Cadet 710-3133
Screw, Shoulder
$
$
Not available
$
$
Not available
Cub Cadet 761-3059
Arm, Brake Actuator
$54.99
$
In Stock, only 1 left!
Cub Cadet 710-0369
Screw, Hex Cap, 3/8-24 x 2.5 GR5 4
$6.99
$
Usually ships in 3-6 days
Cub Cadet 712-3054
Nut, Hex Lock, 3/8-24
$4.49
$
In Stock, Qty 7
$5.49
$
In Stock, only 1 left!
