31853 T - Toro Flex-Force Power System 60V MAX Snow Thrower (SN: 400000000 - 408999999) Electrical Assembly Parts Diagram

Flex-Force Power System 60V MAX Snow Thrower

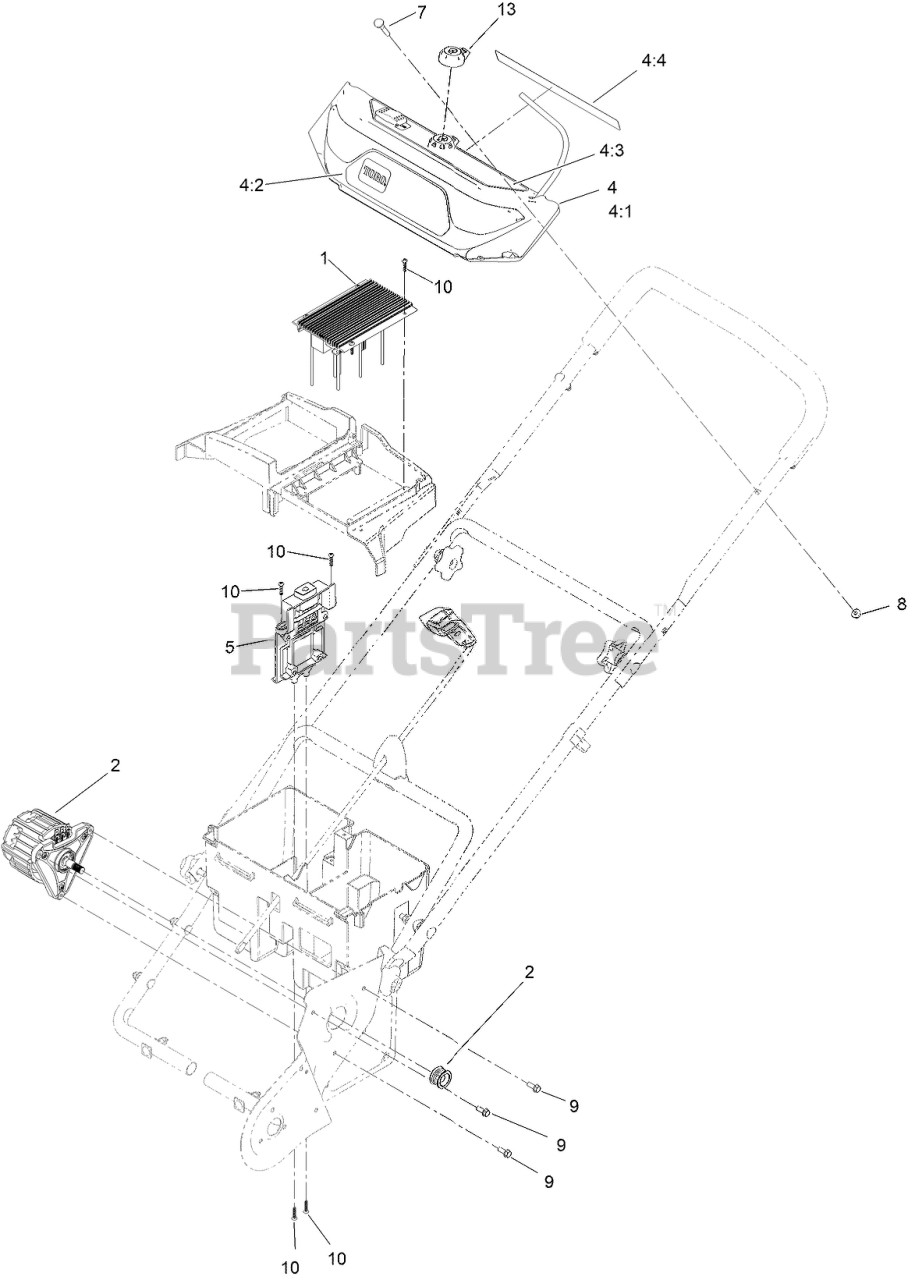

Electrical Assembly Parts Diagram

  • Title

1

Toro 137-9424

MOTOR-DRIVER, SNOW (60V)

$341.99

$

Usually ships in 3-6 days

0

2

Toro 140-2171

MOTOR-60V

$312.99

$

Usually ships in 3-6 days

0

4

Toro 137-2347

DASH PANEL ASM W/DECALS

$386.99

$

Usually ships in 3-6 days

0

4:1

Toro 137-2346

DASH PANEL ASM

$

$

Currently unavailable

4:2

Toro 137-2259

DECAL-POWER CLEAR

$11.99

$

Usually ships in 3-6 days

0

4:3

Toro 137-2258

DECAL-OPERATION

$11.99

$

Usually ships in 3-6 days

0

4:4

Toro 137-2257

DECAL-CAUTION

$4.99

$

Usually ships in 3-6 days

0

5

Toro 137-9435

BATTERY TRACK ASSEMBLY

$55.99

$

Usually ships in 3-6 days

0

7

Toro 117-7737

SCREW-HANDLE

$2.49

$

In Stock, Qty 10

0

8

Toro 119-4040

NUT-FLANGE, NI

$0.99

$

In Stock, Qty 8

0

9

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

10

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

13

Toro 139-5255

KEY-BAIL

$4.49

$

In Stock, only 3 left!

0
