3186 (14A-668-100) - Cub Cadet Garden Tractor Crankcase & Crankshaft Parts Diagram

Garden Tractor

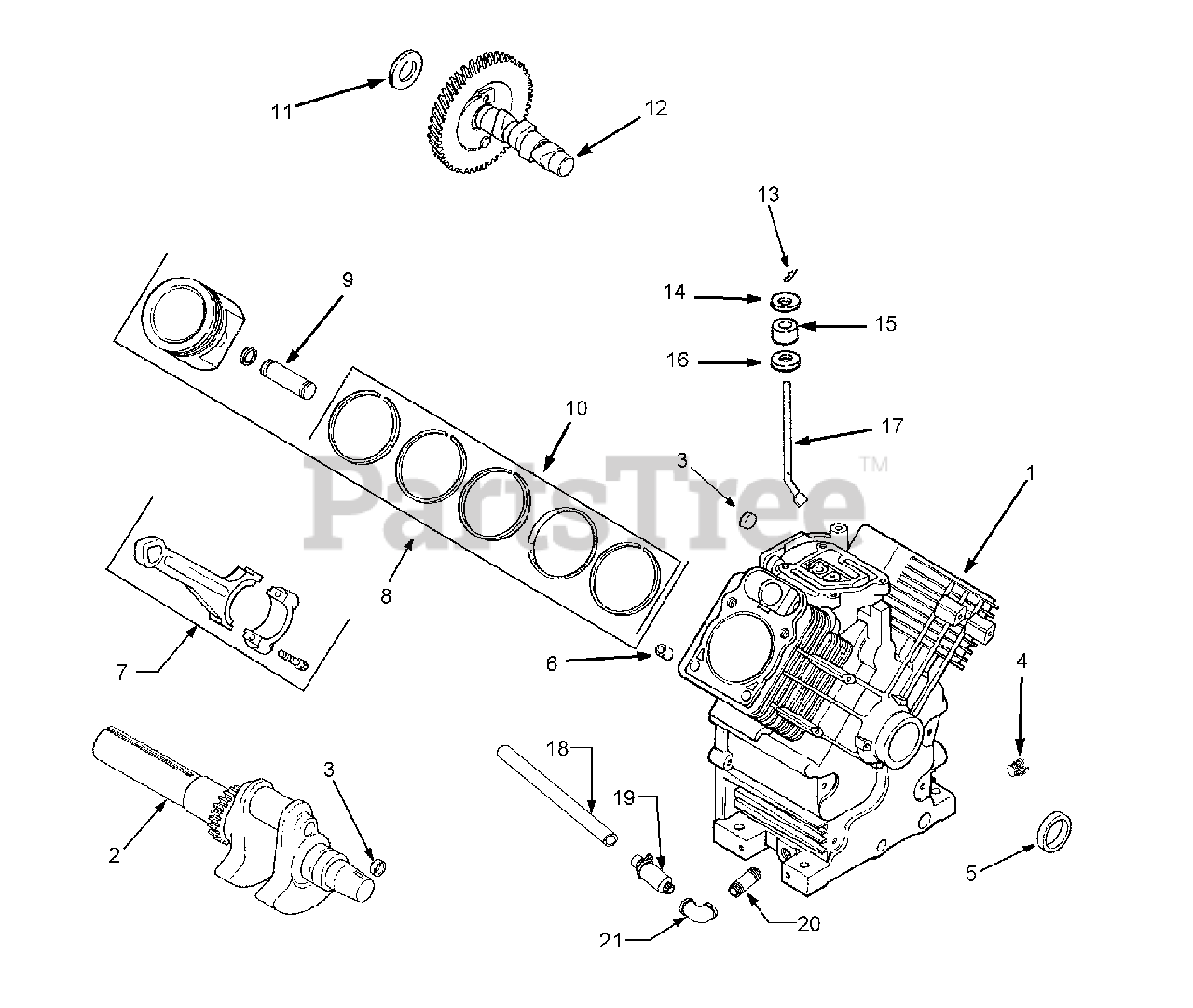

Crankcase & Crankshaft Parts Diagram

  • Title

1

Cub Cadet KH-62599

Engine, Complete

$

$

Not available

Cub Cadet KH-54-522-04

Short Block

$

$

Currently unavailable

2

Cub Cadet KH-24-014-06

Crankshaft
(Superseded to KH-24-014-347-S)

Note: (Includes 3)

$572.99

$

Usually ships in 2-5 days

0

3

Cub Cadet KH-52-139-09

Plug, Cup
(Superseded to KH-52-139-09-S)

$4.99

$

In Stock, Qty 8

0

4

Cub Cadet KH-X-75-10

Plug, Hex Head, 3/8 NPTF
(Superseded to KH-25-139-57-S)

$2.49

$

In Stock, Qty 14

0

5

Cub Cadet KH-24-032-01

Seal, Oil
(Superseded to KH-24-032-19-S)

$7.49

$

In Stock, Qty 20+

0

6

Cub Cadet KH-12-380-17

Pin, Dowel Locating
(Superseded to KH-24-380-16-S)

$4.49

$

In Stock, Qty 8

0

7

Cub Cadet KH-24-067-13

Rod, Connecting, Std
(Superseded to KH-25-067-04-S)

$59.99

$

In Stock, Qty 17

0

Cub Cadet KH-24-067-14

Rod, Connecting, .010

$

$

Not available

8

Cub Cadet KH-24-874-01

Piston w/Ring Set, Std
(Superseded to KH-24-874-46-S)

$

$

Not available

Cub Cadet KH-24-874-02

Piston w/Ring Set, .010
(Superseded to KH-24-874-48-S)

$

$

Not available

Cub Cadet KH-24-874-03

Piston w/Ring Set, .020
(Superseded to KH-24-874-49-S)

$

$

Not available

9

Cub Cadet KH-24-018-01

Retainer, Piston Pin
(Superseded to KH-24-018-01-S)

$2.49

$

In Stock, only 2 left!

0

10

Cub Cadet KH-24-108-01

Ring Set, Std
(Superseded to KH-24-108-22-S)

$

$

Not available

Cub Cadet KH-24-108-02

Ring Set, .010
(Superseded to KH-24-108-24-S)

$

$

Not available

Cub Cadet KH-24-108-03

Ring Set, .020
(Superseded to KH-24-108-25-S)

$

$

Not available

11

Cub Cadet KH-12-422-09

Shim, Camshaft, .0320
(Superseded to KH-12-422-09-S)

$2.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-12-422-13

Shim, Camshaft, .0400
(Superseded to KH-12-422-13-S)

$2.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-12-422-07

Shim, Camshaft, .0280
(Superseded to KH-12-422-07-S)

$4.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-12-422-08

Shim, Camshaft, .0300
(Superseded to KH-12-422-08-S)

$2.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-12-422-10

Shim, Camshaft, .0340
(Superseded to KH-12-422-10-S)

$2.49

$

In Stock, only 1 left!

0

Cub Cadet KH-12-422-11

Shim, Camshaft, .0360
(Superseded to KH-12-422-11-S)

$2.49

$

In Stock, only 1 left!

0

Cub Cadet KH-12-422-12

Shim, Camshaft, .0380
(Superseded to KH-12-422-12-S)

$2.99

$

In Stock, only 1 left!

0

12

Cub Cadet KH-24-012-05

Camshaft
(Superseded to KH-24-012-23-S)

$153.99

$

Usually ships in 3-6 days

0

13

Cub Cadet KH-12-380-04

Pin, Hitch

$

$

Not available

14

Cub Cadet KH-M-0631005

Washer, Plain
(Superseded to KH-M-631005)

$

$

Not available

15

Cub Cadet KH-12-032-01

Seal, Governor Cross Shaft

$

$

Not available

16

Cub Cadet KH-X-25-102

Washer, Plain
(Superseded to KH-X-25-102-S)

$2.49

$

In Stock, Qty 10

0

17

Cub Cadet KH-24-144-01

Shaft, Governor Cross

$

$

Not available

18

Cub Cadet 751-3141-12

Hose, Oil Drain
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 20+

0

19

Cub Cadet 751-3140

Drain, Oil
(Superseded to 951-10517A)

$22.99

$

In Stock, Qty 20+

0

Cub Cadet 751-3142

Cap, Oil Drain

$4.49

$

In Stock, Qty 7

0

20

Cub Cadet 737-0199

Pipe, Straight
(Superseded to 937-0199)

$

$

Not available

21

Cub Cadet 737-0272

Elbow, 90°.

$

$

Not available

Cub Cadet KH-24-755-03

Gasket Set
(Superseded to KH-24-755-107-S)

$140.99

$

In Stock, only 2 left!

0

$

$
