3186 (14A-668-100) - Cub Cadet Garden Tractor Fuel System Parts Diagram

Garden Tractor

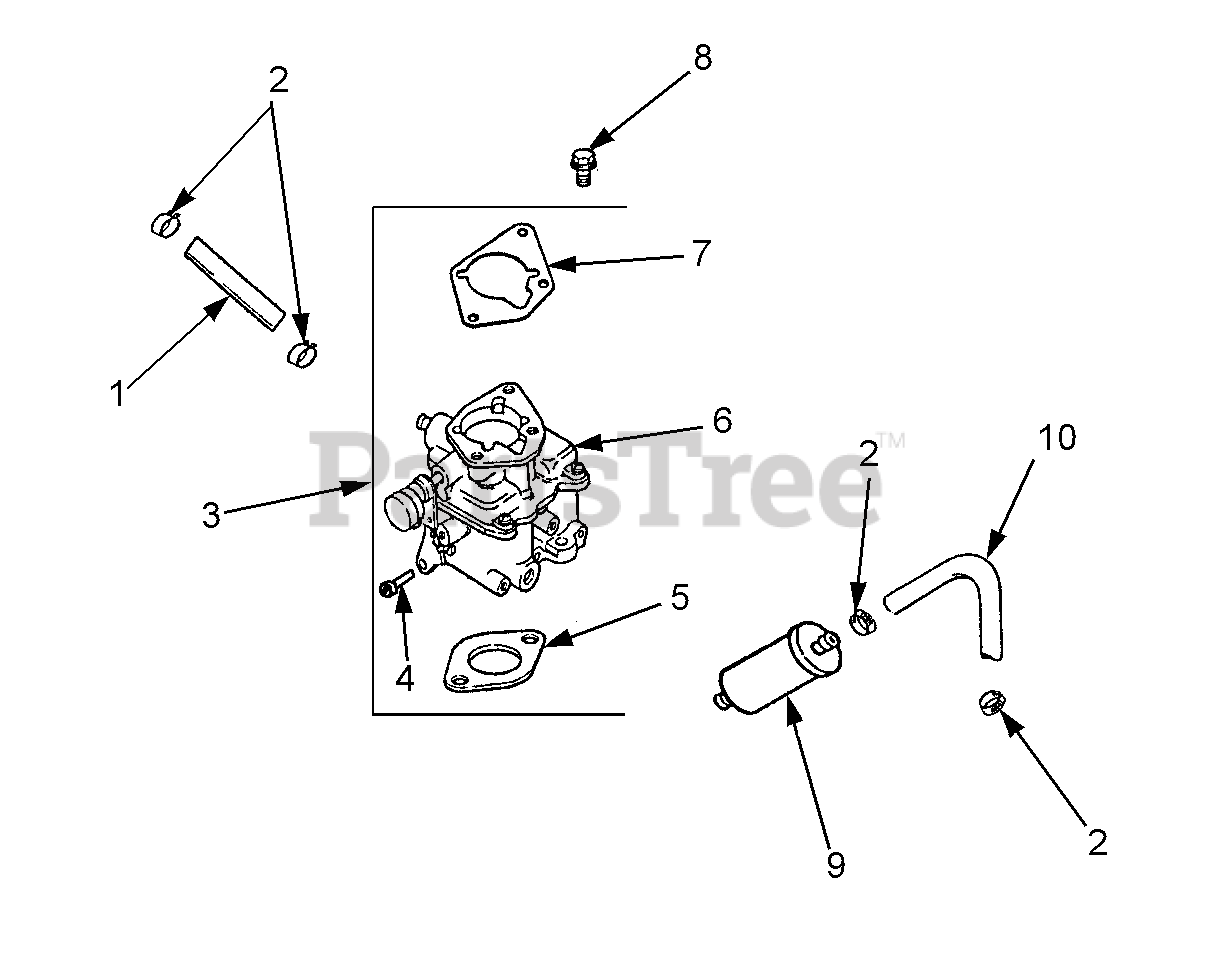

Fuel System Parts Diagram

  • Title

1

Cub Cadet KH-52-353-20

Line, Fuel 10"
(Superseded to 751-10349-16)

$33.99

$

In Stock, Qty 7

0

2

Cub Cadet KH-X-426-9

Clamp, Hose
(Superseded to KH-25-237-31-S)

$5.49

$

In Stock, Qty 11

0

3

Cub Cadet KH-24-853-35

Kit, Carburetor w/Gasket
(Superseded to KH-24-853-319-S)

Note: (Includes 4-7)

$335.99

$

Usually ships in 3-6 days

0

4

Cub Cadet KH-24-086-05

Screw, Throttle Stop
(Superseded to KH-24-086-05-S)

$5.99

$

Usually ships in 3-6 days

0

5

Cub Cadet KH-24-041-17

Gasket, Carburetor

$

$

Not available

6

Carburetor Assembly

Note: (Not available separately)

$

$

Not available

7

Cub Cadet KH-24-041-06

Gasket, Air Cleaner Base

$2.99

$

In Stock, Qty 20+

0

8

Cub Cadet KH-M-0651030

Screw, Hex Flange

$

$

Not available

9

Cub Cadet KH-24-050-02

Filter, Fuel
(Superseded to 2405013S1C)

$18.99

$

In Stock, Qty 20+

0

10

Cub Cadet KH-24-353-12

Line, Fuel 11"

$

$

Not available

Cub Cadet KH-24-757-01

Kit, Solenoid

$

$

Not available

Cub Cadet KH-24-086-07

Solenoid Screw

$

$

Not available

Cub Cadet KH-24-153-04

O-Ring

$

$

Not available

Cub Cadet KH-24-153-05

O-Ring

$

$

Not available

Cub Cadet KH-24-153-06

O-Ring

$

$

Not available

Cub Cadet KH-24-435-01

Solenoid Assembly
(Superseded to KH-24-435-01-S)

$250.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-521-01

Solenoid Seat

$

$

Not available

Cub Cadet KH-24-757-02

Kit, Float Repair
(Superseded to KH-24-757-02-S)

$154.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-041-09

Carburetor Body Gasket

$

$

Not available

Cub Cadet KH-24-086-08

Float Screw

$

$

Currently unavailable

Cub Cadet KH-24-757-03

Kit, Carburetor Repair
(Superseded to KH-24-757-03-S)

$

$

Not available

Cub Cadet KH-24-041-09

Carburetor Gasket

$

$

Not available

Cub Cadet KH-24-086-09

Carburetor Body Screw

$

$

Not available

Cub Cadet KH-24-089-11

Idle Needle Spring

$

$

Not available

Cub Cadet KH-24-153-02

Slow Jet O-Ring

$

$

Not available

Cub Cadet KH-24-153-03

Main Jet Screw O-Ring

$

$

Not available

Cub Cadet KH-24-153-04

Solenoind O-Rings

$

$

Not available

Cub Cadet KH-24-153-05

Solenoind O-Rings

$

$

Not available

Cub Cadet KH-24-153-06

Solenoind O-Rings

$

$

Not available

Cub Cadet KH-24-154-01

Inlet Needle Valve Clip

$

$

Not available

Cub Cadet KH-24-368-01

Idle Needle

$

$

Not available

Cub Cadet KH-24-462-01

Inlet Needle Valve

$

$

Not available

Cub Cadet KH-24-757-07

Kit, Choke Repair

$

$

Not available

Cub Cadet KH-24-173-02

Choke Lever Cap

$

$

Not available
