3186 (14A-668-100) - Cub Cadet Garden Tractor Lower Power Steering Parts Diagram

Garden Tractor

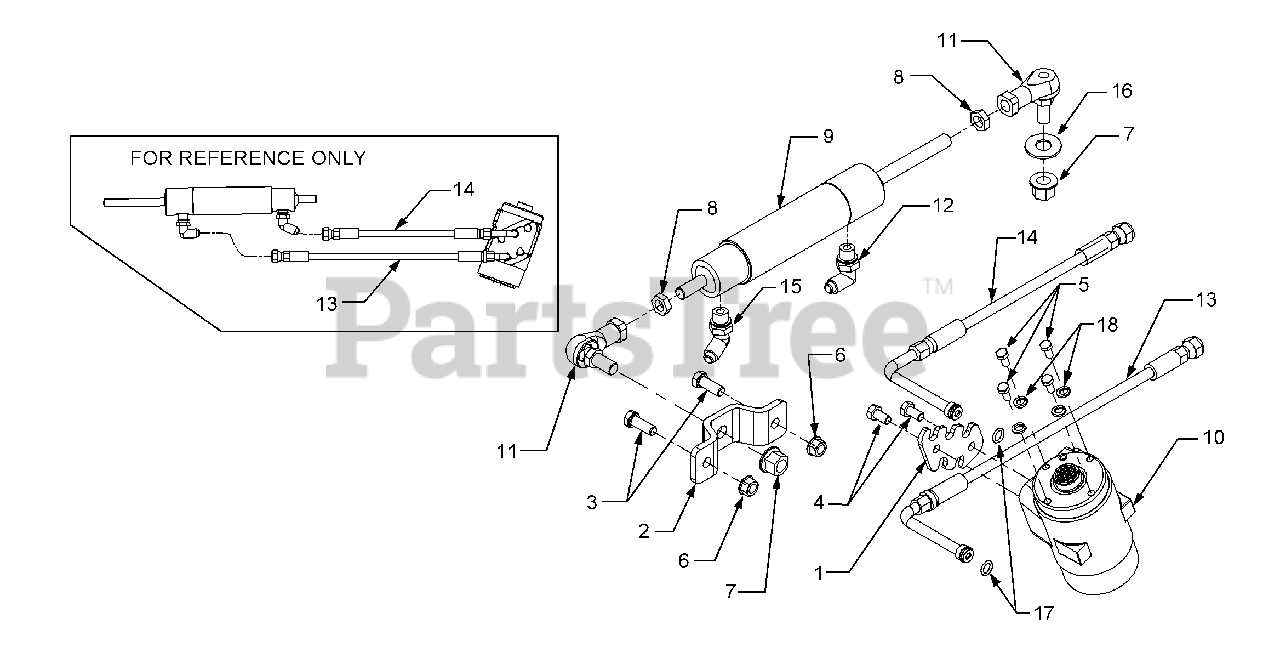

Lower Power Steering Parts Diagram

  • Title

1

Cub Cadet 703-3015

Plate, Steering Pump Port

Note: (Code 0498)

Variations

703-3015-0498

Cub Cadet 703-3015-0498

USE 703-3015-0637 PLATE-STRG - OLD CUB YELLOW (0498)

$

$

Not available

703-3015-0637

Cub Cadet 703-3015-0637

PLATE-STRG PUMP - POWDER BLACK (0637)

$

$

Not available

703-3015-0716

Cub Cadet 703-3015-0716

PLATE-STEERING PUMP - CUB YELLOW-99 (0716)

$

$

Not available

$

$

2

Cub Cadet 703-3189

Bracket, Cylinder Mounting

Note: (Code 0498)

Variations

703-3189-0498

Cub Cadet 703-3189-0498

USE 703-3189-0716 BRACKET-CYL - OLD CUB YELLOW (0498)

$

$

Not available

703-3189-0637

Cub Cadet 703-3189-0637

BRACKET-CYLINDER MOUNTING - POWDER BLACK (0637)

$

$

Not available

703-3189-0716

Cub Cadet 703-3189-0716

BRACKET-CYLINDER MOUNTING - CUB YELLOW-99 (0716)

$

$

Not available

$39.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-0514

Screw, Hex Cap 3/8-16 x 1.0 GR5

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-3138

Screw, Hex Cap M8-1.25 x 16MM GR5

$7.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-3140

Screw, Hex Cap, M6 x 14MM

$

$

Not available

6

Cub Cadet 712-0431

Nut, Hex Flange Lock, 3/8-16
(Superseded to 912-0431)

$5.49

$

In Stock, Qty 20+

0

7

Cub Cadet 712-3103

Nut, Hex Flange Lock, M12 x 1.75

$4.49

$

In Stock, only 2 left!

0

8

Cub Cadet 712-3104

Nut, Hex, M12 x 1.75 RH

$7.49

$

In Stock, only 3 left!

0

9

Cub Cadet 717-3424

Cylinder, Steering

$416.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 717-3442

Pump, Hydraulic Steering
(Superseded to 917-3442)

$

$

Not available

11

Cub Cadet 723-0462

Ball Joint, 12MM x 1.75 RH

$73.99

$

In Stock, Qty 8

0

12

Cub Cadet 727-3012

Fitting, 90 Degree Elbow

$28.99

$

In Stock, only 4 left!

0

13

Cub Cadet 727-3126

Hose, Front Steering

$151.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 727-3127

Hose, Rear Steering

$166.99

$

In Stock, only 1 left!

0

15

Cub Cadet 727-3159

Fitting, 45 Degree

$32.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 736-3084

Washer, Flat, .51 x 1.12 x .060

$5.49

$

In Stock, Qty 20+

0

17

Cub Cadet 721-0493

O-Ring, .426 x .566 x .070

$4.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 736-0329

Washer, Lock, 1/4"
(Superseded to 936-0329)

$4.99

$

In Stock, Qty 15

0
