31860 (e 24) - Toro 24" Snow Max 60V Snow Thrower (SN: 400000000 - 999999999) Powerhead Assembly No. 147-1799 Parts Diagram

24" Snow Max 60V Snow Thrower

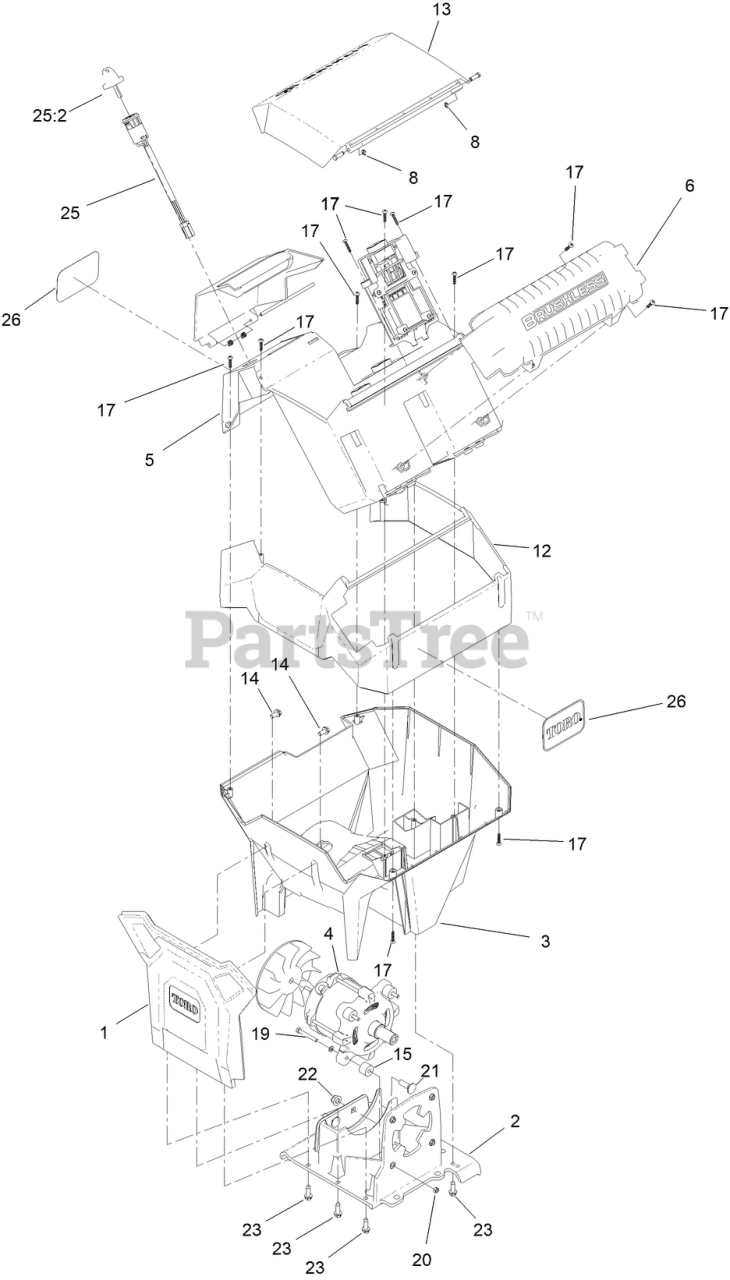

Powerhead Assembly No. 147-1799 Parts Diagram

  • Title

1

Toro 147-1792

BADGE-PLATE

$

$

Currently unavailable

2

Toro 147-1783

MOUNT-POWERHEAD

$

$

Currently unavailable

3

Toro 147-1793

HOUSING-MOTOR

$

$

Currently unavailable

4

Toro 147-4102

MOTOR-60V, SNOWMASTER

$359.99

$

Usually ships in 3-6 days

0

5

Toro 139-5319

BUCKET-BATTERY

$66.99

$

Usually ships in 3-6 days

0

6

Toro 147-9461

MOTOR CONTROLLER ASM-POWERHEAD

$408.99

$

Usually ships in 3-6 days

0

8

Toro 110-1758

RING-RETAINING

$1.49

$

In Stock, Qty 20+

0

12

Toro 139-5318

COVER-CONTROLLER

$34.99

$

Usually ships in 3-6 days

0

13

Toro 139-5320

DOOR-TOP

$33.99

$

Usually ships in 3-6 days

0

14

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

15

Toro 147-4103

SPACER-MOTOR

$

$

Currently unavailable

17

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

19

Toro 135-4328

BOLT-M5X0.8MM X 40 MM LONG

$1.99

$

Usually ships in 3-6 days

0

20

Toro 48-7880

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

21

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, only 2 left!

0

22

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

23

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

25

Toro 161-5981

IGNITION ASM-POWERHEAD

$36.99

$

Usually ships in 3-6 days

0

25:2

Toro 147-1755

KEY-60V 2 STAGE POWER HEAD

$7.49

$

In Stock, only 2 left!

0

26

Toro 140-4183

DECAL

$3.99

$

Usually ships in 3-6 days

0
