31875 (e 26) - Toro 26" Power Max 60V Snow Thrower (SN: 411400000 - 412999999) Main Frame and Auger Housing Assembly Parts Diagram

26" Power Max 60V Snow Thrower

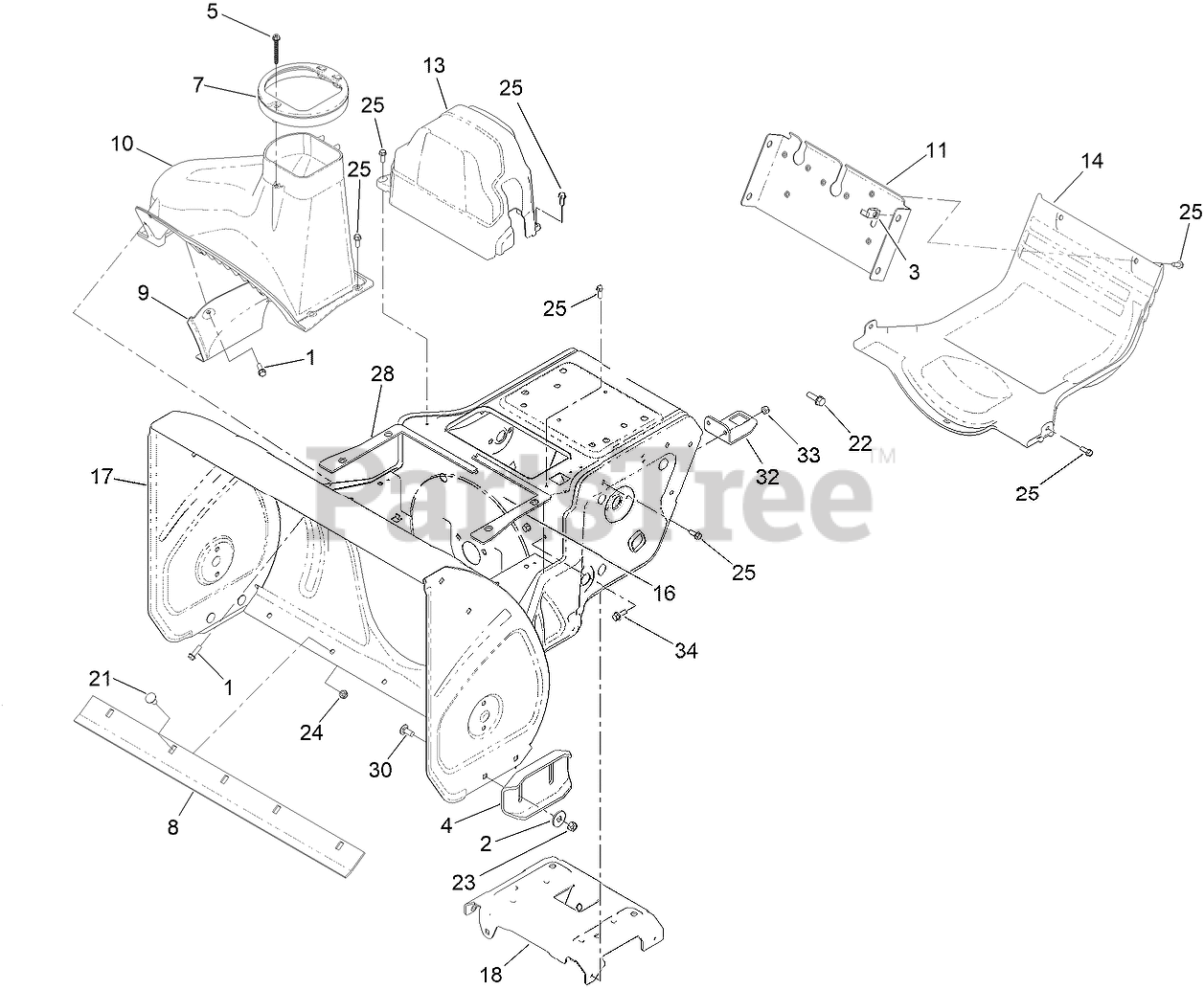

Main Frame and Auger Housing Assembly Parts Diagram

  • Title

1

Toro 137-3099

SCREW-PLASTITE, HWH

$1.49

$

Usually ships in 3-6 days

0

2

Toro 119-4150

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 94-2413

NUT-U

$2.99

$

In Stock, Qty 19

0

4

Toro 106-4588-01

SKID

$22.99

$

In Stock, only 2 left!

0

5

Toro 137-3015

SCREW-HWH, PLASTITE

$5.99

$

Usually ships in 3-6 days

0

7

Toro 138-3608

GUIDE-CHUTE

$5.99

$

Usually ships in 3-6 days

0

8

Toro 120-3872-01

SCRAPER-26 INCH

$31.99

$

In Stock, only 2 left!

0

9

Toro 120-7158-01

COVER-LINER

$12.99

$

Usually ships in 3-6 days

0

10

Toro 120-7159

COVER

$106.99

$

In Stock, only 2 left!

0

11

Toro 120-7161-01

BRACE-FRAME

$17.99

$

Usually ships in 3-6 days

0

13

Toro 120-7177

COVER-BELT

$15.99

$

Usually ships in 3-6 days

0

14

Toro 120-7178

COVER-LOWER

$27.99

$

In Stock, only 2 left!

0

16

Toro 120-7181

SEAL-HOUSING, LH

$2.49

$

Usually ships in 3-6 days

0

17

Toro 139-3691

FRAME ASM

$671.99

$

Usually ships in 3-6 days

0

18

Toro 139-5270

BRACE-FRAME

$41.99

$

Usually ships in 0 days

0

21

Toro 137-3060

BOLT-CARR

$1.99

$

Usually ships in 3-6 days

0

22

Toro 137-3067

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

23

Toro 119-4038

NUT-HEX

$3.49

$

In Stock, only 3 left!

0

24

Toro 137-3089

NUT-HEX

$1.49

$

In Stock, only 1 left!

0

25

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

28

Toro 121-6841

SEAL-HOUSING, RH

$2.49

$

Usually ships in 3-6 days

0

30

Toro 137-3061

BOLT-CARR

$0.99

$

In Stock, Qty 20+

0

32

Toro 137-3410-03

BRACKET-POST, CHUTE

$4.99

$

Usually ships in 3-6 days

0

33

Toro 120-9678

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

34

Toro 137-3094

NUT-HEX

$1.49

$

In Stock, Qty 6

0
