31875 (e 26) - Toro 26" Power Max 60V Snow Thrower (SN: 413000000 - 414119399) 60 Volt Powerhead Assembly No. 139-5315 Parts Diagram

26" Power Max 60V Snow Thrower

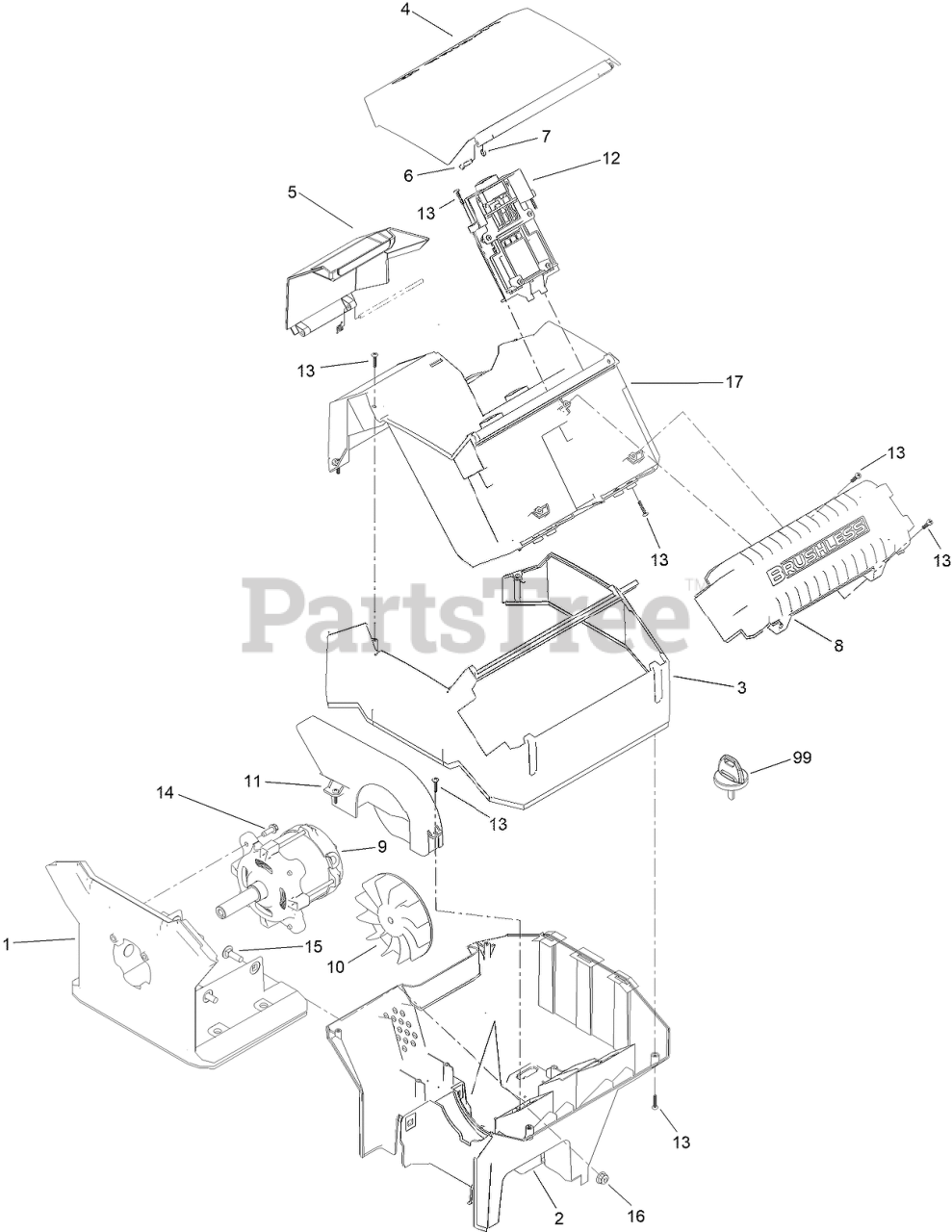

60 Volt Powerhead Assembly No. 139-5315 Parts Diagram

  • Title

1

Toro 139-5316

MOTOR MOUNT

$119.99

$

Usually ships in 3-6 days

0

2

Toro 139-5317

HOUSING-MOTOR

$75.99

$

Usually ships in 3-6 days

0

3

Toro 139-5318

COVER-CONTROLLER

$33.99

$

Usually ships in 3-6 days

0

4

Toro 139-5320

DOOR-TOP

$31.99

$

Usually ships in 3-6 days

0

5

Toro 139-5321

DOOR-BOTTOM

$17.99

$

Usually ships in 3-6 days

0

6

Toro 144-4121

PIN-BATTERY COVER

$113.99

$

Usually ships in 0 days

0

7

Toro 110-1758

RING-RETAINING

$1.49

$

In Stock, Qty 20+

0

8

Toro 147-9461

MOTOR CONTROLLER ASM-POWERHEAD

$391.99

$

Usually ships in 3-6 days

0

9

Toro 139-5289

MOTOR-60V, 2 STAGE

$391.99

$

In Stock, only 1 left!

0

10

Toro 139-5322

FAN-FC

$

$

Currently unavailable

11

Toro 139-5269

COVER-FAN

$17.99

$

Usually ships in 3-6 days

0

12

Toro 137-9435

BATTERY TRACK ASSEMBLY

$55.99

$

Usually ships in 3-6 days

0

13

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

14

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

15

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 14

0

16

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Toro 139-5319

BUCKET-BATTERY

$63.99

$

Usually ships in 3-6 days

0

99

Toro 147-1755

KEY-60V 2 STAGE POWER HEAD

$7.49

$

Usually ships in 3-6 days

0
