319 E (1694584) - Simplicity 19" Snow Thrower, 3hp Auger Chute Group (026acg) Parts Diagram

19" Snow Thrower, 3hp

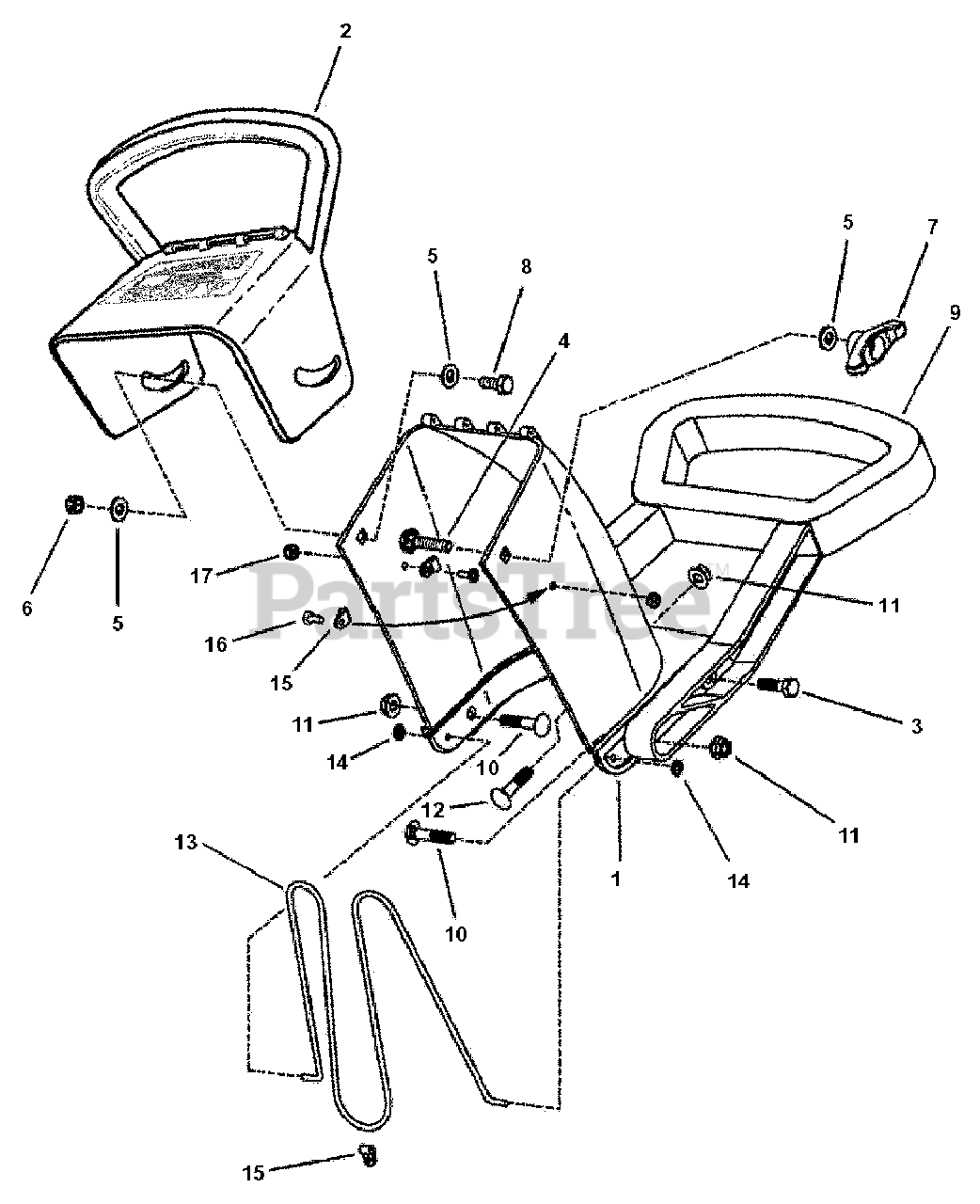

Auger Chute Group (026acg) Parts Diagram

  • Title

1

Simplicity 7052973SM

CHUTE, Discharge, with inserts

$96.99

$

Usually ships in 2-12 days

0

2

Simplicity 7052975SM

DEFLECTOR, Chute (Includes Decal # 7024844)

$74.99

$

Usually ships in 2-12 days

0

3

Simplicity 1921332SM

SCREW, 5/16-18 x 3/4" Hex Head Cap, Grade 2
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

4

Simplicity 1931335SM

BOLT, 5/16-18 x 1" Short Neck Carriage, Grade 5
(Superseded to 703800)

$3.99

$

In Stock, Qty 19

0

5

Simplicity 1918265SM

WASHER, 5/16 Flat
(Superseded to 703350)

$4.49

$

In Stock, Qty 10

0

6

Simplicity 7091074SM

NUT, 5/16-24 Hex Center Lock, Grade B
(Superseded to 703896)

$3.49

$

In Stock, Qty 11

0

7

Simplicity 1716632SM

KNOB, 5/16-18 Wing, Black
(Superseded to 703065)

$7.49

$

In Stock, Qty 20+

0

8

Simplicity 1921515SM

SCREW, 5/16-24 x 3/4" Hex Head Cap, Grade 5
(Superseded to 703336)

$4.99

$

In Stock, Qty 14

0

9

Simplicity 7046340SM

HANDLE, Chute Control

$58.99

$

Usually ships in 2-12 days

0

10

Simplicity 1960655SM

CARRIAGE BOLT, 5/16-18 x 1-1/2"
(Superseded to 703446)

$4.49

$

In Stock, only 2 left!

0

11

Simplicity 1931277SM

NUT, 5/16-18 Hex Flange Lock, Grade 5
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

12

Simplicity 1931333SM

BOLT, 5/16-18 x 3/4" Short Neck Carriage, Grade 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 7019692SM

WIRE, Safety

$33.99

$

Usually ships in 2-12 days

0

14

Simplicity 1960521SM

FASTENER, Push On .156 Internal Diameter

$3.49

$

In Stock, only 3 left!

0

15

Simplicity 7074198SM

CLIP, Guard, Tinnerman #C2980

$3.49

$

Usually ships in 2-12 days

0

16

Simplicity 7092077SM

SCREW, #8-32 x 1/2 Pan Head Cross Recess

$2.99

$

Usually ships in 2-12 days

0

17

Simplicity 7092078SM

NUT, #8-32 Hex, with free spinning external lock washer

$2.99

$

Usually ships in 2-12 days

0
