319 E (1694584) - Simplicity 19" Snow Thrower, 3hp Engine Group (026eg) Parts Diagram

19" Snow Thrower, 3hp

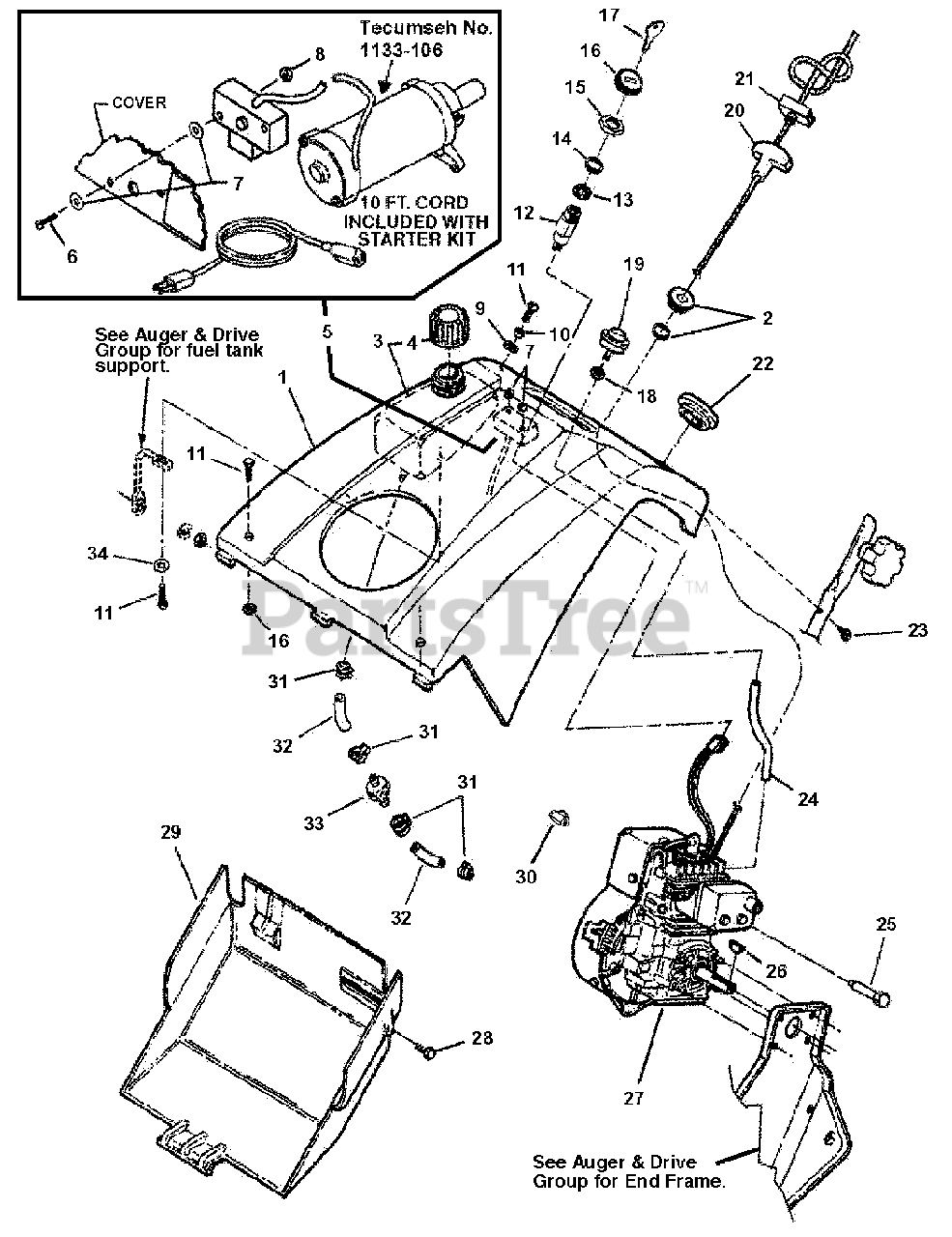

Engine Group (026eg) Parts Diagram

  • Title

1

Simplicity 7058013SM

COVER, Top (Includes Ref. No. 2)
(Superseded to 7052977YP)

$426.99

$

Usually ships in 2-12 days

0

2

Simplicity 7024636SM

EYELET, Cover, Pull Rope

$2.49

$

Usually ships in 2-12 days

0

3

Simplicity 7052974SM

ASSEMBLY, Fuel Tank (Includes Ref. No. 4)

$152.99

$

Usually ships in 2-12 days

0

4

Simplicity 7024495SM

CAP, Fuel Tank

$10.99

$

Usually ships in 2-12 days

0

5

KIT, Electric Start, Electric Start Models Only (Tecumseh P/N 1133-106)

$

$

Not available

6

Simplicity 7090866SM

SCREW, #10-24 x 1-3/4" Phillips Pan Head, Electric Start Models Only

$2.99

$

Usually ships in 2-12 days

0

7

Simplicity 7090010SM

WASHER, #10 Flat, Electric Start Models Only

$

$

Not available

8

Simplicity 7090623SM

NUT, #10-24 Hex Flange Lock, Electric Start Models Only
(Superseded to 703917)

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 7027910SM

ISOLATOR, Fuel Tank/Cover

$4.49

$

Usually ships in 2-12 days

0

10

Simplicity 7027911SM

SPACER

$5.99

$

Usually ships in 2-12 days

0

11

Simplicity 1923341SM

CAPSCREW, 1/4-20 x 3/4" Hex Head, Grade 5

$4.49

$

In Stock, Qty 8

0

12

Simplicity 1664804SM

SWITCH, Ignition
(Superseded to 7017817YP)

$31.99

$

In Stock, only 2 left!

0

13

Simplicity 1960547SM

WASHER, 5/8 Internal Tooth Lock

$4.49

$

In Stock, Qty 6

0

14

Simplicity 1960547SM

WASHER, 5/8 Internal Tooth Lock

$4.49

$

In Stock, Qty 6

0

15

Simplicity 2122234SM

NUT, 5/8-32 Hex
(Superseded to 704229)

$3.49

$

Usually ships in 2-12 days

0

16

Simplicity 7023506SM

BEZEL

$4.49

$

Usually ships in 2-12 days

0

17

Simplicity 1717163SM

KEY, pair

$8.99

$

In Stock, Qty 13

0

18

Simplicity 1930641SM

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

19

Simplicity 7014638SM

PRIMER

$

$

Not available

20

Simplicity 7025063SM

HANDLE, Pull Rope

$5.49

$

Usually ships in 2-12 days

0

21

Simplicity 7028202SM

INSERT, Starter Handle

$2.49

$

Usually ships in 2-12 days

0

22

Simplicity 7091183SM

PLUG, Hole

$3.49

$

Usually ships in 2-12 days

0

23

Simplicity 7091196SM

SCREW, #8 x 1-1/4" Hi-Lo Taptite

$4.99

$

Usually ships in 2-12 days

0

24

Simplicity 7014639SM

HOSE, Primer

$7.99

$

Usually ships in 2-12 days

0

25

Simplicity 7024640SM

MUFFLER STUD, LE319

$

$

Not available

26

Simplicity 2810224SM

KEY, 5/32 x 5/8" Woodruff

$3.99

$

Usually ships in 2-12 days

0

27

ENGINE, 3HP Tecumseh, Manual Start, TH098SA-1734E

$

$

Not available

27

ENGINE, 3HP Tecumseh, Electric Start, TH098SA-1733E

$

$

Not available

28

Simplicity 7090913SM

SCREW, #10-24 x 1/2" Hex Washer Taptite, Torx
(Superseded to 704060)

$3.49

$

In Stock, Qty 12

0

29

Simplicity 7023978SM

COVER, Bottom, Manual Start

$57.99

$

In Stock, only 1 left!

0

29

Simplicity 7024923SM

COVER, Bottom, Electric Start

$20.99

$

Usually ships in 2-12 days

0

30

Simplicity 7028599SM

KNOB, Red

$3.49

$

Usually ships in 2-12 days

0

31

Simplicity 2860112SM

CLAMP, Fuel Hose

$3.99

$

Usually ships in 2-12 days

0

32

Simplicity 1718678SM

HOSE, Fuel, 1/4 I.D. x 8-1/2" Long

$

$

Not available

33

Simplicity 2173206SM

FILTER, In-Line
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

34

Simplicity 1916964SM

WASHER, 1/4 Split Lock
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0
