319 M (1694382) - Simplicity 19" Snow Thrower, 3hp Handles Group (02601) Parts Diagram

19" Snow Thrower, 3hp

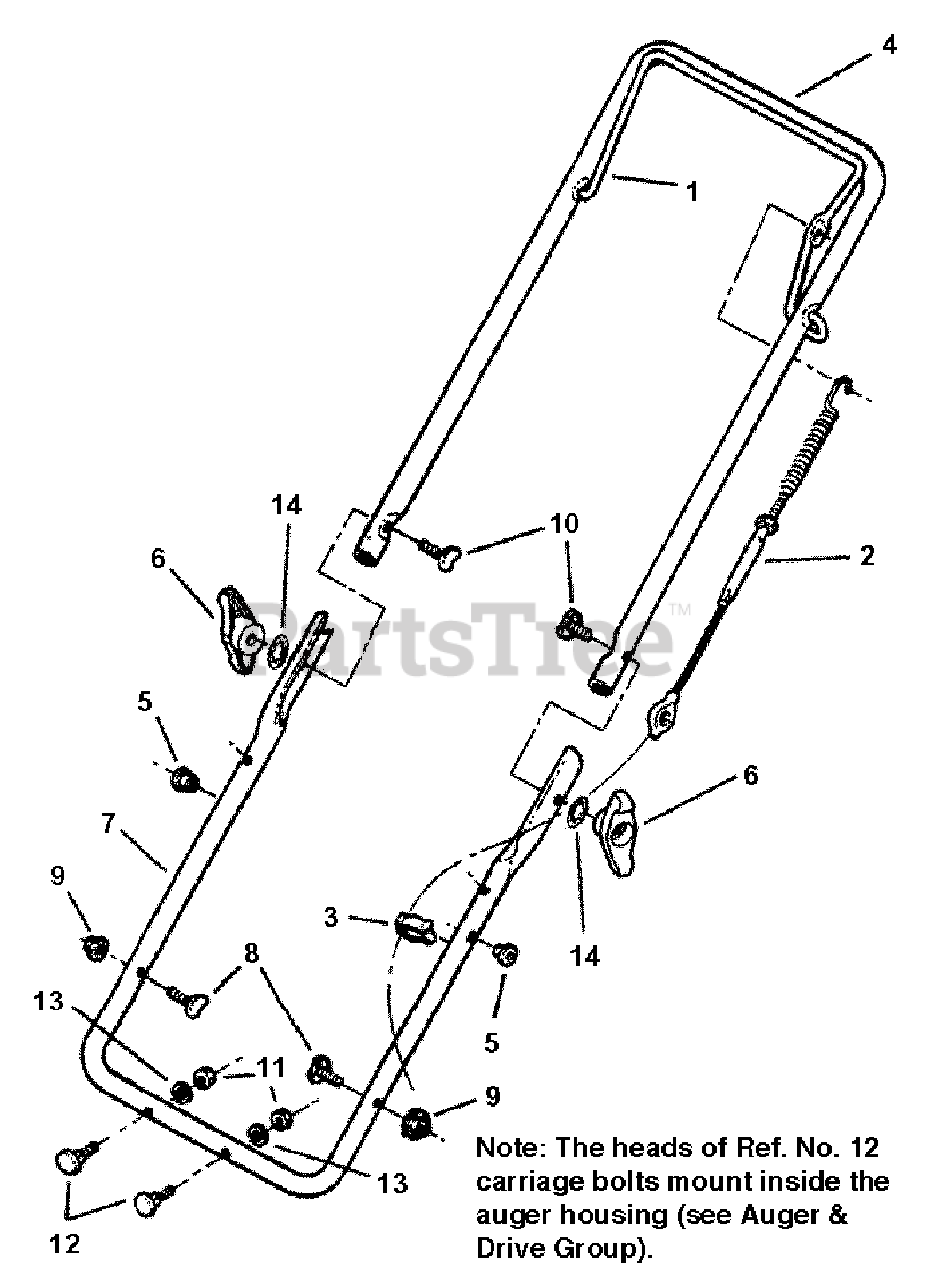

Handles Group (02601) Parts Diagram

  • Title

1

Simplicity 7024645SM

BAIL, Drive Control

$56.99

$

In Stock, only 1 left!

0

2

Simplicity 7024662SM

CABLE, Drive Control

$15.99

$

In Stock, only 3 left!

0

3

Simplicity 7023813SM

CLIP, Wiring Harness

$3.49

$

In Stock, Qty 16

0

4

Simplicity 7033496SM

HANDLE, Upper

$94.99

$

Usually ships in 2-12 days

0

5

Simplicity 7091182SM

INSERT, Nylon

$3.49

$

In Stock, only 4 left!

0

6

Simplicity 1716632SM

KNOB, 5/16-18 Wing, Black
(Superseded to 703065)

$7.49

$

In Stock, Qty 20+

0

7

Simplicity 7036570SM

HANDLE, Lower

$168.99

$

Usually ships in 2-12 days

0

8

Simplicity 7091190SM

BOLT, 5/16-18 x 1-3/8" Curved Head
(Superseded to 704063)

$5.99

$

Usually ships in 2-12 days

0

9

Simplicity 1931277SM

NUT, 5/16-18 Hex Flange Lock, Grade 5
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

10

Simplicity 7091013SM

BOLT, 5/16-18 x 2" Curved Head, Grade 2

$5.99

$

In Stock, only 2 left!

0

11

Simplicity 1917372SM

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

$3.49

$

In Stock, only 4 left!

0

12

Simplicity 1931337SM

CARRIAGE BOLT, 5/16-18 x 1-1/2, Grade 5
(Superseded to 703296)

$4.49

$

In Stock, only 3 left!

0

13

Simplicity 1917356SM

WASHER, 5/16 Split Lock
(Superseded to 5025170SM)

$4.49

$

Usually ships in 2-12 days

0

14

Simplicity 1923300SM

WASHER, 5/16 Internal Tooth Lock

$3.99

$

In Stock, only 4 left!

0
