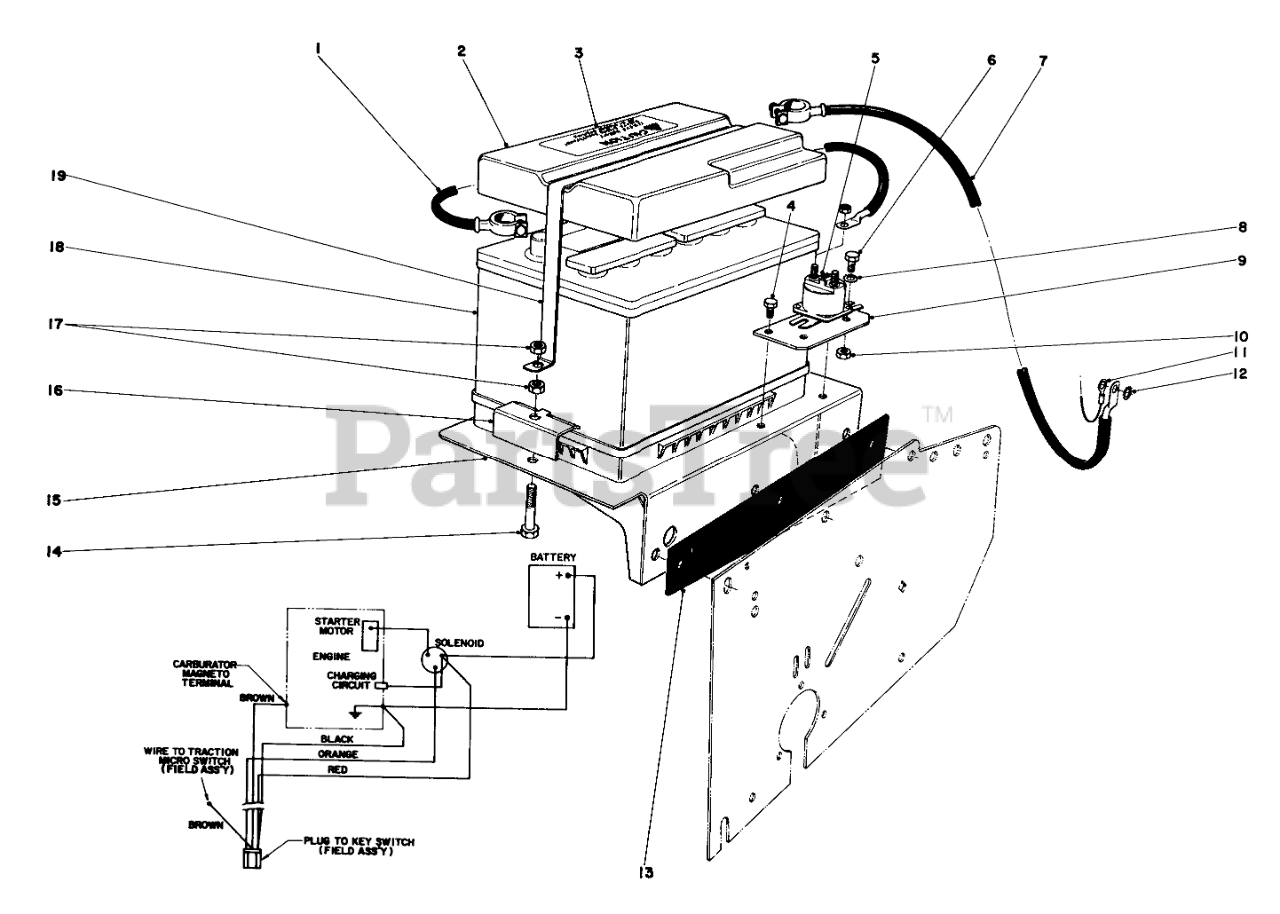

31995 (1032) - Toro 32" Snow Thrower (SN: 005000001 - 005999999) (1975) BATTERY AND WIRING DIAGRAM Parts Diagram

32" Snow Thrower

BATTERY AND WIRING DIAGRAM Parts Diagram

  • Title

1

Toro 22-9320

BATT-SOLENOID CABLE

$241.99

$

Usually ships in 3-6 days

0

2

Toro 6-1889

Cover-Battery (Incl. Ref. #3)
(Superseded to 8-2839)

$

$

Not available

3

Toro 22-8890

Decal
(Superseded to 38-0530)

$

$

Not available

4

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 12

0

5

Toro 6-1600

SOLENOID

$72.99

$

Usually ships in 3-6 days

0

6

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

7

Toro 22-9330

BATT-GROUND CABLE

$

$

Not available

8

Toro 3255-7

WASHER-LOCK/EXT

$1.99

$

Usually ships in 3-6 days

0

9

Toro 22-8880

Bracket Solenoid

$

$

Not available

10

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

11

Toro 22-9020

Ignition Wire Harness

$

$

Not available

12

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 7

0

13

Toro 24-6150

Batery Isolation Pad

$

$

Not available

14

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 10

0

15

Toro 22-8830

Battery Mounting Plate

$

$

Not available

16

Toro 22-8870

BATTERY CLAMP

$

$

Not available

17

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 5

0

18

Toro 239-16

Battery

$

$

Not available

19

Toro 22-8850

Strap Battery
(Superseded to 22-8850-03)

$101.99

$

Usually ships in 3-6 days

0
