31995 (1032) - Toro 32" Snow Thrower (SN: 006000001 - 006999999) (1976) ENGINE ASSEMBLY Parts Diagram

32" Snow Thrower

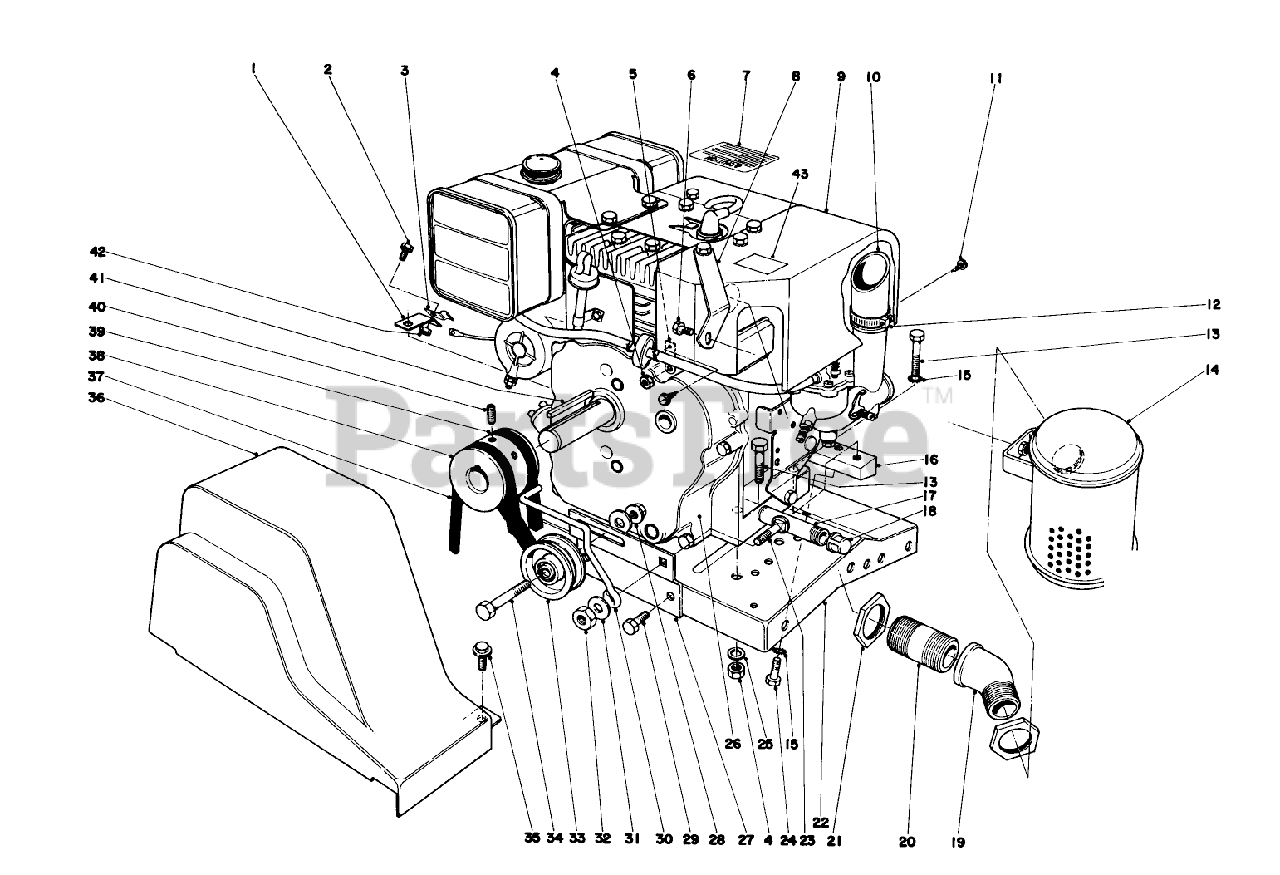

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 22-9060

Bracken Wire Clamp

$

$

Not available

2

Toro 3290-321

SCREW-HWH

$4.49

$

In Stock, only 2 left!

0

3

Toro 2412-51

CABLE CLAMP

$

$

Not available

4

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

5

Toro 22-9050

Standoff-Heater Box

$

$

Not available

6

Toro 32140-61

5/16-18 X 5/8 SEMS SC

$

$

Not available

7

Toro 22-9990

Decal Instruction

$

$

Currently unavailable

8

Toro 23-2460

Bracket Muffler Mounting

$

$

Not available

9

Toro 22-9210

Heater Box

$

$

Not available

10

Toro 23-2310

Carburetor Stack

$

$

Not available

11

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

12

Toro 2412-53

Camp

$

$

Not available

13

Toro 322-9

SCREW-HH

$3.49

$

In Stock, Qty 13

0

14

Toro 22-9080

Muffler

$

$

Not available

15

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 7

0

16

Toro 22-8960

Block Engine Mounting

$

$

Not available

17

Toro 289-20

NIPPLE-PIPE

$

$

Not available

18

Toro 288-4

CAP-PIPE

$23.99

$

In Stock, only 1 left!

0

19

Toro 2811-15

Elbow

$

$

Not available

20

Toro 22-9070

Exhaust Pipe

$

$

Not available

21

Toro 3290-163

Locknut

$

$

Not available

22

Toro 22-9030

Base-Engine

$

$

Not available

23

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, Qty 5

0

24

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

25

Toro 3256-33

Washer

$

$

Currently unavailable

26

Toro 221470

Engine

$

$

Currently unavailable

27

Toro 22-7960

Belt Idler Bracket
(Superseded to 41-8580)

$

$

Not available

28

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

29

Toro 32144-15

SCREW-HHFTF

$9.49

$

Usually ships in 3-6 days

0

30

Toro 8-8830

BELT GUIDE

$

$

Not available

31

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 6

0

32

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 20+

0

33

Toro 244-63

PULLEY B

$

$

Not available

34

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

35

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 12

0

36

Toro 25-1120

Belt Guard

$

$

Not available

37

Toro 23-9080

V-Belt
(Superseded to 26-9670)

$25.99

$

In Stock, only 1 left!

0

38

Toro 214100

Pulley

$

$

Currently unavailable

39

Toro 17-6540

V-BELT

$30.99

$

In Stock, Qty 5

0

40

Toro 3246-14

Screw-Set
(Superseded to 3246-3)

$12.99

$

Usually ships in 3-6 days

0

41

Toro 5-0930

KEY

$14.99

$

Usually ships in 3-6 days

0

42

Toro 32149-7

NUT-KEPS

$0.99

$

In Stock, Qty 10

0

43

Toro 2210-164

Decal-Tecumseh

$

$

Not available
