31995 (1032) - Toro 32" Snow Thrower (SN: 006000001 - 006999999) (1976) HANDLE ASSEMBLY Parts Diagram

32" Snow Thrower

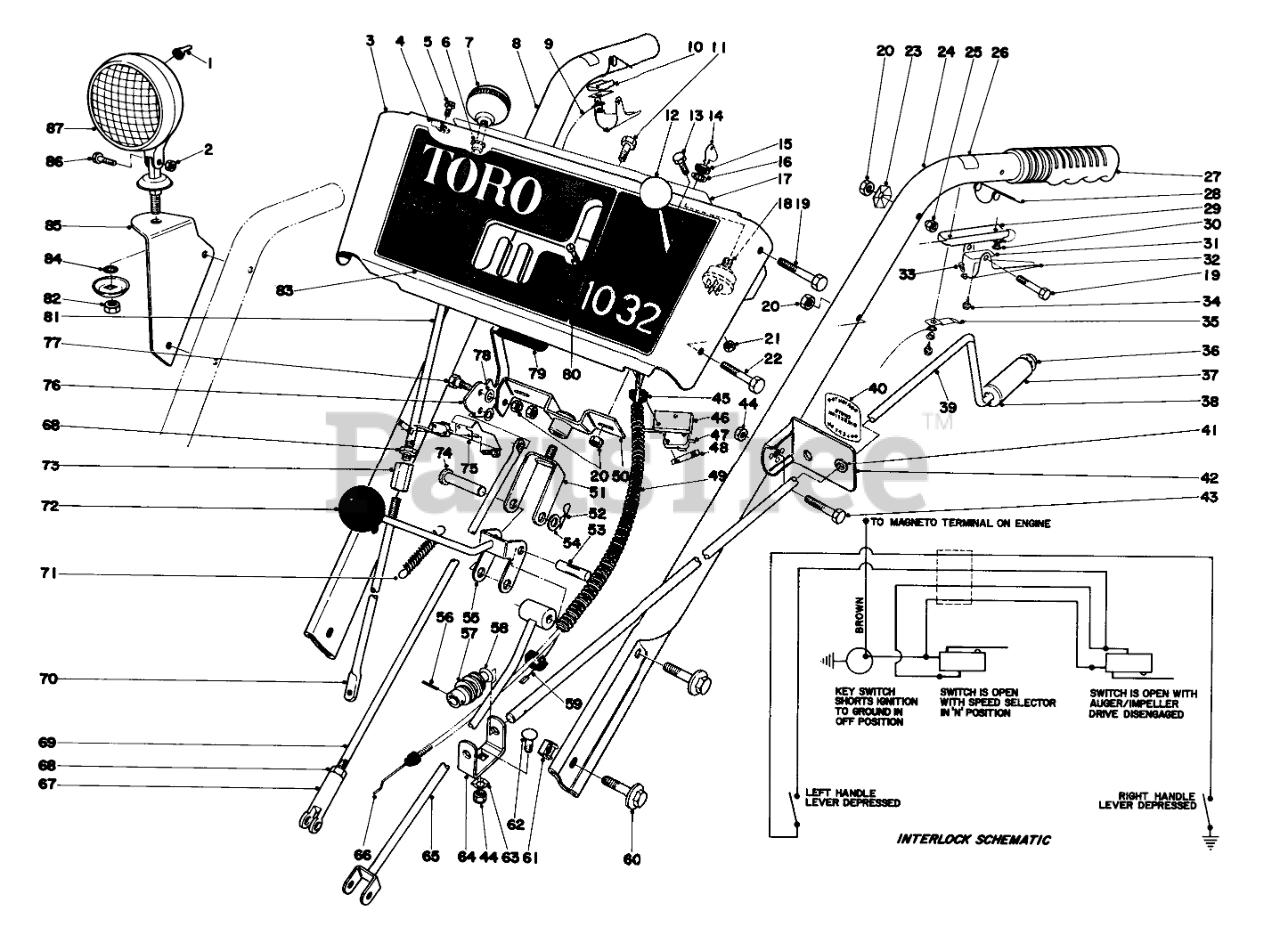

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 218473

Boot-Switch

$

$

Currently unavailable

2

Toro 321534

Nut

$

$

Currently unavailable

3

Toro 6-3629

Escutcheon Plate (Incl. Ref. #17 & 83)
(Superseded to 8-8909)

$

$

Not available

4

Toro 20-2810

PLASTIC CLIP

$

$

Not available

5

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

6

Toro 256-249

Bushing
(Superseded to 5979)

$3.49

$

In Stock, Qty 16

0

7

Toro 233-10

KNOB-LEVER

$61.99

$

Usually ships in 3-6 days

0

8

Toro 22-9340

Handle Right

$

$

Not available

9

Toro 22-9010

Wire Harness Interlock

$

$

Not available

10

Toro 17-5680

Insulator

$

$

Not available

11

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 10

0

12

Toro 233-25

KNOB-CONTROL

$5.49

$

In Stock, only 1 left!

0

13

Toro 32140-99

HEX HEAD SEMS 10-24X1/2

$

$

Not available

14

Toro 218-412

Key
(Superseded to 62-7770)

$4.99

$

In Stock, Qty 12

0

15

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 18

0

16

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 13

0

17

Toro 25-5830

Decal-Escutcheon Back
(Superseded to 29-6330)

$

$

Not available

18

Toro 23-0660

SWITCH-STARTER

$22.99

$

Usually ships in 3-6 days

0

19

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

20

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, only 4 left!

0

21

Toro 32146-18

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

22

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

23

Toro 3290-257

Washer

$

$

Not available

24

Toro 25-6560

Handle Left

$

$

Not available

25

Toro 32111-7

NUT-CAP

$7.99

$

In Stock, only 2 left!

0

26

Toro 25-6490

Decal Safety Interlock
(Superseded to 29-6360)

$

$

Not available

27

Toro 6-0450

Grip Handle
(Superseded to 74-1380)

$

$

Not available

28

Toro 17-5720

INTERLOCK SPRING

$

$

Not available

29

Toro 20-2110

Insulator

$

$

Not available

30

Toro 17-5700

WASHER INSULATOR

$9.49

$

Usually ships in 3-6 days

0

31

Toro 17-5690

INTERLOCK CONTACT

$38.99

$

Usually ships in 3-6 days

0

32

Toro 17-5710

Safety Lever

$

$

Not available

33

Toro 3290-358

1/4 PLASTIC RIVET

$

$

Not available

34

Toro 32104-75

Screw
(Superseded to 32144-34)

$4.99

$

In Stock, Qty 16

0

35

Toro 17-6510

CONTACT BRACKET

$9.49

$

Usually ships in 3-6 days

0

36

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

37

Toro 20-2060

CHUTE CONTROL GRIP

$

$

Not available

38

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

39

Toro 8-8570

ROD CHUTE CONTROL

$

$

Not available

40

Toro 25-3990

Decal Chute Direction
(Superseded to 29-6370)

$

$

Not available

41

Toro 256-249

Bushing
(Superseded to 5979)

$3.49

$

In Stock, Qty 16

0

42

Toro 6-3069

Bracket-Chute Control Mounting (Incl. Ref. #40-41)
(Superseded to 12-7739)

$

$

Not available

43

Toro 322-9

SCREW-HH

$3.49

$

In Stock, Qty 13

0

44

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

45

Toro 241248

Ring

$

$

Currently unavailable

46

Toro 22-7950

SWITCH MTG PAD

$

$

Not available

47

Toro 12-3320

MICRO SWITCH

$71.99

$

In Stock, only 1 left!

0

48

Toro 3290-354

NUT-SPEED

$9.99

$

Usually ships in 3-6 days

0

49

Toro 22-9090

Cover Harness

$

$

Not available

50

Toro 8-7930

SWIVEL BLOCK WA

$

$

Not available

51

Toro 8-7910

Pivot Bracket
(Superseded to 29-6490)

$

$

Not available

52

Toro 3290-322

PIN-HAIR

$1.49

$

Usually ships in 3-6 days

0

53

Toro 3284-2

3/8 X 1-1/4 ROL

$

$

Not available

54

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

55

Toro 20-3050

Rod Shift
(Superseded to 26-9370)

$186.99

$

Usually ships in 3-6 days

0

56

Toro 32121-50

PIN-SPRING

$3.49

$

In Stock, only 3 left!

0

57

Toro 8-8600

GEAR-WORM, CHUTE

$134.99

$

Usually ships in 3-6 days

0

58

Toro 3290-212

WASHER-SPRING

$3.99

$

Usually ships in 3-6 days

0

59

Toro 22-9020

Ignition Wire Harness

$

$

Not available

60

Toro 3234-1

SCREW-HHF

$1.99

$

In Stock, Qty 15

0

61

Toro 3290-370

Retained Nut
(Superseded to 3290-433)

$

$

Not available

62

Toro 3230-15

SCREW-CARR

$1.99

$

In Stock, only 4 left!

0

63

Toro 3290-238

WASHER-LOCK

$3.49

$

Usually ships in 3-6 days

0

64

Toro 11-7110

WORM BRACKET
(Superseded to 117110-01)

$

$

Not available

65

Toro 11-8100

Trunnion

$

$

Not available

66

Toro 8-7790

Throttle Contrl

$

$

Not available

67

Toro 5-0865

Clevis
(Superseded to 39-4640)

$59.99

$

Usually ships in 3-6 days

0

68

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 20+

0

69

Toro 20-2310

DRAG LINK

$

$

Not available

70

Toro 22-7970

LOWER WHL CLUTCH ROD

$55.99

$

Usually ships in 3-6 days

0

71

Toro 8-9900

CONT ROD SPRING 0

$

$

Not available

72

Toro 233-21

KNOB

$13.99

$

In Stock, only 1 left!

0

73

Toro 22-7940

WHL ROD COUPLING

$35.99

$

Usually ships in 3-6 days

0

74

Toro 283-5

PIN-CLEVIS

$12.99

$

Usually ships in 3-6 days

0

75

Toro 22-9300

SWITCH BRKT

$

$

Not available

76

Toro 17-6620

Auger Clutch Handle

$

$

Not available

77

Toro 11-9030

SCREW-SHOULDER

$7.49

$

Usually ships in 3-6 days

0

78

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

79

Toro 11-8970

AUGER CLUTCH HND GRIP

$

$

Not available

80

Toro 3290-313

SCREW-SPH

$7.49

$

Usually ships in 3-6 days

0

81

Toro 22-7980

Rod Wheel Clutch

$

$

Not available

82

Toro 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

83

Toro 25-5820

Decal-Escutcheon
(Superseded to 37-0290)

$

$

Not available

84

Toro 3254-6

WASHER-LOCK, INTERNAL

$0.99

$

In Stock, only 3 left!

0

85

Toro 22-9390

Lamp Mount

$

$

Not available

86

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

87

Toro 22-9380

HEADLAMP ASM

$

$

Not available

Toro 12-8100

Snow Cab
(Superseded to 42-3380)

Note: Optional equipment

$587.99

$

Usually ships in 3-6 days

0

Toro 6-2839

Loose Parts

Note: Not illustrated

$

$

Currently unavailable
