31995 (1032) - Toro 32" Snow Thrower (SN: 006000001 - 006999999) (1976) TRACTION ASSEMBLY Parts Diagram

32" Snow Thrower

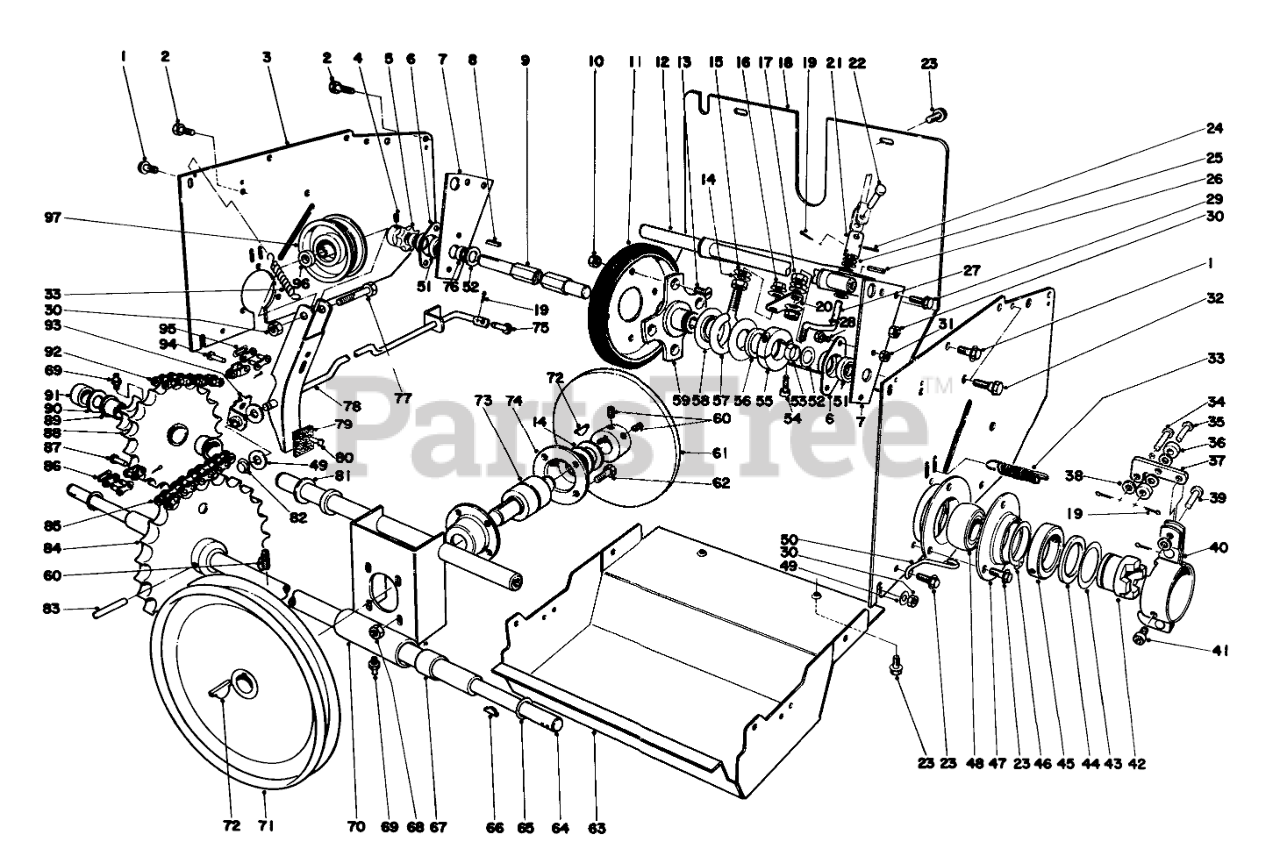

TRACTION ASSEMBLY Parts Diagram

  • Title

1

Toro 3234-1

SCREW-HHF

$1.99

$

In Stock, Qty 15

0

2

Toro 32144-15

SCREW-HHFTF

$9.49

$

Usually ships in 3-6 days

0

3

Toro 22-7990

Side Plate Drive

$

$

Not available

4

Toro 3245-32

SCREW-HSH

$5.49

$

In Stock, only 2 left!

0

5

Toro 5-9820

SPROCKET

$97.99

$

Usually ships in 3-6 days

0

6

Toro 22-8950

BEARING CUP

$

$

Not available

7

Toro 22-9110

Mount Hex Shaft

$

$

Not available

8

Toro 3-6168

KEY

$12.99

$

In Stock, only 2 left!

0

9

Toro 11-8940

FRICTION WHEEL SHAFT

$

$

Not available

10

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

11

Toro 3-5461

Disc
(Superseded to 40-8170)

$74.99

$

In Stock, Qty 5

0

12

Toro 11-8010

Bracket Dead Shaft

$

$

Not available

13

Toro 32108-94

5/16-18X5/8 FLT HD MS

$

$

Not available

14

Toro 3256-45

WASHER-FLAT

$0.99

$

In Stock, Qty 9

0

15

Toro 3290-301

WASHER-SPRING
(Superseded to 121-4605)

$4.49

$

In Stock, only 1 left!

0

16

Toro 32128-12

NUT-LOCK, FLANGE

$1.99

$

Usually ships in 3-6 days

0

17

Toro 32146-12

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

18

Toro 8-7950

REAR COVER R

$120.99

$

Usually ships in 3-6 days

0

19

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 8

0

20

Toro 11-8060

SHIFT ROD PIVOT
(Superseded to 33113-020)

$0.99

$

In Stock, Qty 11

0

21

Toro 11-8070

U JOINT TUBE

$

$

Not available

22

Toro 283-31

CLEVIS PIN

$

$

Not available

23

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 12

0

24

Toro 32121-50

PIN-SPRING

$3.49

$

In Stock, only 3 left!

0

25

Toro 3-6712

Spacer

$

$

Not available

26

Toro 32121-11

PIN-ROLL

$0.99

$

In Stock, only 2 left!

0

27

Toro 11-8090

CONNECTION ROD

$

$

Not available

28

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

29

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 8

0

30

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 20+

0

31

Toro 32146-17

NUT-LOCK
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

32

Toro 11-8140

SHOULDER SCREW

$

$

Not available

33

Toro 10-3890

EXTENSION SPRING

$22.99

$

Usually ships in 3-6 days

0

34

Toro 283-29

PIN-CLEVIS

$2.49

$

Usually ships in 3-6 days

0

35

Toro 283-17

PIN-CLEVIS

$6.49

$

Usually ships in 3-6 days

0

36

Toro 10-3910

CLUTCH ROLLER

$

$

Not available

37

Toro 20-1050

CLUTCH CAM ARM

$15.99

$

Usually ships in 3-6 days

0

38

Toro 3256-21

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

39

Toro 283-16

PIN-CLEVIS

$7.49

$

Usually ships in 3-6 days

0

40

Toro 20-2290

CLUTCH MT BRKT ASM

$

$

Not available

41

Toro 327442

Hex Socket Capscrew

$

$

Currently unavailable

42

Toro 20-2870

Clutch Wheel

$

$

Not available

43

Toro 10-3980

THRUST WASHER

$

$

Not available

44

Toro 256-214

THRUST BEARING

$

$

Not available

45

Toro 10-3860

CLUTCH MOUNT COLLAR

$

$

Not available

46

Toro 32151-35

RING-RETAINING, EXTERNAL

$10.99

$

Usually ships in 3-6 days

0

47

Toro 20-1020

BEARING FLANGE
(Superseded to 57-8050)

$236.99

$

Usually ships in 3-6 days

0

48

Toro 20-1010

BEARING
(Superseded to 57-8280)

$12.99

$

In Stock, only 1 left!

0

49

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 6

0

50

Toro 11-0610

Clutch Retainer
(Superseded to 41-8570)

$

$

Not available

51

Toro 251-260

BEARING

$

$

Not available

52

Toro 5-7570

WASHER-FLAT

$8.49

$

In Stock, only 3 left!

0

53

Toro 11-3180

SPLIT SPACER

$

$

Not available

54

Toro 3274-26

SCREW-HSH

$2.49

$

Usually ships in 3-6 days

0

55

Toro 204610

Collar

$

$

Currently unavailable

56

Toro 252-71

WASHER-THRUST

$19.99

$

In Stock, only 2 left!

0

57

Toro 11-8050

SLIDER RING COLLAR
(Superseded to 78-1790)

$55.99

$

Usually ships in 3-6 days

0

58

Toro 11-8080

SLIDER RING

$

$

Not available

59

Toro 20-3310

TRACTION DISC HUB

$

$

Not available

60

Toro 32424

Set Screw

$

$

Currently unavailable

61

Toro 234970

Friction Plate

$

$

Currently unavailable

62

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

63

Toro 11-7140

LOWER SHIELD R

$

$

Not available

64

Toro 234270

Axle Shaft

$

$

Currently unavailable

65

Toro 3-0737

WASHER

$8.49

$

In Stock, only 3 left!

0

66

Toro 3257-19

1/4X1-1/16 HI-PRO KEY

$

$

Not available

67

Toro 256-232

BUSHING

$15.99

$

Usually ships in 3-6 days

0

68

Toro 32149-1

NUT-KEPS

$5.99

$

In Stock, Qty 11

0

69

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 11

0

70

Toro 6-1669

Bulkhead (Incl. Ref. #67)
(Superseded to 25-5190)

$

$

Not available

71

Toro 5-7410

Pulley

$

$

Not available

72

Toro 3257-23

KEY-WOODRUFF

$7.49

$

In Stock, only 2 left!

0

73

Toro 234950

Friction Plate Shaft

$

$

Currently unavailable

74

Toro 10-0070

HOUSING BEARING

$

$

Not available

75

Toro 283-1

PIN-CLEVIS

$2.49

$

Usually ships in 3-6 days

0

76

Toro 22-9190

SPACER

$

$

Not available

77

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

78

Toro 25-5360

Auger-Idler (Incl. Ref. #79-80)

$

$

Not available

79

Toro 20-3100

BRAKE PAD
(Superseded to 66-8050)

$

$

Not available

80

Toro 3295-23

.185 DIA X .375 RT +

$9.99

$

Usually ships in 3-6 days

0

81

Toro 3-6514

THRUST WASHER

$2.49

$

Usually ships in 3-6 days

0

82

Toro 3290-383

PUSH NUT
(Superseded to 93-3236)

$

$

Not available

83

Toro 3285-18

PIN-GROOVE

$8.99

$

Usually ships in 3-6 days

0

84

Toro 23-7210

Lower Sprocket

$

$

Currently unavailable

85

Toro 23-7260

ROLLER CHAIN

$

$

Not available

86

Toro 2710-11

LINK-CHAIN

$5.99

$

In Stock, only 1 left!

0

87

Toro 2710-15

LINK-OFFSET

$34.99

$

In Stock, only 1 left!

0

88

Toro 23-7230

Sprocket (Incl. Ref. #69 & 89)
(Superseded to 8-8709)

$260.99

$

Usually ships in 3-6 days

0

89

Toro 256-215

3/4ID X 3/4LG BSHG

$

$

Not available

90

Toro 3-8664

WASHER-THRUST

$6.49

$

In Stock, only 2 left!

0

91

Toro 23-7250

SPACER-IDLER

$7.99

$

Usually ships in 3-6 days

0

92

Toro 5-9430

1/4 X 42 CHAIN W/LINK

$134.99

$

Usually ships in 3-6 days

0

93

Toro 20-2940

Bracket-Clutch

$

$

Not available

94

Toro 2710-10

1/4 OFFSET LINK

$

$

Not available

95

Toro 2710-6

LINK-CONNECTING

$19.99

$

Usually ships in 3-6 days

0

96

Toro 20-0010

Spacer

$

$

Not available

97

Toro 3-4244

PULLEY-IDLER

$27.99

$

In Stock, only 3 left!

0
