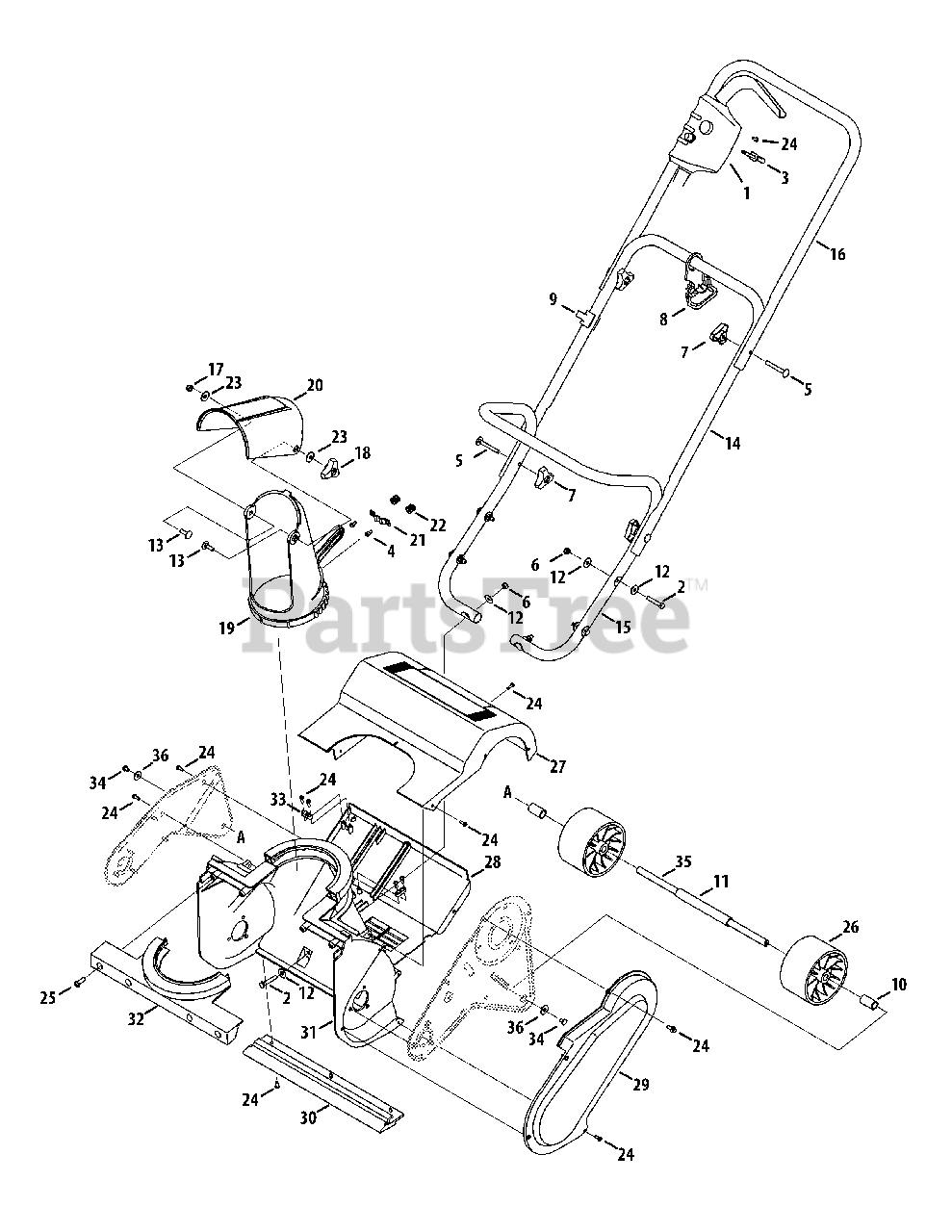

31A-050-706 - MTD Snow Thrower (2013) Frame, Handle & Chute Parts Diagram

Snow Thrower

Frame, Handle & Chute Parts Diagram

  • Title

1

MTD 725-05152

Switch, Assembly

$

$

Not available

2

MTD 710-04197

Screw, M6-1, 35.00

$3.99

$

Usually ships in 3-6 days

0

3

MTD 731-06684B

Key

$3.99

$

Usually ships in 3-6 days

0

4

MTD 738-04507

Screw, Shoulder, 6.12 x 4.00

$3.49

$

Usually ships in 3-6 days

0

5

MTD 710-05122

Screw, Carriage, M6-1,45, Cl 8.8

$3.49

$

Usually ships in 3-6 days

0

6

MTD 912-0691

Nut, Hex Lock, M6-1, Nylon
(Superseded to 712-0691)

$

$

Not available

7

MTD 720-04153

Knob, M6

$5.99

$

In Stock, only 1 left!

0

8

MTD 731-07757

Retainer, Cord

$3.99

$

Usually ships in 3-6 days

0

9

MTD 731-07761

Cable, Guide

$3.99

$

Usually ships in 3-6 days

0

10

MTD 750-05403A

Spacer, 13.0 x 17.0 x 30.0

$

$

Not available

11

MTD 750-05405

Spacer, 13.0 x 17.0 x 134.0

$3.99

$

Usually ships in 3-6 days

0

12

MTD 736-0685

Washer, Flat, 6.4 Id x 18 OD

$3.49

$

In Stock, only 1 left!

0

13

MTD 710-1687

Screw, Carriage, M6-1, 20.00

$3.99

$

In Stock, only 1 left!

0

14

MTD 749-04691-0637

Handle, Mid

$15.99

$

Usually ships in 3-6 days

0

15

MTD 749-04699A

Handle, Lower, Lift Type

$25.99

$

Usually ships in 3-6 days

0

16

MTD 749-04690

Handle, Upper

$31.99

$

Usually ships in 3-6 days

0

17

MTD 912-0691

Nut, Hex Lock, M6-1
(Superseded to 712-0691)

$

$

Not available

18

MTD 720-04153

Knob, M6

$5.99

$

In Stock, only 1 left!

0

19

MTD 731-07627

Chute, Lower, Snow

$17.99

$

Usually ships in 3-6 days

0

20

MTD 731-07628A

Chute, Upper

$6.49

$

Usually ships in 3-6 days

0

21

MTD 790-00466

Bracket, Chute, Ratchet

$3.99

$

Usually ships in 3-6 days

0

22

MTD 732-04874

Spring, Compression

$3.49

$

Usually ships in 3-6 days

0

23

MTD 736-0270

Washer, Bell, .265 x .750 x .062

$3.99

$

In Stock, Qty 13

0

24

MTD 710-05137

Screw, Tap, M4.2 x 1.4 x 13

$3.99

$

Usually ships in 3-6 days

0

25

MTD 710-05148

Screw, Tap, M6.3 x 1.8 x 20

$

$

Not available

26

MTD 731-07636

Wheel, Roller

$10.99

$

Usually ships in 3-6 days

0

27

MTD 731-07629A

Cover, Top

$35.99

$

Usually ships in 3-6 days

0

28

MTD 731-07630A

Cover, Engine, Lower

$14.99

$

Usually ships in 3-6 days

0

29

MTD 731-07634A

Cover, Belt

$

$

Not available

30

MTD 731-07640

Blade, Scraper

$13.99

$

Usually ships in 3-6 days

0

31

MTD 731-07625A

Housing, Auger, Blk

$36.99

$

Usually ships in 3-6 days

0

32

MTD 731-07637

Cover, Front, Blk

$

$

Not available

33

MTD 731-07722

Bracket, Cord, Holder

$3.99

$

Usually ships in 3-6 days

0

34

MTD 710-05132

Screw, Hex Screw, M6 x 8mm

$3.99

$

Usually ships in 3-6 days

0

35

MTD 911-05381

Shaft, Roller, Wheel

$14.99

$

Usually ships in 3-6 days

0

36

MTD 736-0685

Washer, Flat, 6.4 Id x 18 OD

$3.49

$

In Stock, only 1 left!

0
