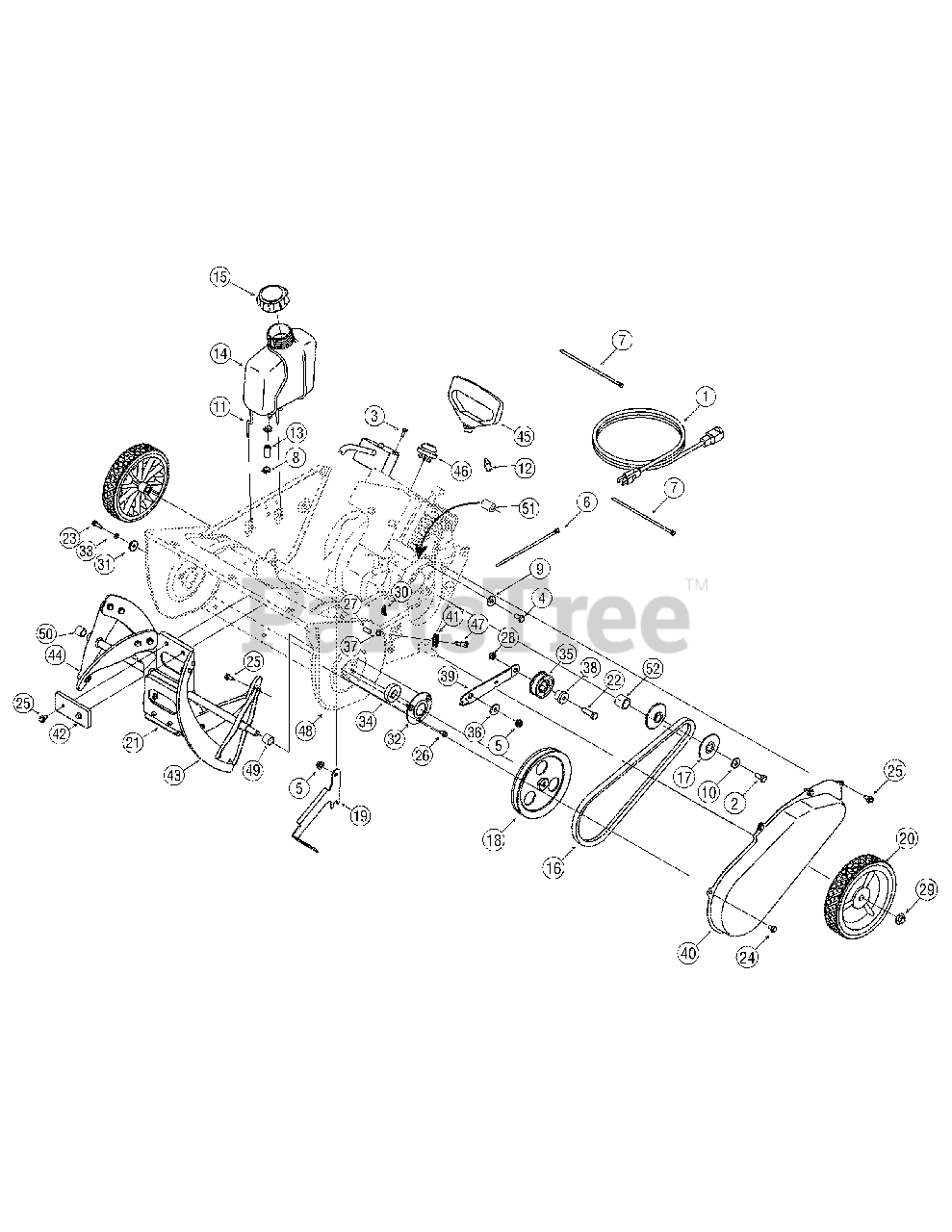

31A-250-800 - Yard Machines Snow Thrower (2007) Drive Assembly Parts Diagram

Snow Thrower

Drive Assembly Parts Diagram

  • Title

1

MTD 629-0236

Cord-Extension 110V3M 2 Prong

$

$

Not available

2

MTD 710-0627

Hex L-Bolt 5/16-24 x .75 Gr. 5

$3.99

$

In Stock, Qty 20+

0

3

MTD 710-1003

Hex Wash B-Tapp Scr #10 x .62" Lg.
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

4

MTD 710-0805

Screw-Hex Cap 5/16-18 x 1.5 Gr. 5
(Superseded to 710-0805A)

Note: 98 cc Tec. only

$3.99

$

In Stock, Qty 8

0

4

MTD 710-3025

Screw-Hex Cap 5/16-18 x .625 Gr. 5

Note: 139 cc Tec. Only

$3.99

$

In Stock, Qty 9

0

5

MTD 712-04063

Flange Locknut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

6

MTD 725-0157

Cable Tie

$3.49

$

In Stock, only 4 left!

0

7

MTD 726-0154

Push Mount Tie
(Superseded to 926-0154)

$5.99

$

Usually ships in 3-6 days

0

8

MTD 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

9

MTD 736-0119

Lockwasher 5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

10

MTD 736-0242

Cupped Washer .340 ID x .872 OD x .06

$3.99

$

In Stock, Qty 20+

0

11

MTD 747-04150

Gas Tank Support Wire

$

$

Not available

12

MTD 7511825510

Choke Lever Knob
(Superseded to TC-35511)

$1.99

$

Usually ships in 3-12 days

0

13

MTD 751-0535

Fuel Line

$

$

Currently unavailable

14

MTD 751-10023

Fuel Tank 2 Quart
(Superseded to 951-10023)

$

$

Not available

15

MTD 751-10487

Cap-Fuel
(Superseded to 751-10487C)

$15.99

$

In Stock, only 1 left!

0

16

MTD 754-0367

V-Belt
(Superseded to 954-0367)

Note: 98 cc Tec. only

$29.99

$

In Stock, Qty 20+

0

16

MTD 754-0101A

V-Belt 1/2 x 35.0" Lg.
(Superseded to 954-0101A)

Note: 139 cc Tec. Only

$28.99

$

In Stock, Qty 20+

0

17

MTD 756-0416B

Pulley Half .625 ID x 2.25 OD
(Superseded to 956-0416B)

$10.99

$

In Stock, only 2 left!

0

18

MTD 756-04243

Pulley

Note: 98 cc Tec. only

$

$

Not available

18

MTD 756-04232

V-Pulley 1/2 x 6,0" OD

Note: 139 cc Tec. Only

$56.99

$

In Stock, only 1 left!

0

19

MTD 790-00225

2-cycle Mounting Bracket
(Superseded to 790-00225-0637)

Variations

MTD 790-00225-0637

BRACKET:ENGINE 2 - POWDER BLACK (0637)

$

$

Not available

$

$

20

MTD 734-04070

Wheel, 7 x 1.50 dia. Lug

$16.99

$

Usually ships in 3-6 days

0

21

MTD 684-04253

Auger Assembly
(Superseded to 984-04253-0637)

Variations

MTD 684-04253-0637

Auger Assembly, 21" Black - POWDER BLACK (0637)

$152.99

$

In Stock, only 1 left!

0

$152.99

$

In Stock, only 1 left!

0

22

MTD 710-0106

Hex Screw 1/4-20 x 1.25 Gr. 5

$3.99

$

In Stock, only 1 left!

0

23

MTD 710-0642

Thd Forming Scr. 1/4-20 x .75 Lg.

$4.49

$

In Stock, Qty 20+

0

24

MTD 710-0653

Hex Wash HD Tapp Scr 1/4-20 x .375

$4.49

$

In Stock, Qty 16

0

25

MTD 710-0896

Hex B-Tap Scr 1/4-28 x .25" Lg

$3.99

$

In Stock, Qty 20+

0

26

MTD 710-1005

Hex Tap Scr. 1/4-14 x .5" Lg.
(Superseded to 710-0599)

$3.99

$

In Stock, Qty 20+

0

27

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg. Gr. 5

$3.99

$

In Stock, Qty 20+

0

28

MTD 712-04064

Flange Locknut 1/4-20 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

29

MTD 726-0299

Push Cap x 1/2" Rod

$7.49

$

In Stock, Qty 20+

0

30

MTD 732-0357A

Extension Spring .33 OD x 1.12 Lg.

$3.99

$

In Stock, Qty 5

0

31

MTD 736-0176

Flat Washer .25 ID x .93 OD x .125

$3.99

$

In Stock, Qty 20+

0

32

MTD 790-00249

Bearing Cup
(Superseded to 790-00249-0637)

Variations

MTD 790-00249-0637

Bearing Cup, Single - POWDER BLACK (0637)

$17.99

$

Usually ships in 3-6 days

0

$17.99

$

Usually ships in 3-6 days

0

33

MTD 736-0329

L-Wash 1/4 ID
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

34

MTD 741-04188A

Ball Bearing .625 x 37 x 12.63

$11.99

$

In Stock, only 2 left!

0

35

MTD 684-04168

Idler Pulley (1/4" hole)

$36.99

$

In Stock, Qty 5

0

36

MTD 748-0234

Shoulder Spacer .25 Thk.

$4.49

$

In Stock, Qty 10

0

37

MTD 712-0896

Hex Ins Jam L-Nut 1/4-28

$4.49

$

In Stock, Qty 6

0

38

MTD 750-04571

Shoulder Spacer

$6.49

$

In Stock, Qty 6

0

39

MTD 790-00238A

Idler Bracket
(Superseded to 790-00238A-0637)

Variations

MTD 790-00238A-0637

Idler Bracket with Brake - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0

40

MTD 790-00045A

Belt Cover
(Superseded to 790-00045C)

Variations

MTD 790-00045A-0637

Belt Cover, Black - POWDER BLACK (0637)

$53.99

$

In Stock, only 1 left!

0

MTD 790-00045A-0638

Belt Cover, Red - MTD/TROY-BILT RED (0638)

$53.99

$

In Stock, only 1 left!

0

MTD 790-00045A-0691

COVER-BELT SINGLE - BLACK JACK (0691)

$

$

Not available

MTD 790-00045A-0662

COVER-BELT SINGLE - OYSTER GRAY (0662)

$

$

Not available

MTD 790-00045A-0665

COVER-BELT SINGLE - YARDMAN GREEN (0665)

$

$

Not available

MTD 790-00045A-0684

COVER-BELT SINGLE - ZINC YELLOW (0684)

$

$

Not available

MTD 790-00045A-0709

COVER-BELT SINGLE - MASTERCRAFT GREEN (0709)

$

$

Not available

$43.99

$

Usually ships in 3-6 days

0

41

MTD 756-0625

Cable Guide Roller

$8.99

$

In Stock, Qty 20+

0

42

MTD 735-04033

Rubber Paddle

$7.99

$

In Stock, Qty 20+

0

43

MTD 735-04032

Rubber Spiral-Crescent

$17.99

$

In Stock, Qty 20+

0

44

MTD 684-04252

Auger Ass’y 21" w/Solid Shaft (w/o rubber paddels)
(Superseded to 684-04252-0637)

Variations

MTD 684-04252-0637

Auger Assembly, Single Stage - POWDER BLACK (0637)

$171.99

$

In Stock, only 1 left!

0

$171.99

$

In Stock, only 1 left!

0

45

MTD 7510009636

Recoil Handle,Mitten

$

$

Not available

46

MTD 7512B1476

Primer
(Superseded to TC-570682A)

$10.99

$

In Stock, Qty 6

0

47

MTD 738-0924A

Hex Shld.Scr.1/4-28 x .375

$6.49

$

In Stock, Qty 6

0

48

MTD 684-04227

Auger Assembly Housing

Variations

MTD 684-04227-0691

HOUSING ASM:AUGER: - BLACK JACK (0691)

$150.99

$

In Stock, only 1 left!

0

MTD 684-04227-0667

HOUSING ASM:AUGER: - MIDNIGHT BLUE (0667)

$121.99

$

In Stock, only 1 left!

0

MTD 684-04227-0721

HOUSING ASM:AUGER: - SEARS RED (0721)

$150.99

$

Usually ships in 3-6 days

0

MTD 684-04227-4044

HOUSING ASM:AUGER: - CRAFTSMAN RED (4044)

$150.99

$

Usually ships in 3-6 days

0

MTD 684-04227-0606

HOUSING ASM:AUGER: - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 684-04227-0638

HOUSING ASM:AUGER: - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-04227-0665

HOUSING ASM:AUGER: - YARDMAN GREEN (0665)

$

$

Not available

MTD 684-04227-0684

HOUSING ASM:AUGER: - ZINC YELLOW (0684)

$

$

Not available

MTD 684-04227-0709

HOUSING ASM:AUGER: - MASTERCRAFT GREEN (0709)

$

$

Not available

$130.99

$

Usually ships in 3-6 days

0

49

MTD 750-04757

Auger Spacer LH

Note: 98 cc Tec. only

$7.99

$

Usually ships in 3-6 days

0

50

MTD 750-04758

Auger Spacer RH

Note: 98 cc Tec. only

$5.99

$

In Stock, Qty 9

0

51

MTD 750-0589

Spacer .325 ID x .625 OD x .88
(Superseded to 950-0589)

Note: 98 cc Tec. only

$5.99

$

Usually ships in 3-6 days

0

52

MTD 750-0716A

Spacer .630 x .88 x .747

Note: 98 cc Tec. only

$

$

Not available
