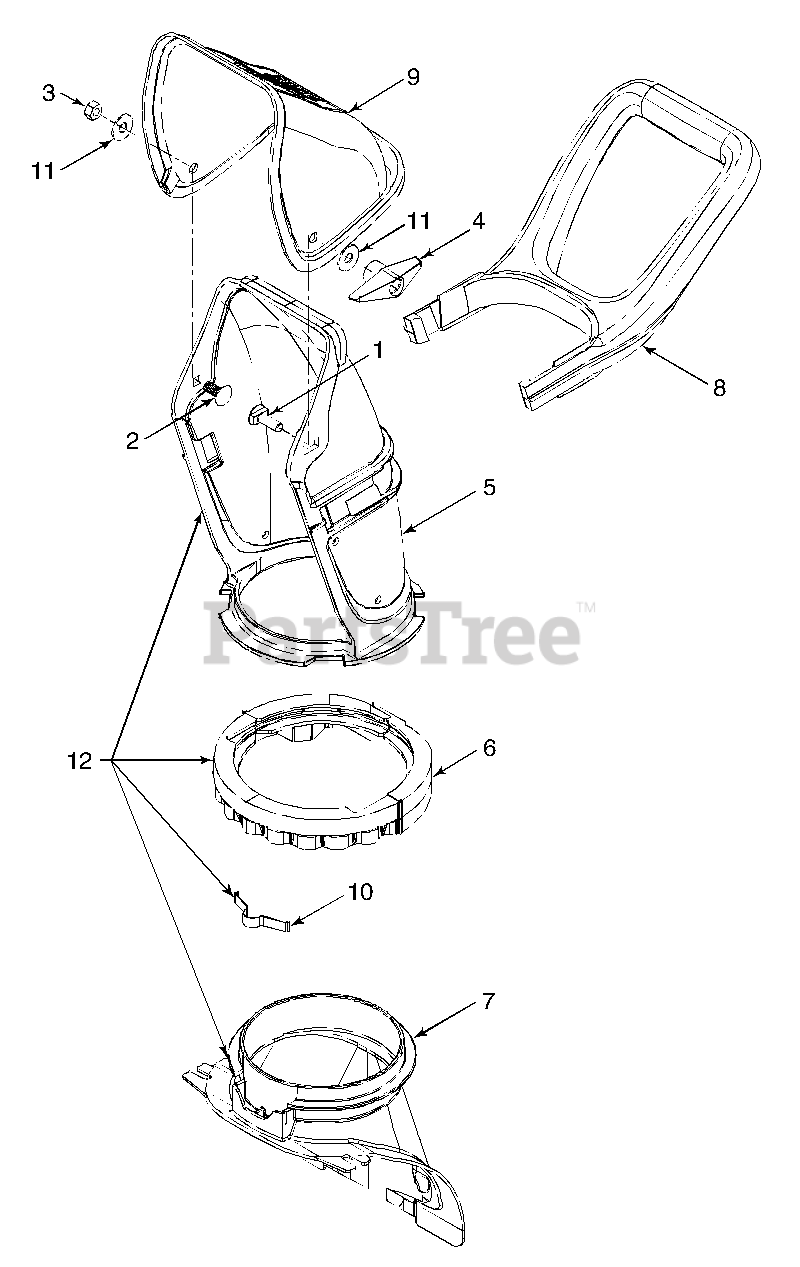

31A-2B5-801 - Yard-Man Snow Thrower (2005) Chute Parts Diagram

Snow Thrower

Chute Parts Diagram

  • Title

1

MTD 710-04071

Carriage Screw 5/16-18 x 1.0

$4.49

$

In Stock, Qty 16

0

2

MTD 710-0451

Carriage Bolt 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

3

MTD 712-3068

Hex Patch l-Nut 5/16-18
(Superseded to 912-3009)

$

$

Not available

4

MTD 720-0284

Handle Knob Assembly

$6.99

$

In Stock, Qty 20+

0

5

MTD 731-04127

Lower Chute 5" Dia
(Superseded to 931-04127)

$33.99

$

Usually ships in 3-6 days

0

6

MTD 731-04353

Ring-Lower Chute
(Superseded to 931-04353)

$18.99

$

In Stock, only 1 left!

0

7

MTD 731-04373

Chute Adapter, 5" Dia.
(Superseded to 931-04373)

$18.99

$

Usually ships in 3-6 days

0

8

MTD 731-04388

Handle-Chute 5" Dia.
(Superseded to 731-04388A)

$26.99

$

Usually ships in 3-6 days

0

9

MTD 731-04429

Upper Chute w/Export Label
(Superseded to 731-04354B)

$15.99

$

Usually ships in 3-6 days

0

10

MTD 732-04111

Chute Adjustment Spring
(Superseded to 932-04111)

$4.99

$

In Stock, only 2 left!

0

11

MTD 736-0159

Flat Washer .349 ID x .879 OD x .063

$4.49

$

In Stock, Qty 20+

0

12

MTD 684-04049

Lower Chute Ass'y
(Superseded to 984-04049)

Note: (Incl. #5-7 and 10)

$

$

Not available
