31A-2B5-801 - Yard-Man Snow Thrower (2005) General Assembly Parts Diagram

Snow Thrower

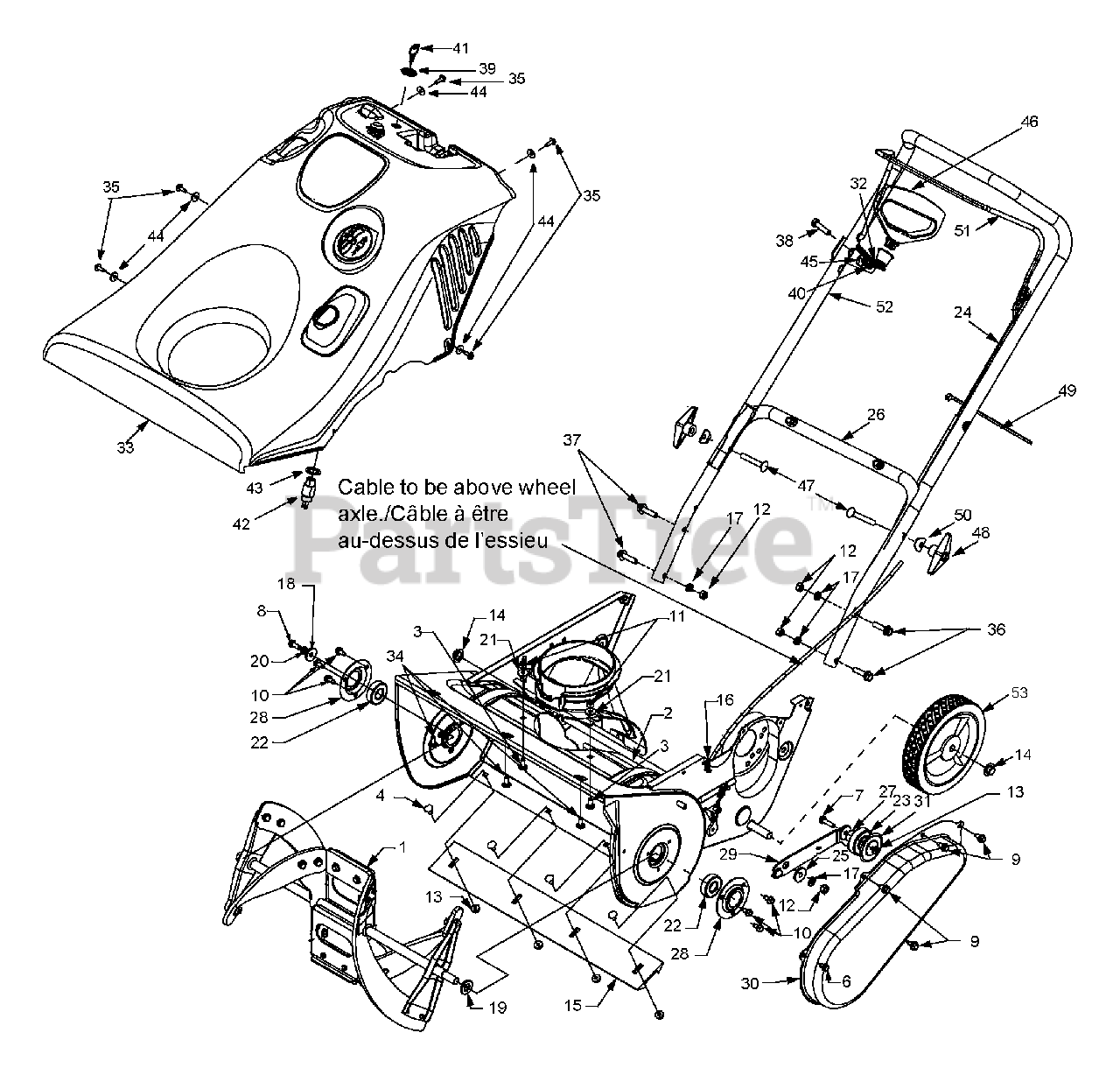

General Assembly Parts Diagram

  • Title

1

MTD 684-04027

Auger Ass'y 21" comp. w/Solid Shaft
(Superseded to 984-04027A)

$196.99

$

In Stock, Qty 11

0

2

MTD 684-04028

Auger Housing Ass'y 21"

Variations

MTD 684-04028-0638

KIT:SERVICE:FRAME: - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-04028-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 684-04028-0665

HOUSING ASM-AUGER 21" - YARDMAN GREEN (0665)

$

$

Not available

MTD 684-04028-0684

HOUSING ASM-AUGER 21" - ZINC YELLOW (0684)

$

$

Not available

MTD 684-04028-0691

HOUSING ASM-AUGER 21" - BLACK JACK (0691)

$

$

Not available

MTD 684-04028-0709

HOUSING ASM-AUGER 21" - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

3

MTD 710-0134

Carriage Bolt 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-0167

Carriage Bolt 1/4-20 x .50" LG
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

5

MTD 710-0323

Truss Mach Scr 5/16-18 x .75

$4.99

$

In Stock, only 2 left!

0

6

MTD 710-0352

Hex "B" Tap Scr. 1/4 DIA x .38" Lg

$4.99

$

Usually ships in 3-6 days

0

7

MTD 710-0597

Hex Screw 1/4-20 x 1.00

$3.99

$

In Stock, Qty 18

0

8

MTD 710-0642

Thd Forming Scr. 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0896

Hex B-Tap Scr 1/4-28 x .25" Lg

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-1005

Hex Tap Scr. 1/4-20 x .50" LG.
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

11

MTD 712-0324

Hex Ins. Locknut 1/4-20

$3.99

$

In Stock, Qty 20+

0

12

MTD 712-3010

Hex Nut 5/16-18 hd. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

13

MTD 712-3027

Hex L-Flanged Nut
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

14

MTD 726-0299

Push Cap x 1/2" Rod

$8.49

$

In Stock, Qty 20+

0

15

MTD 731-1033

Shave Plate

$47.99

$

In Stock, Qty 18

0

16

MTD 732-0357A

Extension Spring .33 OD x 1.12 Lg.

$4.49

$

In Stock, Qty 5

0

17

MTD 736-0119

L-Wash 5/16 ID
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

18

MTD 736-0176

Flat Washer .25 ID x .93 OD x .125

$4.99

$

In Stock, Qty 20+

0

19

MTD 736-0326

Flat Washer .50 ID x 1.00 OD x .125

$4.49

$

In Stock, Qty 18

0

20

MTD 736-0329

L-Wash 1/4 ID
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

21

MTD 736-3090

Flat Washer .260 x .687 x .062

$6.99

$

Usually ships in 3-6 days

0

22

MTD 741-0600

Ball Bearing 17 x 40 x 12
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

23

MTD 741-0919

Ball Bearing .787 ID x 1.85 OD x .56
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

24

MTD 746-04091

Clutch Cable
(Superseded to 946-04091)

$28.99

$

In Stock, Qty 14

0

25

MTD 748-0234

Shoulder Spacer .25 THK

$4.49

$

In Stock, Qty 10

0

26

MTD 749-04114

Lower Handle
(Superseded to 749-04114B)

Variations

MTD 749-04114-0637

HANDLE-LOWER SNOW - POWDER BLACK (0637)

$39.99

$

Usually ships in 3-6 days

0

MTD 749-04114-0638

HANDLE-LOWER SNOW - MTD/TROY-BILT RED (0638)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

27

MTD 750-04230

Flg. Spacer .777 OD x .260 ID x .550
(Superseded to 750-04230A)

$5.49

$

In Stock, only 1 left!

0

28

MTD 784-5174

Bearing Cup
(Superseded to 784-5174-0637)

Variations

MTD 784-5174-0637

Bearing Cup - POWDER BLACK (0637)

$

$

Not available

$

$

29

MTD 790-00039

Idler Bracket w/Brake

Variations

MTD 790-00039-0637

No Longer Available BRACKET-ID - POWDER BLACK (0637)

$

$

Not available

$

$

30

MTD 790-00045

Belt Cover
(Superseded to 790-00045C)

Variations

MTD 790-00045-0638

Belt Cover, Red - MTD/TROY-BILT RED (0638)

$57.99

$

In Stock, only 1 left!

0

MTD 790-00045-0691

COVER-BELT SINGLE - BLACK JACK (0691)

$

$

Not available

MTD 790-00045-0662

COVER-BELT SINGLE - OYSTER GRAY (0662)

$

$

Not available

MTD 790-00045-0665

COVER-BELT SINGLE - YARDMAN GREEN (0665)

$

$

Not available

MTD 790-00045-0709

COVER-BELT SINGLE - MASTERCRAFT GREEN (0709)

$

$

Not available

$46.99

$

Usually ships in 3-6 days

0

31

MTD 790-00062

Bearing Washer 2.12 OD x .255 ID
(Superseded to 990-00062)

$8.49

$

Usually ships in 3-6 days

0

32

MTD 684-0178

Mitten Grip Bracket Ass'y
(Superseded to 984-0178)

$

$

Not available

33

MTD 684-04031

Shroud 7HP Yellow, Elec. Start, w/o Crk
(Superseded to 984-04031)

$

$

Not available

33

MTD 684-04032

Shroud 5HP Yellow, Elec. Start, w/o Crk
(Superseded to 984-04029)

$

$

Not available

34

MTD 710-0895

Hex Tapp Scr 1/4 x .75" Lg.

$6.49

$

In Stock, Qty 20+

0

35

MTD 710-1003

Hex Wash B-Tapp Scr #10 x .62" Lg.
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

36

MTD 710-1090

Hex Scr. .312-18 x 1.250

$3.99

$

Usually ships in 3-6 days

0

37

MTD 710-1882

Hex Scr. 5/16-18 x 1.50 Gr. 5

$4.49

$

Usually ships in 3-6 days

0

38

MTD 710-3083

Hex Scr. 5/16-18 x 1.375 Gr. 5

$4.49

$

Usually ships in 3-6 days

0

39

MTD 712-0252

Hex Nut 5/8-32 x .12 Special

$5.99

$

Usually ships in 3-6 days

0

40

MTD 712-0429

Hex Ins. L-Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

41

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, Qty 11

0

42

MTD 725-2018

Key Switch-Electric Start
(Superseded to 925-2018)

$

$

Not available

43

MTD 736-0225

L-Washer Internal

$4.49

$

In Stock, Qty 11

0

44

MTD 736-0400

Flat Washer .218" ID x .62" OD

$5.49

$

In Stock, Qty 16

0

45

MTD 736-0451

Saddle Wash. .320 ID x .937 OD

$4.49

$

In Stock, only 2 left!

0

46

MTD 7519636

Recoil Handle, Mitten
(Superseded to 7510009636)

$

$

Not available

47

MTD 710-0487

Carriage Bolt 5/16-18 x 2.0

$7.49

$

Usually ships in 3-6 days

0

48

MTD 720-0284

Handle Knob Assembly

$6.99

$

In Stock, Qty 20+

0

49

MTD 710-0157

Hex Screw 5/16-24 x .75

$4.49

$

In Stock, Qty 14

0

50

MTD 710-0451

Carriage Bolt 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

51

MTD 747-04159

Bail-Gull Wing
(Superseded to 747-04159A-0637)

Variations

MTD 747-04159-0637

Gull Wing Auger Bail - POWDER BLACK (0637)

$36.99

$

In Stock, only 1 left!

0

MTD 747-04159-0638

Gull Wing Auger Bail - MTD/TROY-BILT RED (0638)

$36.99

$

In Stock, only 1 left!

0

$36.99

$

In Stock, only 1 left!

0

52

MTD 749-04106

Upper Handle-Gull Wing
(Superseded to 749-04106A)

Variations

MTD 749-04106-0637

Upper Handle - POWDER BLACK (0637)

$51.99

$

Usually ships in 3-6 days

0

MTD 749-04106-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$51.99

$

Usually ships in 3-6 days

0

$44.99

$

Usually ships in 3-6 days

0

53

MTD 734-04062

Wheel-Star, 7.5 x 1.5 Yellow
(Superseded to 734-04062A)

$23.99

$

Usually ships in 3-6 days

0
