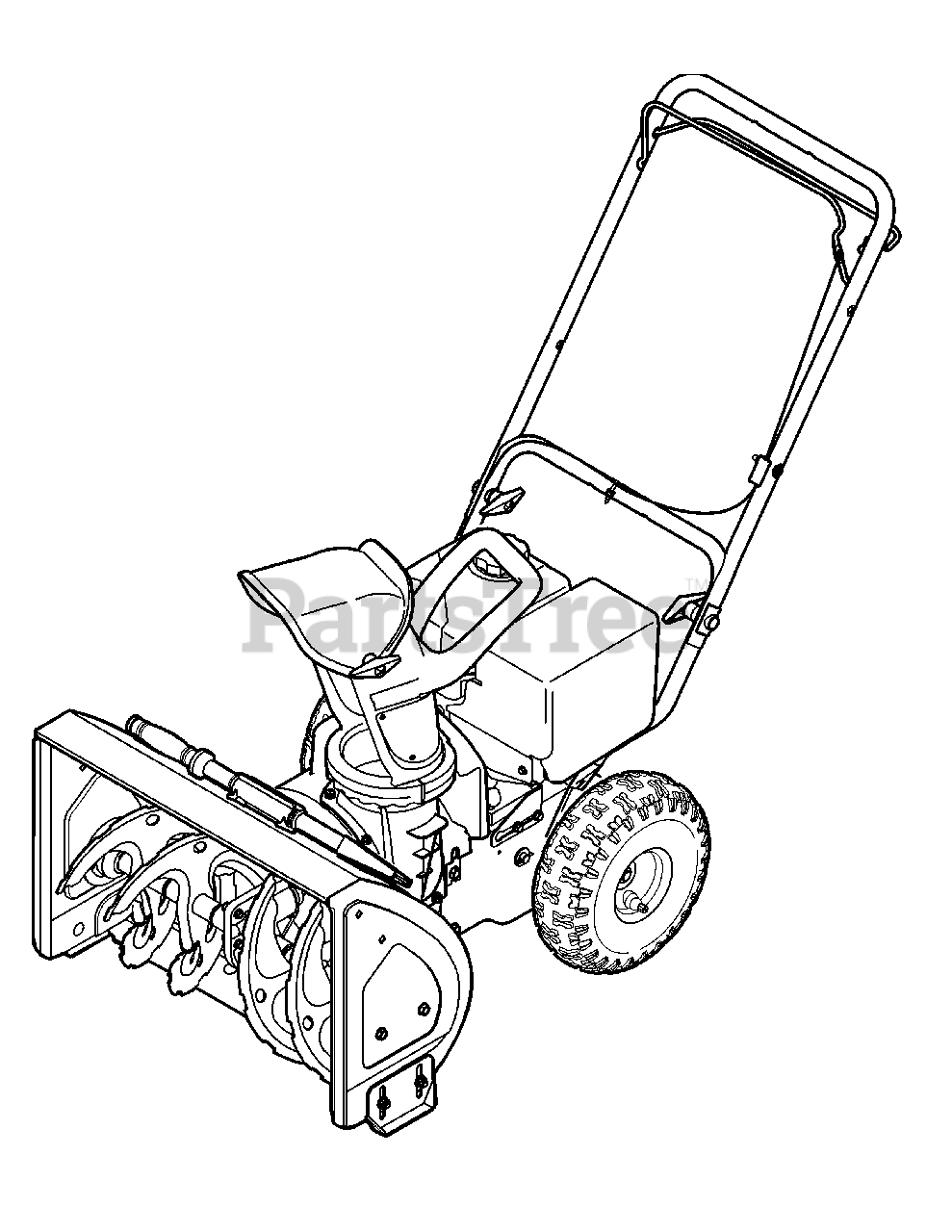

31A-32AD706 - MTD Snow Thrower (2011) .Quick Reference Parts Diagram

Snow Thrower

.Quick Reference Parts Diagram

  • Title

MTD 951-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

MTD 951-10630

Key

$6.49

$

In Stock, Qty 18

0

MTD 929-0071A

Extension Cord
(Superseded to 929-0071B)

Note: (Optional Equipment, if equipped)

$22.99

$

Usually ships in 3-6 days

0

MTD 931-2643

Snow Removal Tool

$18.99

$

In Stock, Qty 7

0

MTD 946-04642A

Drive Cable

$38.99

$

In Stock, Qty 7

0

MTD 946-04640

Auger Cable

$31.99

$

In Stock, only 1 left!

0

MTD 684-04113A-0637

Auger Assembly - LH

$80.99

$

Usually ships in 3-6 days

0

MTD 684-04114A-0637

Auger Assembly - RH

$80.99

$

Usually ships in 3-6 days

0

MTD 731-04218B

Impeller Assembly

$76.99

$

In Stock, only 2 left!

0

MTD 790-00119-0637

Shave Plate

$37.99

$

In Stock, Qty 5

0

MTD 784-5580-0637

Skid Shoe, Standard

Note: Can be replaced with 731-06439 Skid Shoe

$22.99

$

In Stock, Qty 20+

0

MTD 731-06439

Skid Shoe, Polymer Standard Reversible

$20.99

$

In Stock, only 2 left!

0

MTD 753-06206

Standard Polymer Reversible Shoe Kit

Note: (Will replace 731-06439, includes hardware & 2 shoes)

$52.99

$

In Stock, Qty 9

0

MTD 738-04124A

Shear Pin

$1.99

$

In Stock, Qty 20+

0

MTD 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

MTD 954-04013

Auger Drive Belt

$18.99

$

In Stock, Qty 16

0

MTD 954-05110

Wheel Drive Belt

$28.99

$

In Stock, Qty 20+

0

MTD 934-04282B

Wheel

$54.99

$

In Stock, Qty 20+

0
