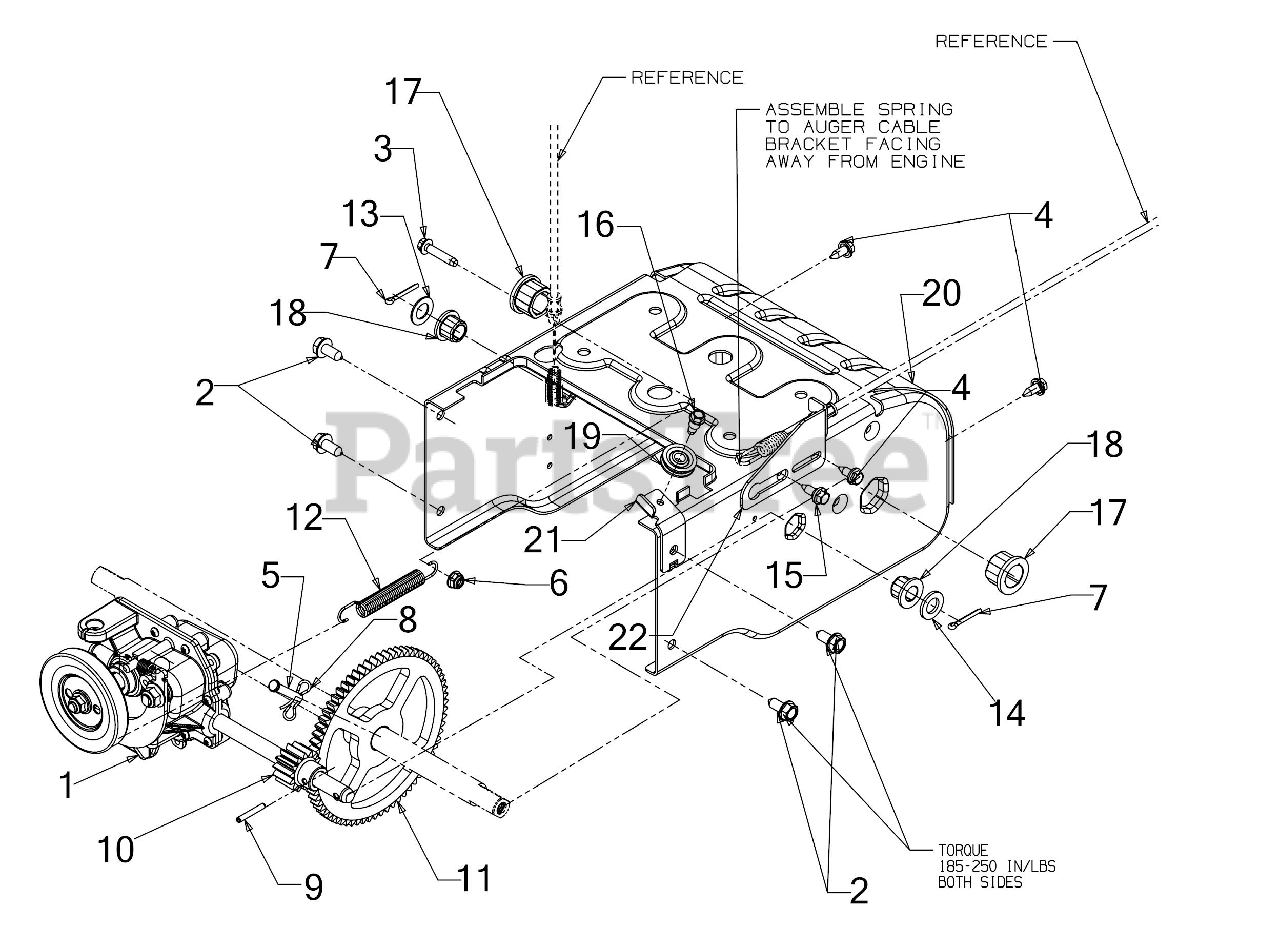

31A-3AAD765 - Bolens Snow Thrower (2016) Frame Parts Diagram

Snow Thrower

Frame Parts Diagram

  • Title

1

MTD 918-04296B

SNOW TRANSMISSION ASSEMBLY

Note: (See Separate Breakdown)

$266.99

$

In Stock, Qty 6

0

2

MTD 710-04484

SCREW 5/16-18 x .750

$3.49

$

In Stock, Qty 20+

0

3

MTD 710-0809

SCREW 1/4-20 x 1.25

$6.49

$

In Stock, Qty 20+

0

4

MTD 710-1652

SCREW 1/4-20X.625

$3.99

$

In Stock, Qty 20+

0

5

MTD 711-1364

PIN

$7.99

$

In Stock, only 2 left!

0

6

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

7

MTD 914-0115

COTTER PIN-1/8 D
(Superseded to 714-0115)

$3.49

$

In Stock, Qty 20+

0

8

MTD 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

9

MTD 915-0249

SPRING PIN ROLL

$6.49

$

In Stock, only 4 left!

0

10

MTD 717-04066A

PINION:14T

$22.99

$

Usually ships in 3-6 days

0

11

MTD 917-04073A

GEAR 70T

$56.99

$

Usually ships in 3-6 days

0

12

MTD 932-0429A

EXTENSION SPRING

$8.49

$

In Stock, Qty 20+

0

13

MTD 936-0160

FLAT WASHER

$3.99

$

In Stock, Qty 17

0

14

MTD 936-0192

FLAT WASHER .535 x .930 x .090

$3.99

$

In Stock, Qty 18

0

15

MTD 738-04184A

SHOULDER SCREW

$6.49

$

In Stock, Qty 20+

0

16

MTD 738-04425

SHOULDER SCREW

$3.99

$

In Stock, Qty 20+

0

17

MTD 941-0245

FLANGE BEARING

$9.49

$

In Stock, Qty 20+

0

18

MTD 741-04108

HEX FLANGE BEARING .506ID x .590LG

$5.99

$

In Stock, only 2 left!

0

19

MTD 756-0625

CABLE GUIDE ROLLER

$8.99

$

In Stock, Qty 20+

0

20

MTD 784-0419C-0709

WHEEL FRAME HOUSING
(Superseded to 784-0419C)

$72.99

$

Usually ships in 3-6 days

0

21

MTD 790-00223A-0637

CABLE GUIDE BRACKET

$

$

Not available

22

MTD 790-00224

ADJUSTMENT CABLE BRACKET

Variations

MTD 790-00224-0637

BRACKET:ADJ CABLE - POWDER BLACK (0637)

$7.99

$

Usually ships in 3-6 days

0

$7.99

$

Usually ships in 3-6 days

0
