31A-3AAD765 - Bolens Snow Thrower (2017) Handle Parts Diagram

Snow Thrower

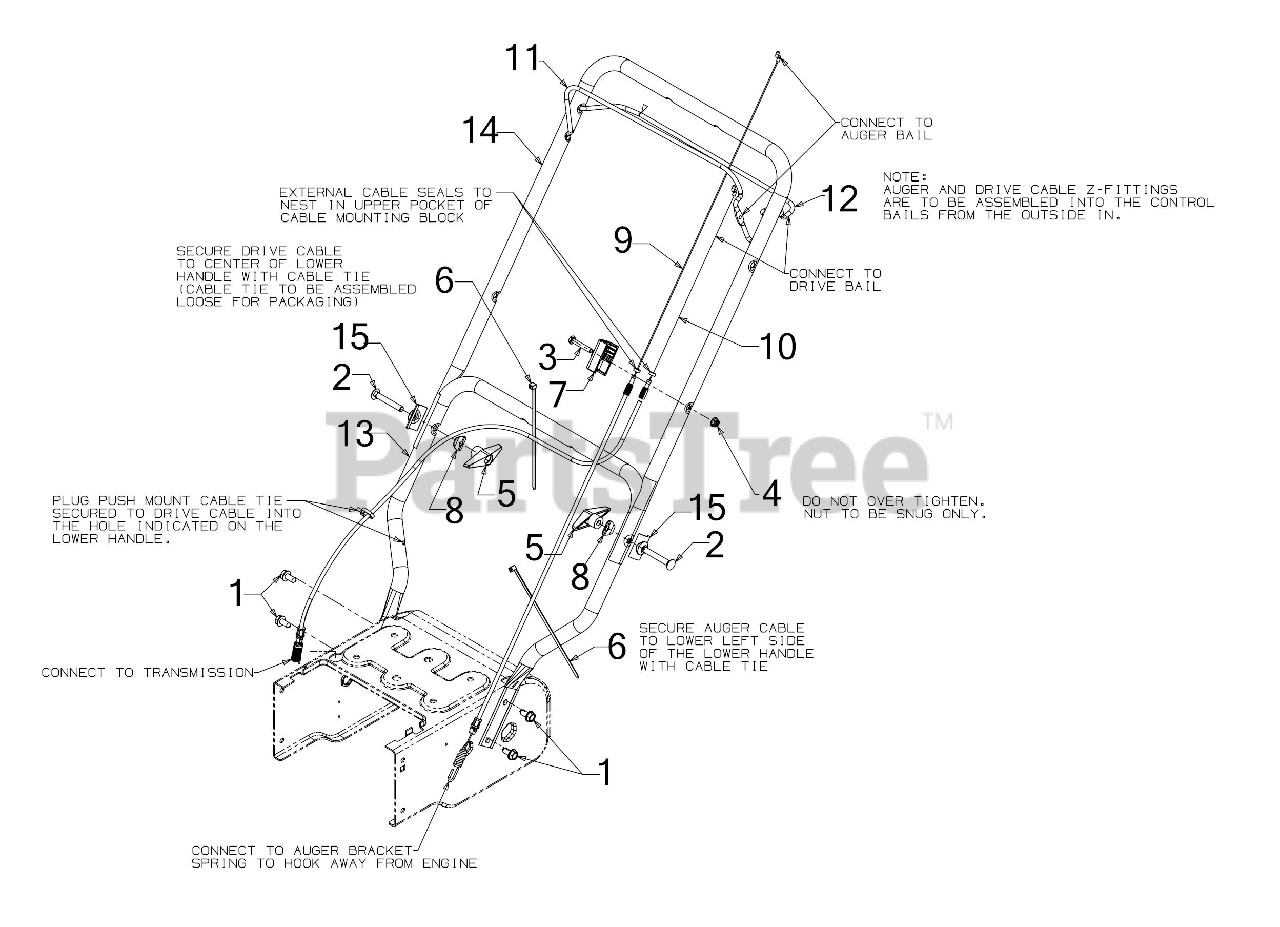

Handle Parts Diagram

  • Title

1

MTD 710-04484

SCREW 5/16-18 x .750

$3.49

$

In Stock, Qty 20+

0

2

MTD 710-0572

SCRE W5/16-18 x 2.25 GR5

$3.99

$

In Stock, Qty 5

0

3

MTD 710-0606

SCREW 1/4-20 x 1.50 GR.5

$4.99

$

In Stock, Qty 15

0

4

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

5

MTD 920-0284

WING NUT KNOB
(Superseded to 720-0284)

$6.49

$

In Stock, Qty 20+

0

6

MTD 725-0157

7" CABLE TIE

$3.49

$

In Stock, only 4 left!

0

7

MTD 731-06749

CABLE MOUNT

$4.99

$

In Stock, Qty 15

0

8

MTD 936-0451

SADDLE WASHER
(Superseded to 736-0451)

$3.99

$

In Stock, Qty 20+

0

9

MTD 946-04640

AUGER CLUTCH CABLE

$31.99

$

In Stock, only 1 left!

0

10

MTD 946-04642A

TRANSMISSION CLUTCH CABLE

$38.99

$

In Stock, Qty 7

0

11

MTD 747-1161A-0637

BAIL

$12.99

$

In Stock, Qty 20+

0

12

MTD 747-1214

DRIVE BAIL

$21.99

$

In Stock, Qty 10

0

13

MTD 749-04147B

LOWER HANDLE

$57.99

$

Usually ships in 3-6 days

0

14

MTD 749-04459-0637

UPPER HANDLE

$36.99

$

Usually ships in 3-6 days

0

15

MTD 990-00053

HANDLE TAB

$6.99

$

Usually ships in 3-6 days

0
