31A-611D372 - Yard Machines Snow Thrower (1998) (Hechinger) General Assembly Parts Diagram

Snow Thrower

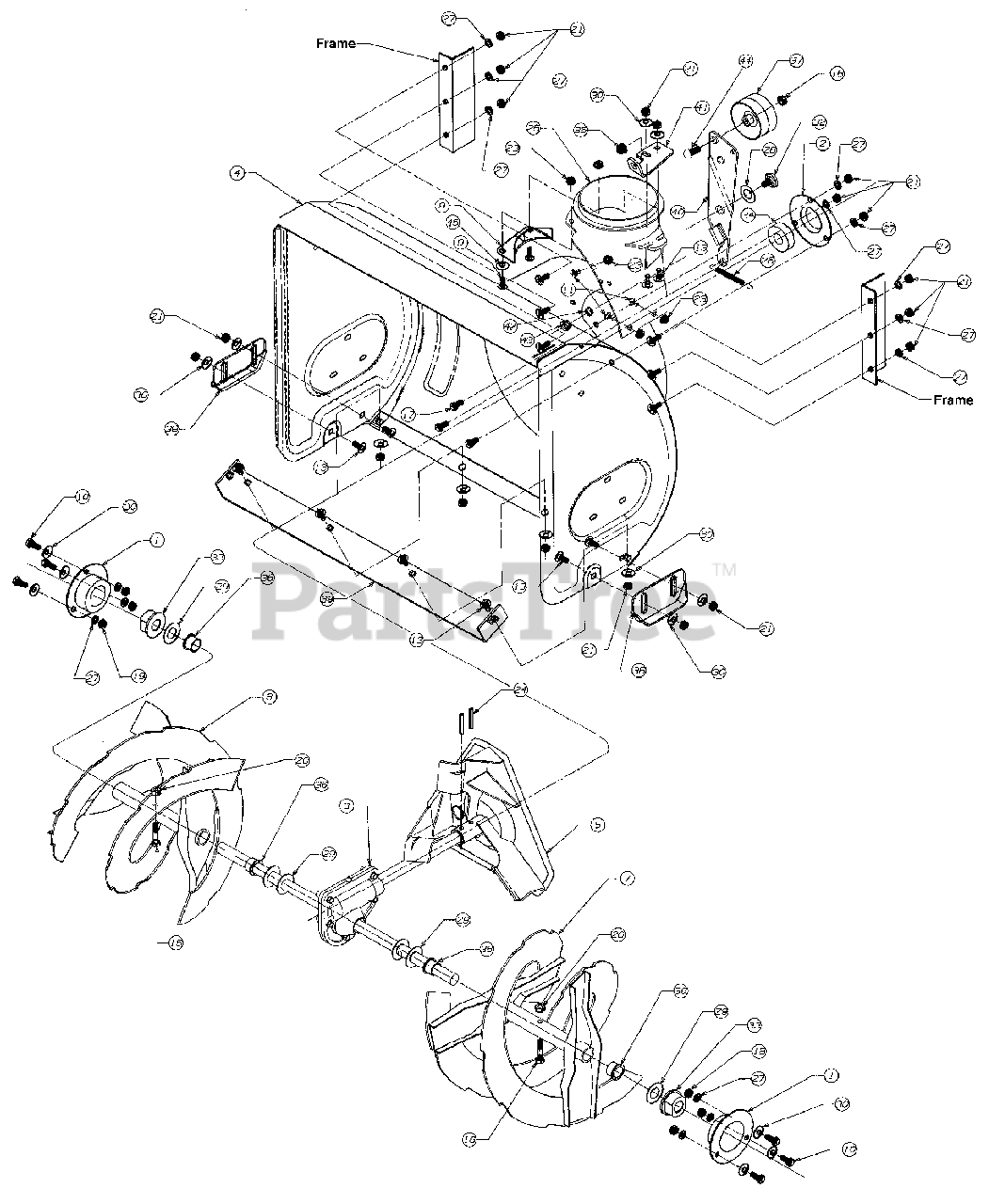

General Assembly Parts Diagram

  • Title

1

UNKNOWN

$

$

Not available

2

MTD 05931

Housing, Bearing
(Superseded to 05931A)

$10.99

$

In Stock, only 2 left!

0

3

MTD 618-0152

Gear Assembly (22")
(Superseded to 918-0413B)

$

$

Not available

4

MTD 684-0052

22" Housing Assembly
(Superseded to 684-0052C)

Variations

MTD 684-0052-0662

HOUSING ASM-22" - OYSTER GRAY (0662)

$

$

Not available

$472.99

$

Usually ships in 3-6 days

0

5

MTD 684-0065

Impeller Assembly
(Superseded to 984-0065-0637)

Variations

MTD 684-0065-0662

Impeller, 3-Blade 12" - OYSTER GRAY (0662)

$90.99

$

In Stock, only 2 left!

0

MTD 684-0065-0665

Impeller, 3-Blade 12" - YARDMAN GREEN (0665)

$90.99

$

In Stock, only 2 left!

0

$90.99

$

In Stock, only 2 left!

0

6

MTD 605-5252

Spiral, 22" R.H.
(Superseded to 684-04178-0637)

Variations

MTD 605-5252-0662

Spiral Assembly, RH 22" - OYSTER GRAY (0662)

$170.99

$

In Stock, only 1 left!

0

$170.99

$

In Stock, only 1 left!

0

7

MTD 605-5253

Spiral, 22" L.H.
(Superseded to 684-04179-0637)

Variations

MTD 605-5253-0662

Spiral Assembly, LH 22" - OYSTER GRAY (0662)

$

$

Not available

$

$

8

MTD 705-5226

Reinforcement, Chute

Variations

MTD 705-5226-0637

Chute Reinforcement - POWDER BLACK (0637)

$10.99

$

In Stock, Qty 7

0

MTD 705-5226-0638

Chute Reinforcement - MTD/TROY-BILT RED (0638)

$10.99

$

In Stock, Qty 7

0

$9.99

$

Usually ships in 3-6 days

0

9

MTD 710-0134

Bolt, Carriage

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-0604

Screw, Hex
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-0134

Screw, Carriage

$4.49

$

In Stock, Qty 20+

0

13

MTD 710-0451

Screw, Carriage

$4.49

$

In Stock, Qty 20+

0

16

MTD 710-0890A

Bolt, Shear

$1.99

$

In Stock, Qty 20+

0

17

UNKNOWN

$

$

Not available

18

MTD 712-0116

Hex Lock Nut

$4.99

$

In Stock, Qty 7

0

19

UNKNOWN

$

$

Not available

20

MTD 712-0429

Nut, Hex Lock

$4.49

$

In Stock, Qty 20+

0

21

MTD 712-3010

Nut, Hex

$4.49

$

In Stock, Qty 20+

0

23

MTD 712-0324

Nut, Lock, Hex, Flanged

$3.99

$

In Stock, Qty 20+

0

24

MTD 715-0114

Spring Pin

$9.49

$

In Stock, Qty 7

0

25

MTD 731-1379

Adapter, Chute
(Superseded to 731-1379D)

$65.99

$

In Stock, only 1 left!

0

26

UNKNOWN

$

$

Not available

27

MTD 736-0119

Lock Washer
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

28

MTD 736-0174

Washer, Flat

$6.99

$

In Stock, only 2 left!

0

29

MTD 736-0188

Washer, Flat, .76 I.D. x 1.49 O.D. x .06

$4.49

$

In Stock, Qty 20+

0

30

MTD 736-0242

Washer, Bell

$4.49

$

In Stock, Qty 20+

0

32

MTD 738-0281

Screw, Shoulder

$10.99

$

In Stock, only 1 left!

0

33

MTD 741-0245

Bearing, Flange
(Superseded to 941-0245)

$9.99

$

In Stock, Qty 20+

0

34

MTD 741-0309

Bearing, Ball
(Superseded to 941-0309)

$74.99

$

In Stock, Qty 6

0

35

MTD 741-0475

Bushing, Plastic
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

36

MTD 741-0493A

Bushing, Flange
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

37

MTD 756-0178

Idler, Flat

$20.99

$

In Stock, only 4 left!

0

38

MTD 784-5580

Shoe, Slide

Variations

MTD 784-5580-0637

Snow Slide Shoe, Black - POWDER BLACK (0637)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0638

Snow Slide Shoe, Black - MTD/TROY-BILT RED (0638)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0662

Snow Slide Shoe, Black - OYSTER GRAY (0662)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0665

Snow Slide Shoe, Black - YARDMAN GREEN (0665)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0688

Snow Slide Shoe, Black - SPRING GREEN (0688)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0721

Snow Skid Shoe - SEARS RED (0721)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-4044

Snow Skid Shoe - CRAFTSMAN RED (4044)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0691

Snow Slide Shoe, Black - BLACK JACK (0691)

$23.99

$

In Stock, Qty 7

0

MTD 784-5580-0729

Snow Skid Shoe - STORM GRAY (0729)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-4043

Snow Skid Shoe - CRAFTSMAN METALLIC GRAY (4043)

$23.99

$

In Stock, Qty 20+

0

$23.99

$

In Stock, Qty 20+

0

39

MTD 784-5576

22" Shave Plate
(Superseded to 790-00117-0637)

Variations

MTD 784-5576-0637

Shave Plate, 22" Black - POWDER BLACK (0637)

$30.99

$

In Stock, Qty 20+

0

$30.99

$

In Stock, Qty 20+

0

40

MTD 784-5632

Arm, Auger Idler
(Superseded to 984-0064-0637)

Variations

MTD 784-5632-0637

ARM ASSY-IDLER - POWDER BLACK (0637)

$32.99

$

In Stock, only 3 left!

0

$32.99

$

In Stock, only 3 left!

0

41

MTD 784-5647

Bracket, Chute Crank
(Superseded to 784-5647-0637)

Variations

MTD 784-5647-0637

Chute Crank Bracket, Black - POWDER BLACK (0637)

$14.99

$

In Stock, Qty 8

0

$14.99

$

In Stock, Qty 8

0

42

MTD 736-0169

Lock Washer

$3.99

$

In Stock, Qty 20+

0

43

MTD 712-0798

Hex Nut

$4.49

$

In Stock, only 2 left!

0

44

MTD 710-0459

Screw, Hex Cap
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 10

0

45

UNKNOWN

$

$

Not available
